Sucker Car Radio Antenna Dual Band Qual Band GSM Sucker Antenna
Car GSM Antenna Dual Band GSM Sucker Antenna 1. Overview The Delin Comm antenna is made of high-quality alloy. It has beautiful appearance, convenient installation, wide frequency coverage, good performance, stable receiving, anti-salt fog, corrosion resistance, strong anti-interference and so on......
Send Inquiry
Product Description

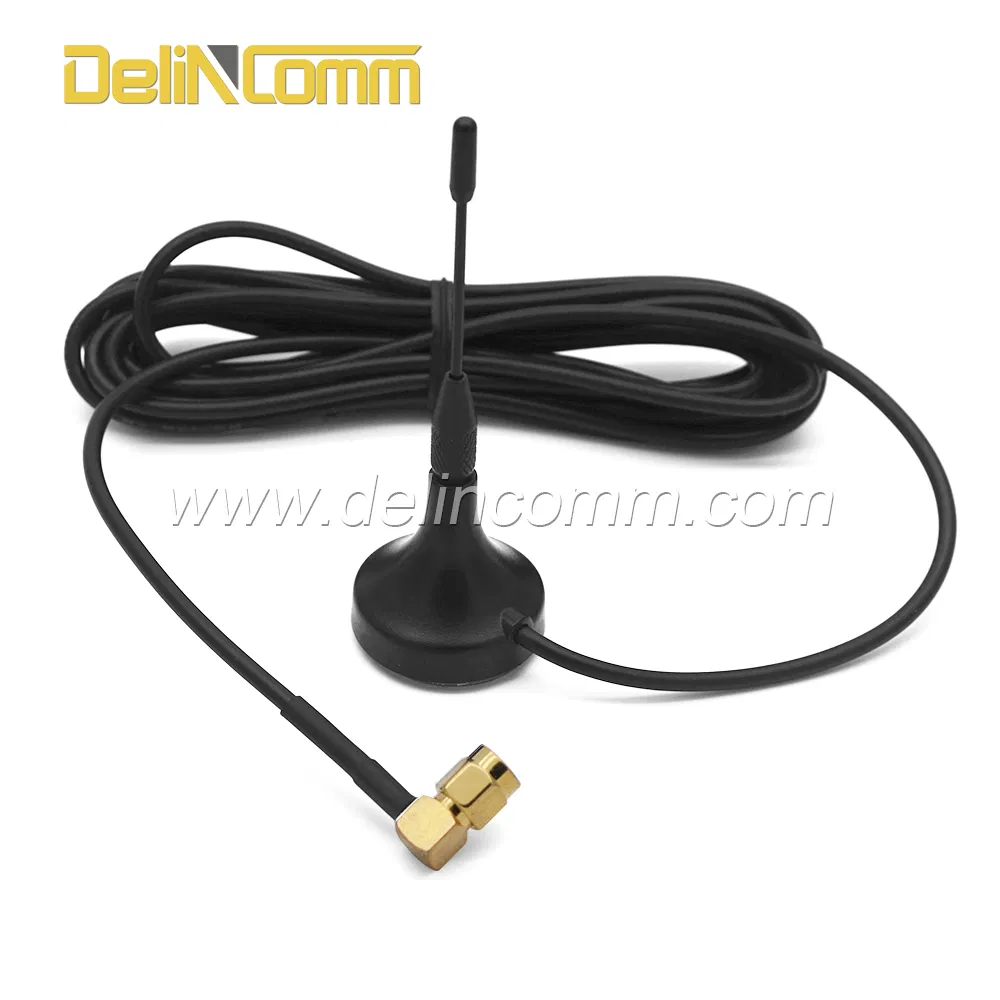

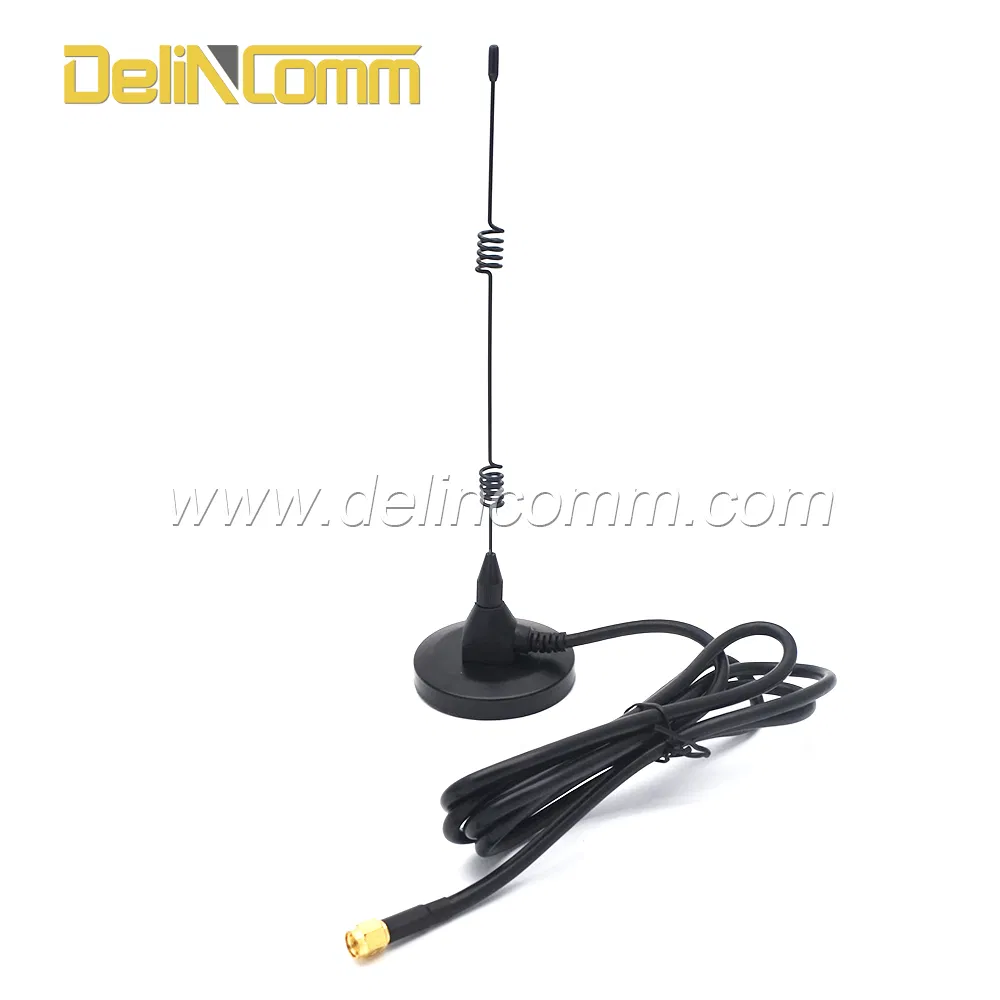

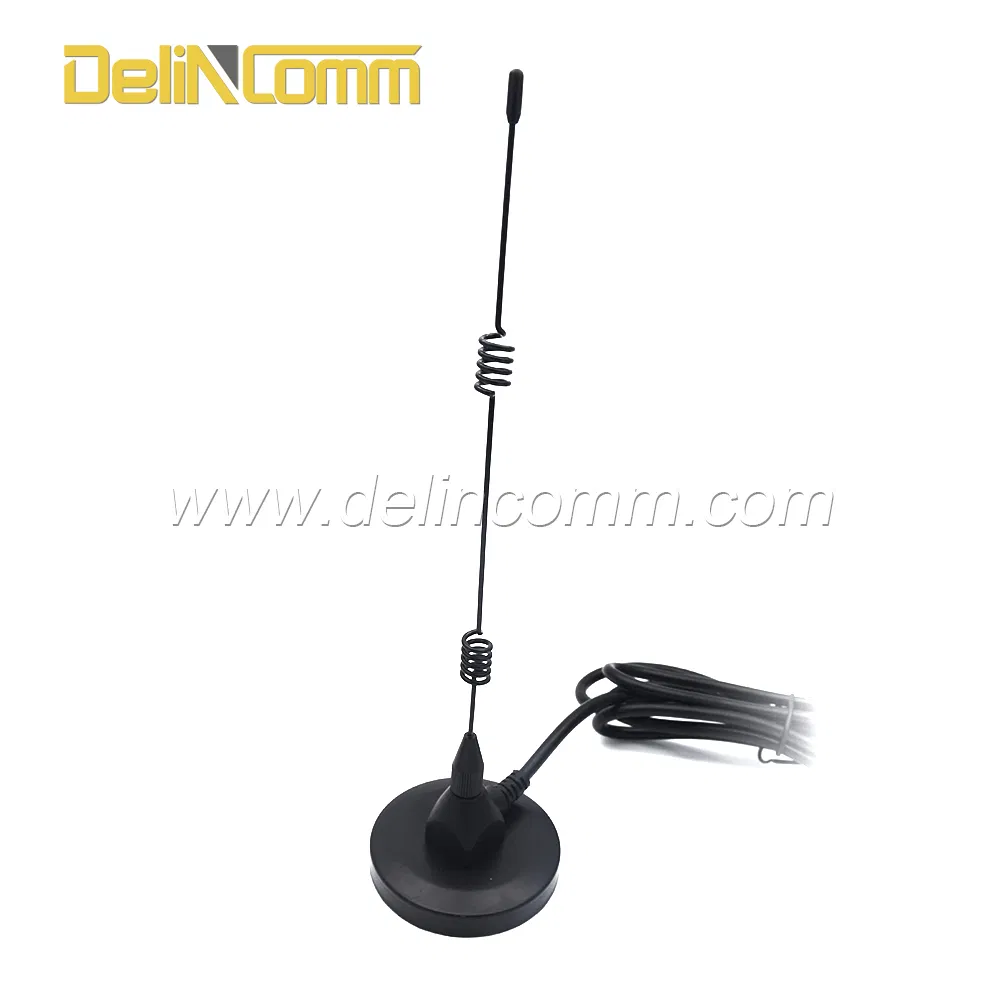

Car GSM Antenna Dual Band GSM Sucker Antenna
1. Overview
The Delin Comm antenna is made of high-quality alloy. It has beautiful appearance, convenient installation, wide frequency coverage, good performance, stable receiving, anti-salt fog, corrosion resistance, strong anti-interference and so on characteristics. Before leaving the factory, all of them were strictly examined by the imported network analyzer. There are magnets at the bottom of the wire, which can be adsorbed on the car, easy to use.1. Overview
2. Technical parameters
| Design Specifications | Typical | Units |
| Antenna Form | External Sucker Antenna | |
| Working Frequency | 824~960 1710-1990 | MHz |
| Gain | ≤2.5dBi | |
| V.S.W.R. | ≤2.5 | dB |
| Polarization | Vertical | |
| Impedance | 50Ω | |
| Interface | SMA gold-plated straight head RG174-2 meters | |
| Overall Dimensions | 28x200mm | mm |
| Weight | 41g | g |
| Operation Temp. | -40ºC~80ºC | ºC |
| Storing Temp. | -45ºC~80ºC | ºC |
