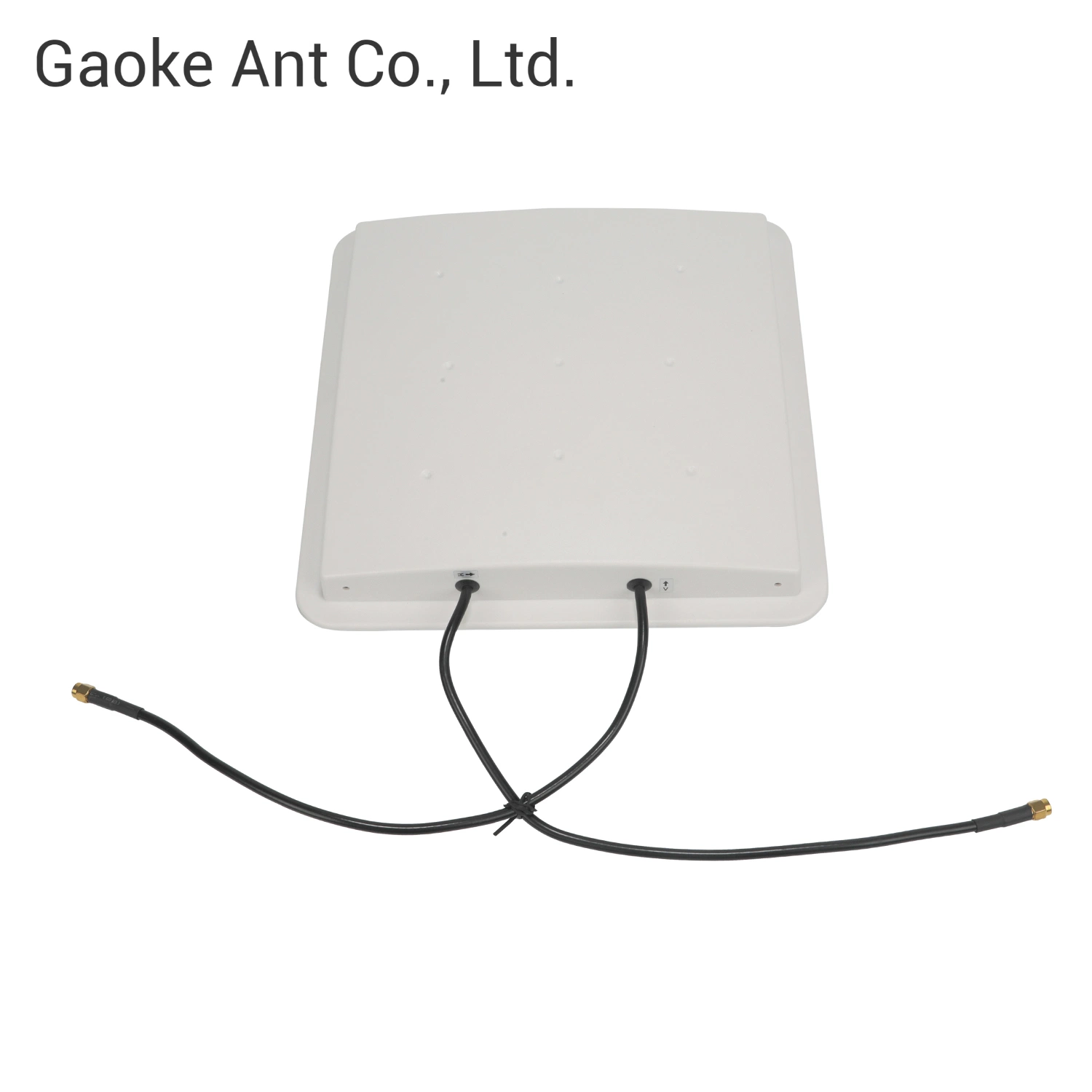

1710 -2690MHz Dual Polarized Flat Panel Antenna
Electrical SpecificationsFreqRange1710-2690MHzGain13±1dBiHorizontal Beamwidth35±8ºVertical Beamwidth30±5ºF/B Ratio≥24dBVSWR≤1.8Impedance50ΩPolarization±45ºMax. Power100WConnector2*SMALightning ProtectionDC......
Send Inquiry
Product Description
| Electrical Specifications | |
| FreqRange | 1710-2690MHz |
| Gain | 13±1dBi |
| Horizontal Beamwidth | 35±8º |
| Vertical Beamwidth | 30±5º |
| F/B Ratio | ≥24dB |
| VSWR | ≤1.8 |
| Impedance | 50Ω |
| Polarization | ±45º |
| Max. Power | 100W |
| Connector | 2*SMA |
| Lightning Protection | DC ground |
| Mechanical Specifications | |
| Dimension | 260x260x35mm |
| Weight | ≤1.5kg |
| Rated Wind Velocity | 36.9m/s |
| Operational Humidity | < 95% |
| Operating temperature | -40~55ºC |
| Radome material | ABS(white) |
