High Quality 1710 to 1880MHz GSM1800/Phs High-Gain Yagi Antenna

Features:
High-gain
Aluminum-alloy frame
Full day for working
Optimized dimensions
Optional installation H or V
Applications:
GSM1800/PHS system
Repeater station system
Long distance telecommunication
Electric specifications:
Frequency range: 1710 to 1880MHz
Bandwidth: 170MHz
Gain: 15dBi
Element: 13
Beam width:
H: 40°
V: 37°
F/B ratio: ≥ 16dB
VSWR: ≤ 1.5
Input impedance: 50Ω
Polarization: Horizontal or vertical
Maximum power: 100
Lightning protection: DC ground
Connector model: SMA female or others

Mechanical specifications:
Dimensions: 570 x 90 x 44mm
Cable length: 0.3m
Antenna weight: 0.33kg
Working temperature: -40 to 60° C
Rated wind velocity: 60m/s
Clamp: U
Pole diameter: 40 to Φ 50mm

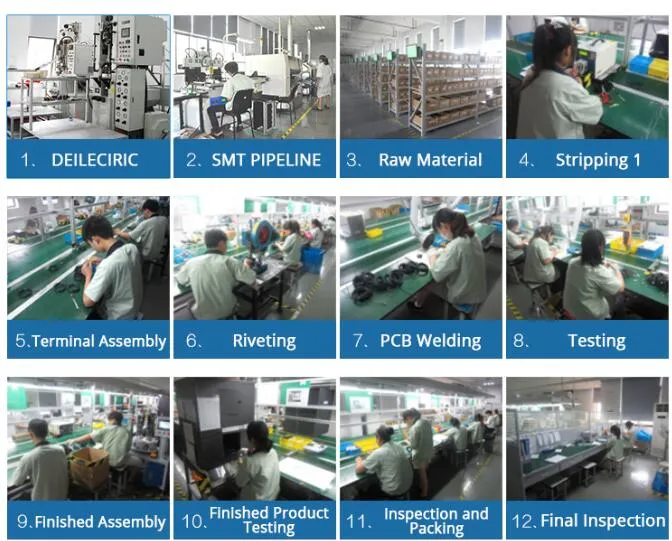

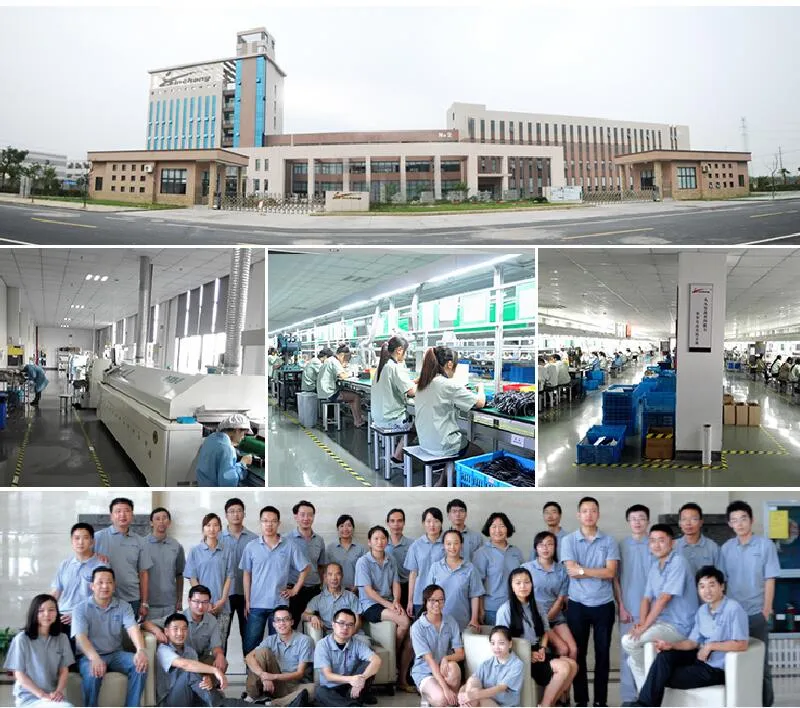

Jiashan Jinchang Electronics Co., Ltd. is a national high-tech enterprise, specialized in high-frequency GPS/GLONASS/GSM/WIFI antenna manufacturing, engaged in antenna industry for 28 years. The products including GPS/GLONASS antenna, 2G/3G/4G GSM antenna, WIFI/Bluetooth antenna, GPS active antenna, GPS Car antenna, won National Award for New Product, Technology Innovation Fund and National New Product Award. Currently Jinchang have 13 patents, passed TS16949, ISO9001 certification. The antennas have CE and FCC certification, comply with ROHS through SGS test. Jinchang have HP network tester, noise-figure meters, high-frequency signal generator, anechoic chamber, as well as other antenna testing equipment and facilities. Eight production lines can produce all kinds of antenna 30000pcs per day. 70% products exported to Europe and America. Nissan, Nokia, Motorola, Coca-Cola, Volkswagen, Audi, Datang, SEG and other enterprises have bulk used Jinchang's products.
