Small Cells Manufacturer 698-960/ 1710 -2700MHz High Gain Lpda Antenna for mobile Signal Booster
Products Description698-960/1710-2700MHz High Gain LPDA Antenna Log Periodic Dipole Array (LPDA) antennas are directional, active broadband antennas that are the ideal solution for interference tracking, site surveying, and most general RF and EMC analysis applications, due to their unique dipole el......
Send Inquiry
Product Description
| Products Description |

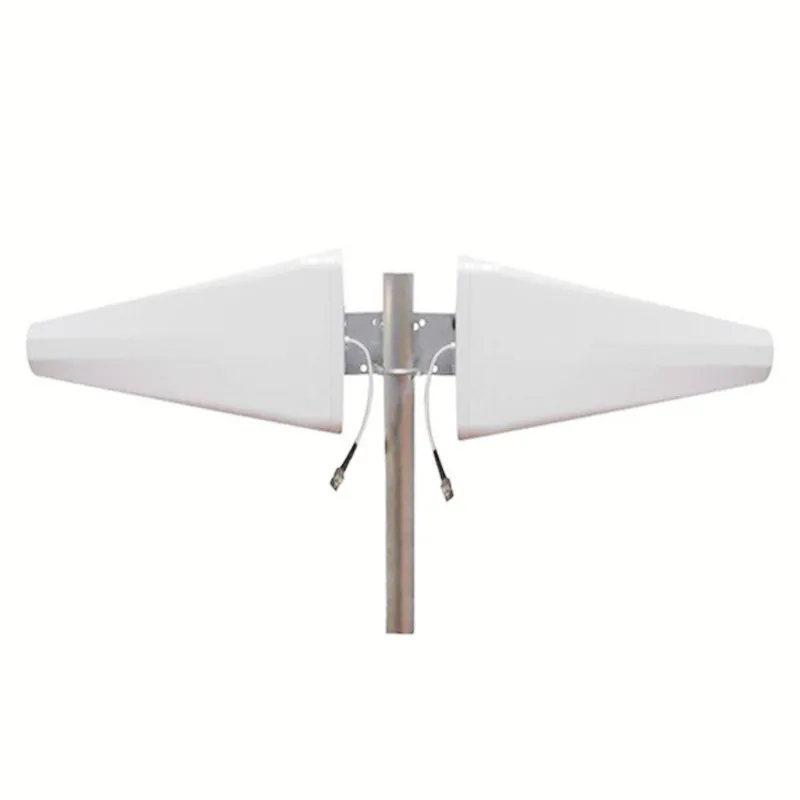

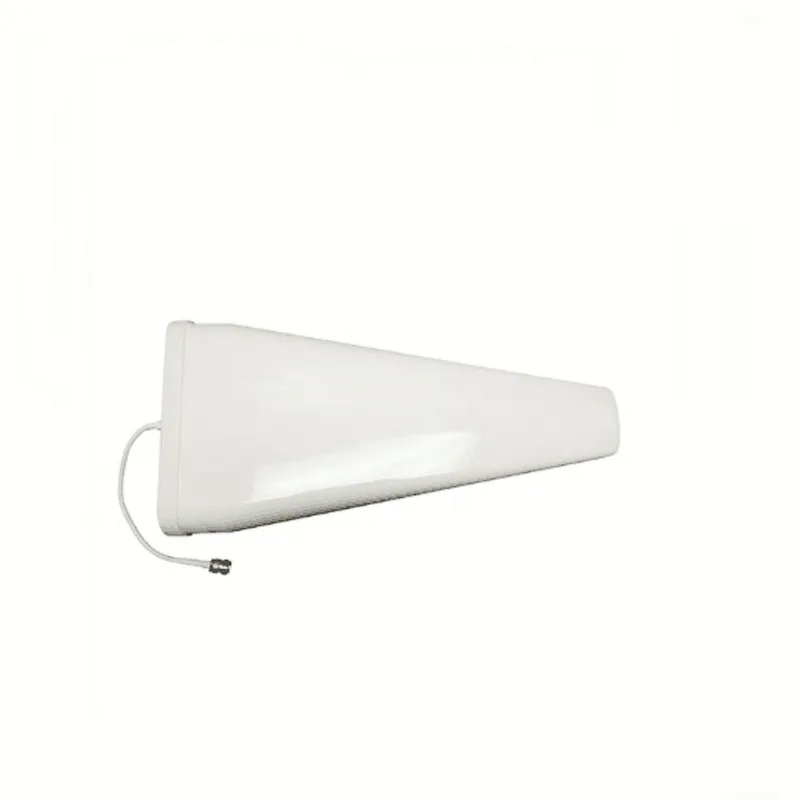

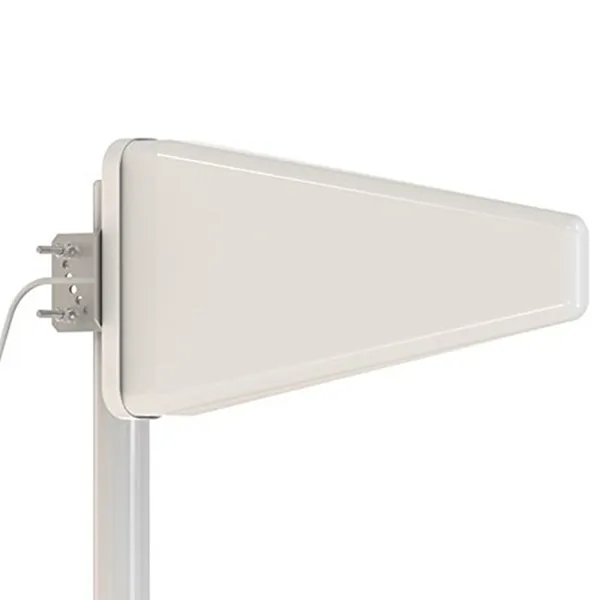

698-960/1710-2700MHz High Gain LPDA Antenna
Log Periodic Dipole Array (LPDA) antennas are directional, active broadband antennas that are the ideal solution for interference tracking, site surveying, and most general RF and EMC analysis applications, due to their unique dipole elements positioned along the antenna axis in a triangular shape.
With many varieties and names (LP Antenna, LPDA, LP Array Antennas, and Log Periodic Aerial) and minor functionality and design variations amongst each type, these antennas are designed with optimization in specific frequency ranges, and are capable of functioning within the high frequency - extremely high frequency ranges.
Log Periodic Dipole Array (LPDA) antennas are directional, active broadband antennas that are the ideal solution for interference tracking, site surveying, and most general RF and EMC analysis applications, due to their unique dipole elements positioned along the antenna axis in a triangular shape.
With many varieties and names (LP Antenna, LPDA, LP Array Antennas, and Log Periodic Aerial) and minor functionality and design variations amongst each type, these antennas are designed with optimization in specific frequency ranges, and are capable of functioning within the high frequency - extremely high frequency ranges.
| Electrical & Mechanical Specifications |
| Electrical Specifications | ||
| Frequency Range | 698-960 MHz | 1710-2700 MHz |
| Gain | 11dBi | |
| VSWR | ≤2.0 | ≤1.5 |
| Polarization | Vertical | |
| Horizontal Beamwidth | 70° | |
| Vertical Beamwidth | 50° | |
| Lightning protection | DC Ground | |
| Input Impedance | 50 Ω | |
| Max.Power | 50 W | |
| Mechanical Specifications | ||
| Connector | N-Female | |
| Dimensions | 405×210×65 mm | |
| Weight | 1.1 0kg | |
| Reflector Material | Aluminum | |
| Radome Material/color | ABS/white | |
| Operating Temperature | -40°C to +60 °C | |
| Mounting pole | Ø38-Ø52 mm | |
| Recommended Product |
5g Indoor 698-2700MHz 380-520MHz High Gain UHF Outdoor 698-960/1710-4000MHz High Gain
N Female Omni Ceiling Mount Antenna Panel RFID Antenna for Cellular Base Station Omni Ceiling Antenna for Indoor Signal Booster
| About Us |
Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.
| Main Products |
| Application |
| Packing Details |
| FAQ |
Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.
