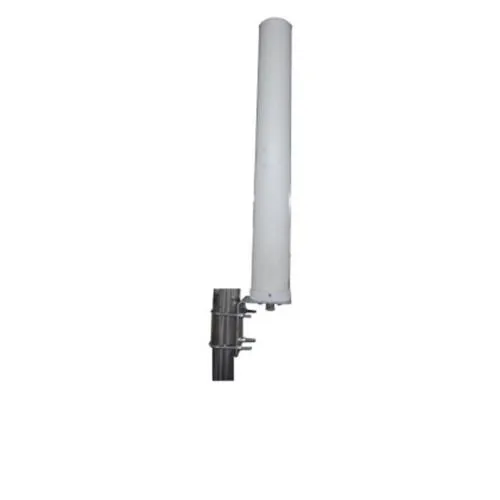

2g/3G/WLAN Fiberglass Antenna with 806~960/1710~2500MHz
Electrical SpecificationsP/NGL0825R6Frequency-MHz806~9601710~2500Gain-dBi57Beam width-°E:40E:20VSWR≤1.5≤1.8PolarizationVerticalInput Impedance50ΩMaximum input power50WLightning protectionDC GroundMechanical SpecificationsInput connector typeN-KConnector placeBottomDim......
Send Inquiry
Product Description
| Electrical Specifications | ||
| P/N | GL0825R6 | |
| Frequency-MHz | 806~960 | 1710~2500 |
| Gain-dBi | 5 | 7 |
| Beam width-° | E:40 | E:20 |
| VSWR | ≤1.5 | ≤1.8 |
| Polarization | Vertical | |
| Input Impedance | 50Ω | |
| Maximum input power | 50W | |
| Lightning protection | DC Ground | |
| Mechanical Specifications | ||
| Input connector type | N-K | |
| Connector place | Bottom | |
| Dimensions(mm) | φ 76* 600 | |
| Antenna weight | 0.56kg | |
| Radome material | Fiberglass | |
| Radome color | White | |
| Operating temperature | -40°c~60°c | |
| Rated Wind Velocity | 60 m/s | |
characteristics:
1.Frequency band width, covering 800~2500MHz common system
2.Block design
3.Light weight, small size
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
