Small Cells Manufacturer 800-960/ 1710 -2500MHz Outdoor Sector Panel Antenna for Ibs Das Bts
General Description698-2700MHz Sector Panel Antenna(698-2700MHz, N Female) A sector antenna or "sector panel" is a directional antenna for outdoor applications. They are most often used by base stations and can be seen, hung on cell phone towers. They are long, Narrow antennas with high ga......
Send Inquiry
Product Description
General Description
A sector antenna or "sector panel" is a directional antenna for outdoor applications. They are most often used by base stations and can be seen, hung on cell phone towers. They are long, Narrow antennas with high gains. Sector panel antennas consist of an array of dipoles placed in front of a shaped reflector. The size and shape of the reflector determines the performance of these antennas. The reflector is usually flat with some ridges or featires along the edges.

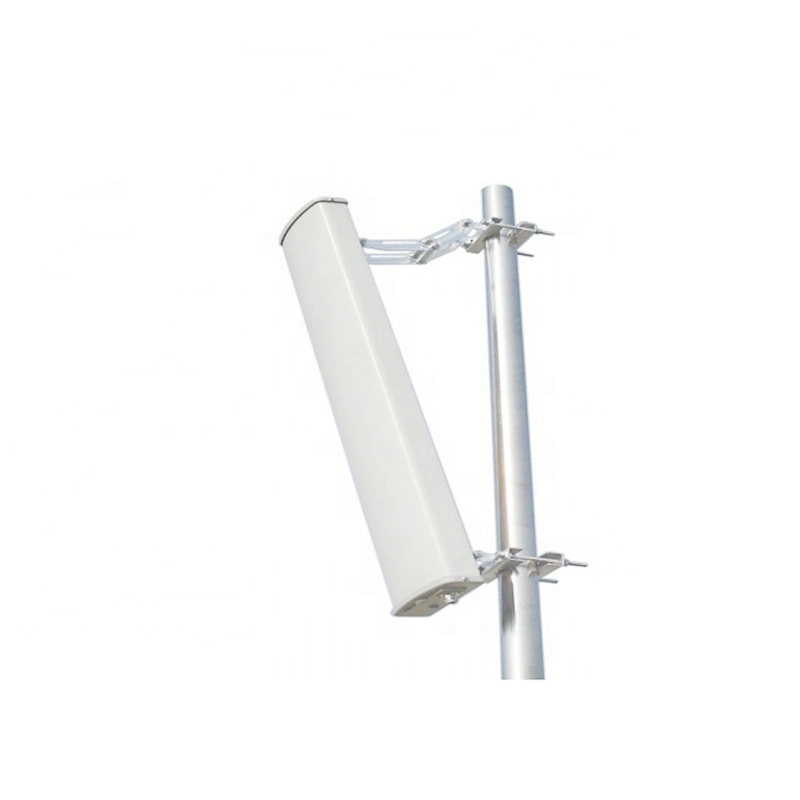

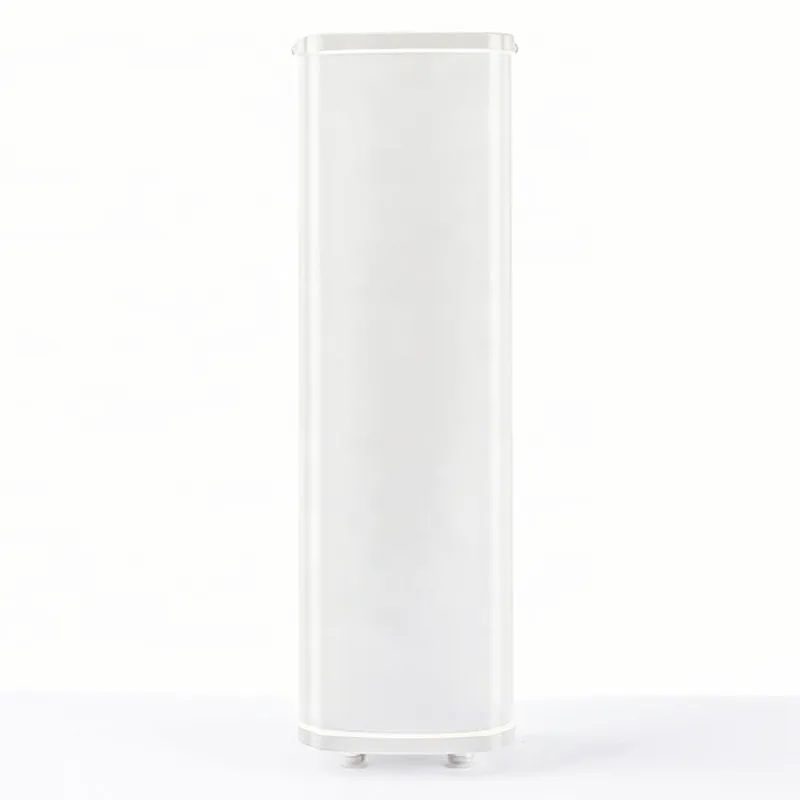

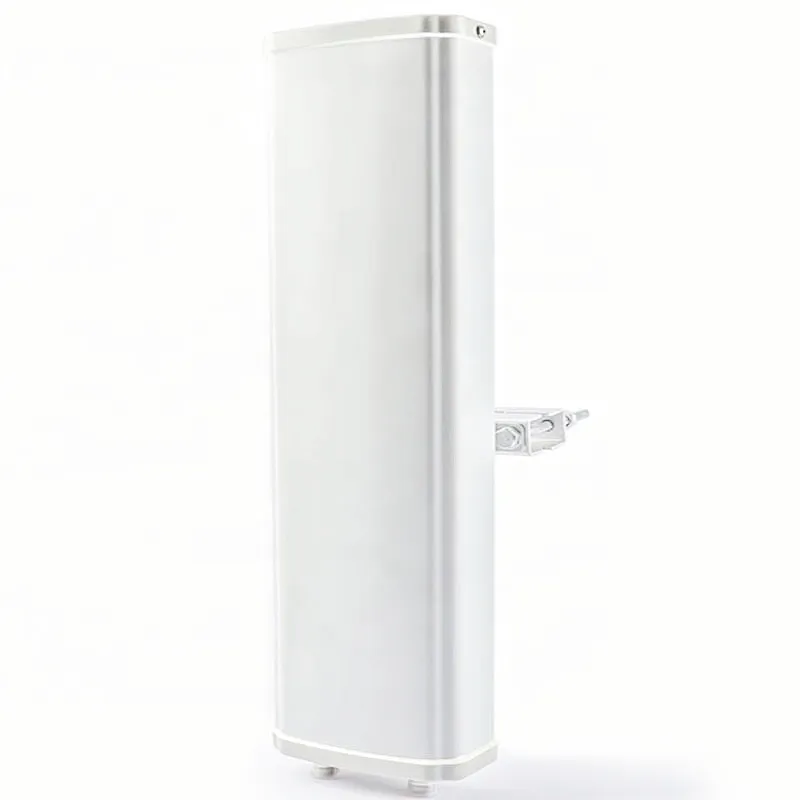

Topwave Telecom model TPW-825-12OSPA, a 800-960/1710-2500MHz LTE Outdoor Sector Panel Antenna, which widely used in LTE, 5G base station. It is a mature product that sold to all over the world, contact us to get more details!!!
Model No.
TPW-825-12OSPA
Electrical & Mechanical Specifications
Electrical Specifications | ||
Frequency Range (MHz) | 800-960 | 1710-2500 |
Gain (dBi) | 12 | 13 |
VSWR | ≤1.5 | ≤1.5 |
Polarization | Vertical | |
Horizontal Beamwidth | 90° | |
Vertical Beamwidth | 15° | |
Front to Back Ratio-dB | ≥25dB | |
Input Impedance | 50 Ω | |
Max. Input Power | 100 W | |
Lightning Protection | DC Ground | |
Mechanical Specifications | ||
Connector | N Female | |
Dimensions | 650x280x130 mm | |
Weight | 7.00 kg (approx) | |
Reflector Material | Aluminum | |
Radome Material | ABS (UV Stabilized) | |
Operating Temperature | -40°C to +65°C | |
Rated Wind Velocity-m/s | 60 | |
Recommended Products
5g Indoor 698-2700MHz 380-520MHz High Gain UHF Outdoor 698-960/1710-4000MHz High Gain
N Female Omni Ceiling Mount Antenna Panel RFID Antenna for Cellular Base Station Omni Ceiling Antenna for Indoor Signal Booster
About us
Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.
Main Products
Application
Packing Details
FAQ
Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.
