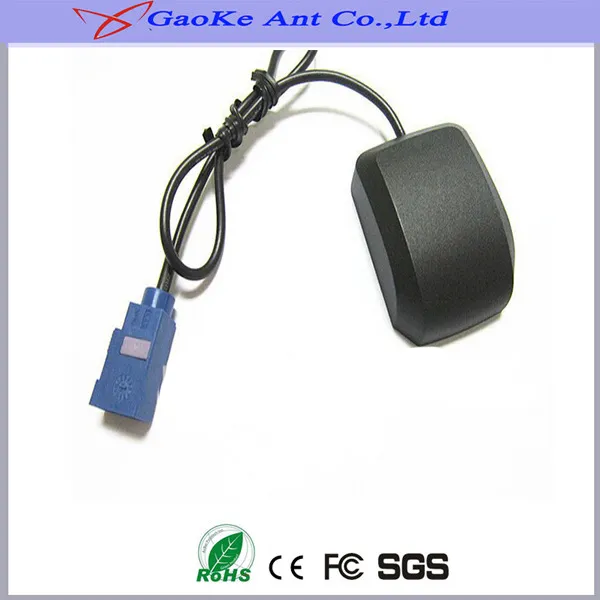

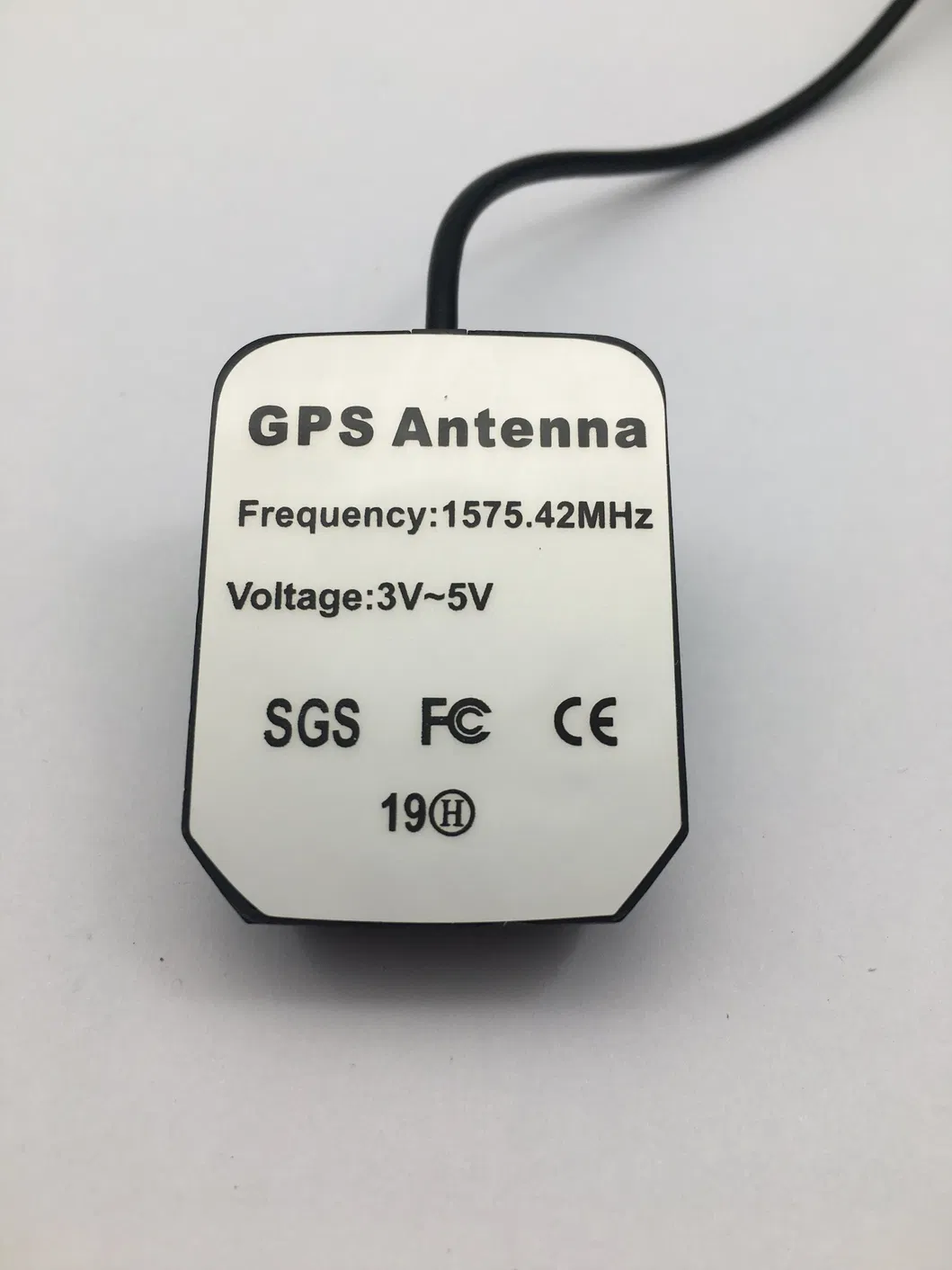

Size 48X37X17mm GPS External Active Antenna with Fakra-C Connector, Magnetic, 1575.42MHz GPS Antenna
Antenna technical parametersDesign SpecificationsTypicalUnitsAntenna formActive external antenna working Frequency1575.42±2MHzMHzGain≤3.0dBidBiAntenna efficiency55% VSWR≤2.0 PloriaztionRC Pol Axial Ratio≤3.0 Radiation patternDIR impedance50ΩΩPower ......
Send Inquiry
Product Description
Antenna technical parameters
| Design Specifications | Typical | Units |
| Antenna form | Active external antenna | |
| working Frequency | 1575.42±2MHz | MHz |
| Gain | ≤3.0dBi | dBi |
| Antenna efficiency | 55% | |
| VSWR | ≤2.0 | |
| Ploriaztion | RC Pol | |
| Axial Ratio | ≤3.0 | |
| Radiation pattern | DIR | |
| impedance | 50Ω | Ω |
| Power handling | 33dbm | dbm |
| Interface | FAKRA-C RG174-3M | |
| Overal dimensions | 48x37x17mm | mm |
| Weight | ≤120g | g |
| Operatin Temp | -40ºC~85ºC | ºC |
| Storing Temp | 15ºC~30ºC | º |
