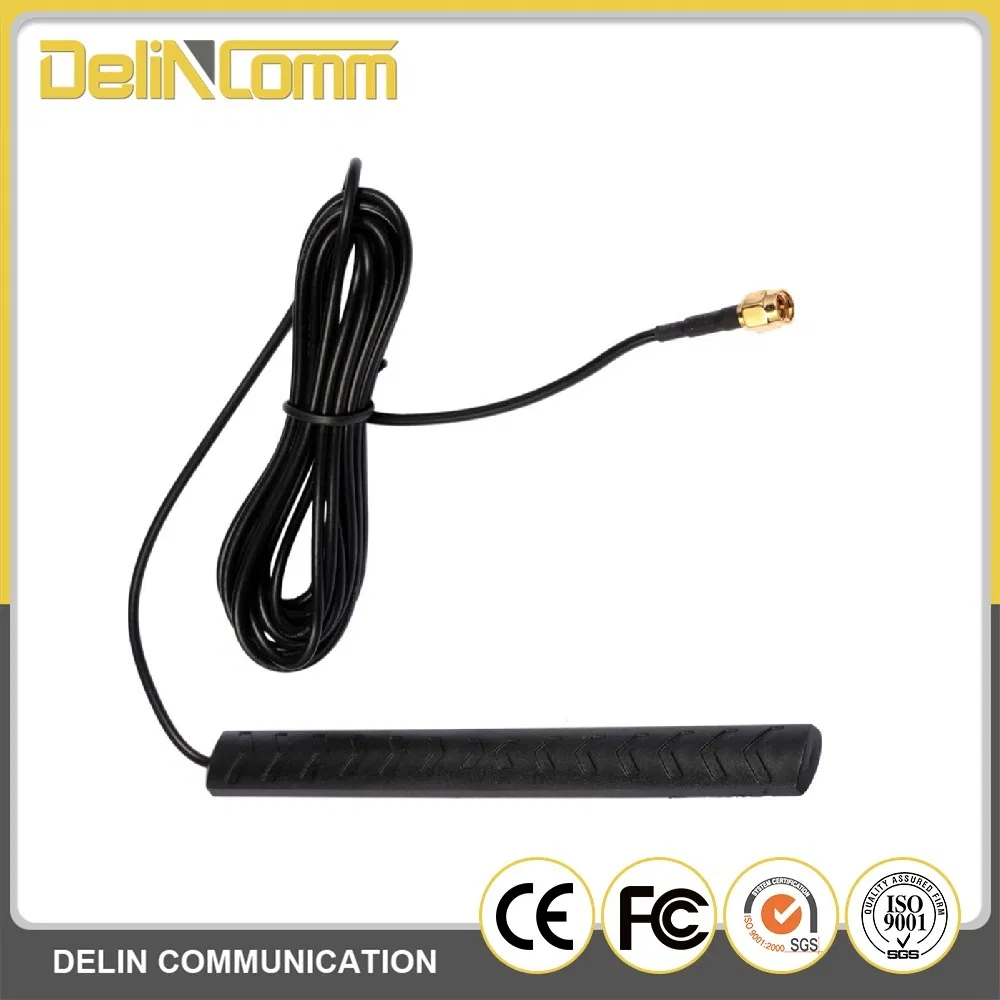

Rubber 4G Lte Antenna 4G Antenna with SMA Connector
Rubber 4G LTE Antenna 4G Antenna with SMA Connector No.ItemSpecification1Range of Receiving Frequency(MHz)824~960/1710~2170/ 2300~2400 /2500~26902V.S.W.R(in Center Frequency) ≤2.03Gain (Zenith)(dBi typ) >3.04Max-Input power(W)505Input Impedance(Ω)506Polarization TypeV Pol7Cable T......
Send Inquiry
Product Description
Rubber 4G LTE Antenna 4G Antenna with SMA Connector
| No. | Item | Specification |
| 1 | Range of Receiving Frequency(MHz) | 824~960/1710~2170/ 2300~2400 /2500~2690 |
| 2 | V.S.W.R(in Center Frequency) | ≤2.0 |
| 3 | Gain (Zenith)(dBi typ) | >3.0 |
| 4 | Max-Input power(W) | 50 |
| 5 | Input Impedance(Ω) | 50 |
| 6 | Polarization Type | V Pol |
| 7 | Cable Type | RG-174 |
| 8 | Connector | SMA/ Other |
| 9 | Storage Temperature | -45ºC to +85ºC |
| 10 | Operating Temperature | -40ºC to +85ºC |
