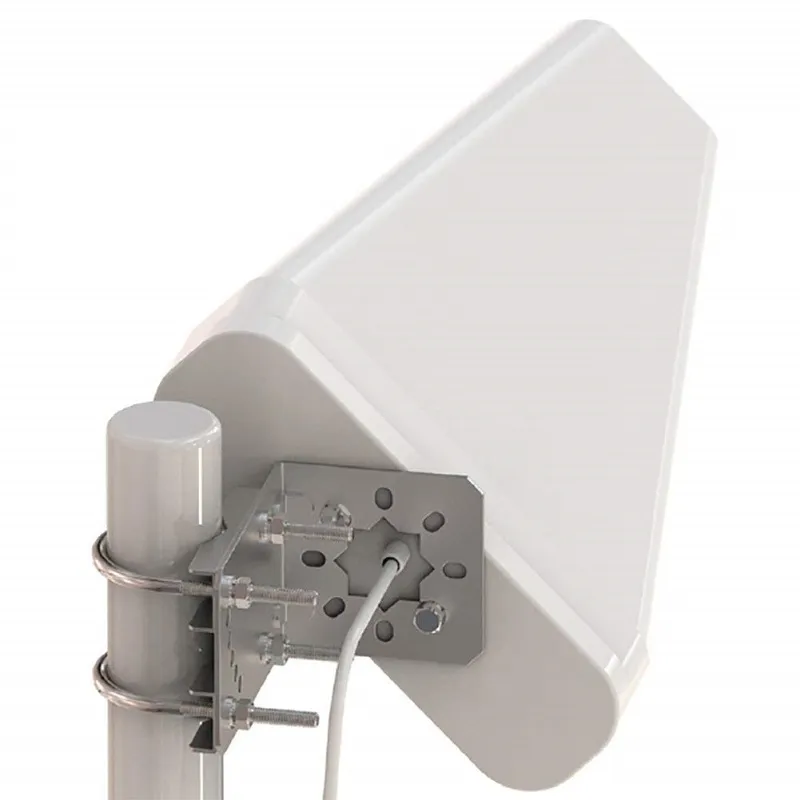

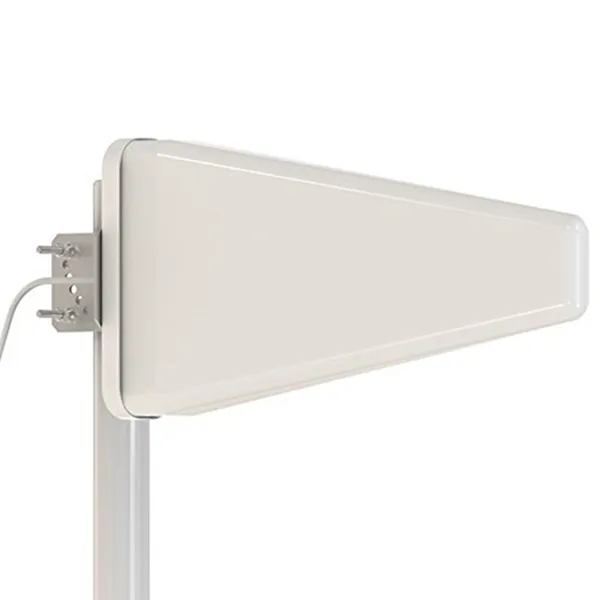

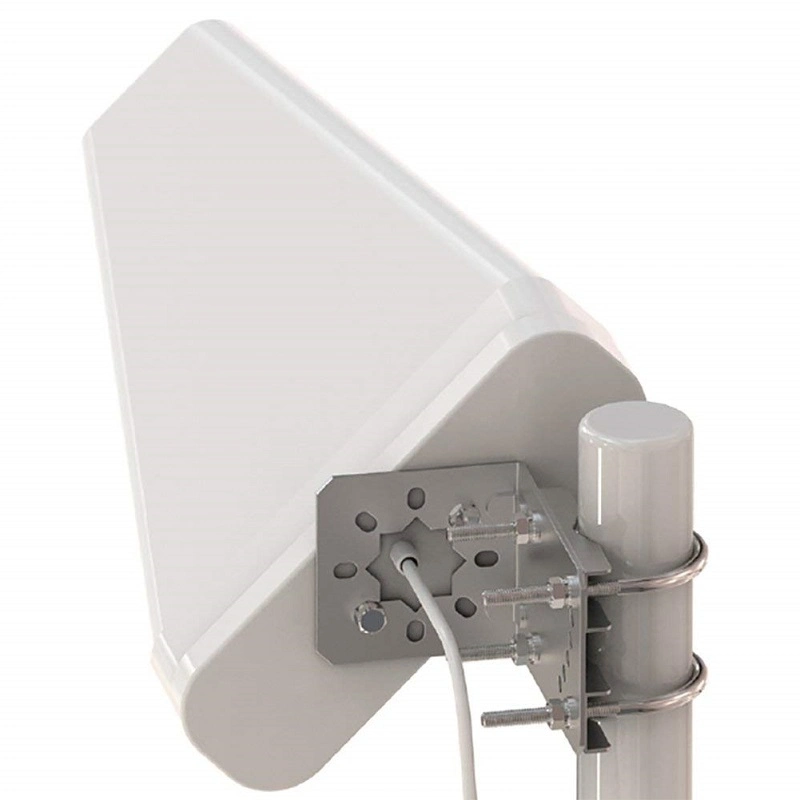

Outdoor 4G Antenna 860-928/1170-1381MHz Long Range Lpda High Gain with N Female Connector
Products Description860-928/1170-1381MHz Log Periodic Antenna A log-periodic antenna (LP), also known as a log-periodic array or log-periodic aerial, is a multi-element, directional antenna designed to operate over a wide band of frequencies. Topwave Model TPW-1538-14LPDA-NF, 1570-1620/2400-2500/2......
Send Inquiry
Product Description
| Products Description |
860-928/1170-1381MHz Log Periodic Antenna
A log-periodic antenna (LP), also known as a log-periodic array or log-periodic aerial, is a multi-element, directional antenna designed to operate over a wide band of frequencies.
Topwave Model TPW-1538-14LPDA-NF, 1570-1620/2400-2500/2700-3800MHz Log-Periodic Antenna. It is very mature, and we have the mould, which is the reason why we reduce the cost a lot. Contact us to get more details and free samples!!!
| Electrical & Mechanical Specifications |
| Electrical Specifications | ||
| Model No. | TPW-8140-12LPDA-NF | |
| Frequency Range, MHz | 860-1381MHz | |
| 860-928 | 1170-1381 | |
| Gain, dBi | 12 | 14 |
| VSWR | ≤1.50 | |
| Polarization | Vertical | |
| Horizontal Beamwidth | 50°/40° | |
| Vertical Beamwidth | 65°/50° | |
| F/B Ratio-dB | 18 | |
| Input Impedance | 50 Ω | |
| Max. Input Power | 50 W | |
| Lightning Protection | DC Ground | |
| Mechanical Specifications | ||
| Connector | N Female | |
| Cable Length | 27cm | |
| Dimensions | 450x210x65 mm | |
| Weight | 0.80 kg | |
| Reflector Material | Aluminum | |
| Radome Material | ABS | |
| Operating Temperature | -40°C to +65°C | |
| Mounting | Poles mounting(Ø38-Ø52 mm) | |
| Related Product |
N Female Omni Ceiling Mount Antenna Panel RFID Antenna for Cellular Base Station Omni Ceiling Antenna for Indoor Signal Booster
| About Us |
Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.
| Main Products |
| Application |
| Packing Details |

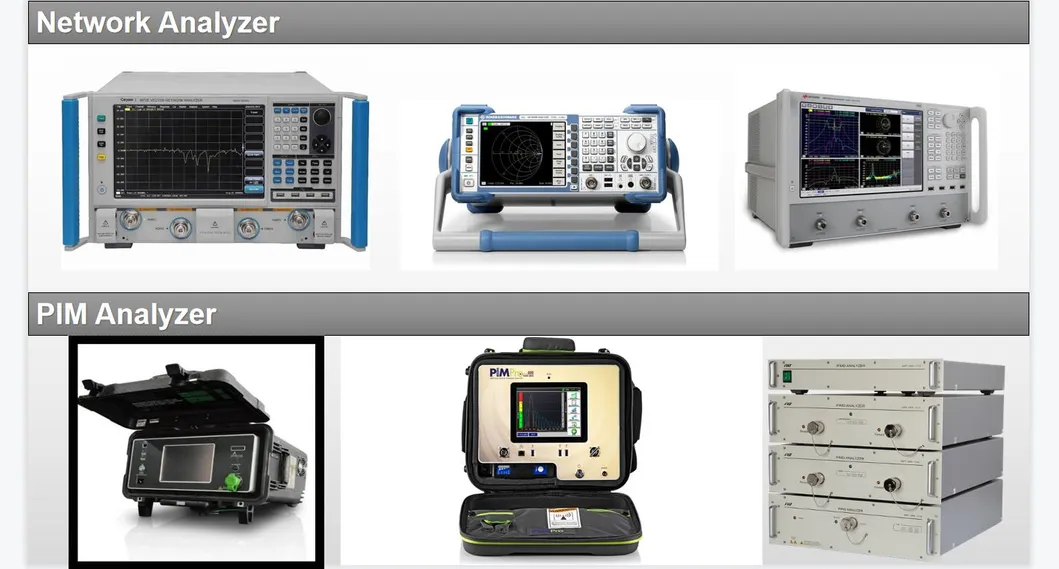

| Testing Equipment |
