Product Description

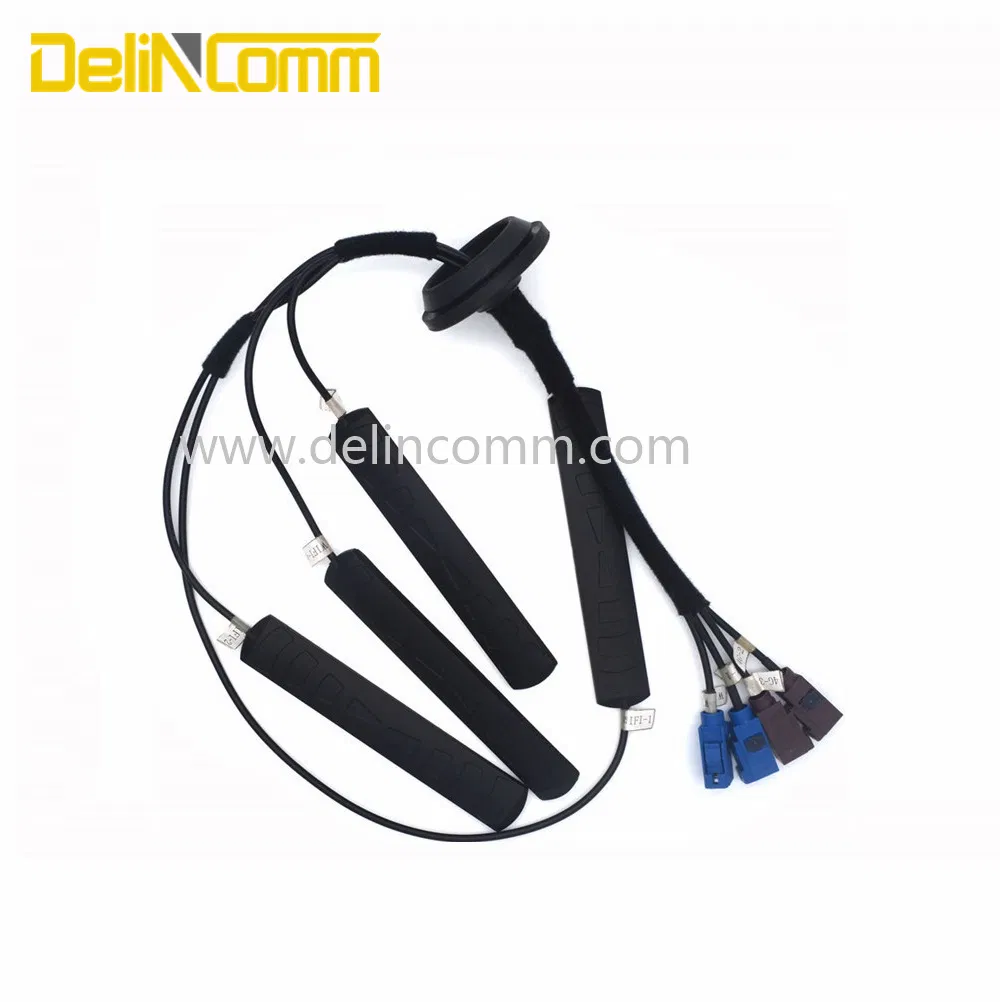

Multi-function Antenna Dual-WiFi Antenna Dual-4G Antenna
1. WIFI Antenna Characteristic
2. 4G Antenna Characteristics
1. WIFI Antenna Characteristic
| NO. | Item | Specifications |
| 1 | Range of Receiving Frequency(MHz) | 2400~2500MHz |
| 2 | V.S.W.R(in Center Frequency) | ≤2.0 |
| 3 | Gain (Zenith)(dBi typ) (with 70mmSquare GND plane) | >2.0 |
| 4 | Radiation Direction | Omnidirectional |
| 5 | Power Capacity(W) | 50 |
| 6 | Polarization | Vertical |
| 7 | Connector | FAKRA Straight head(Blue) |
| 8 | Size(mm) | 120*20*4 |
| 9 | Shell Color | Black |
| 10 | Cable | RG-174,500/260mm |
2. 4G Antenna Characteristics
| NO. | Item | Specifications |
| 1 | Range of Receiving Frequency | 824~960/1710~2170/2300~2620MHz |
| 2 | Antenna Directivity | Class dipole |
| 3 | Gain (Zenith)(dBi typ) | ≤2.0 |
| 4 | V.S.W.R | ≤2.0 |
| 5 | Standard Impedance(Ohm) | 50 |
| 6 | Connector | FAKRA Straight head (Purple) |
| 7 | Maximum input power | 20 |
| 8 | Polarization | Linear polarization |
| 9 | Size | 80*16*3.5mm |
| 10 | Shell Color | Black |
| 11 | Cable | RG-174, 270/150MM |
