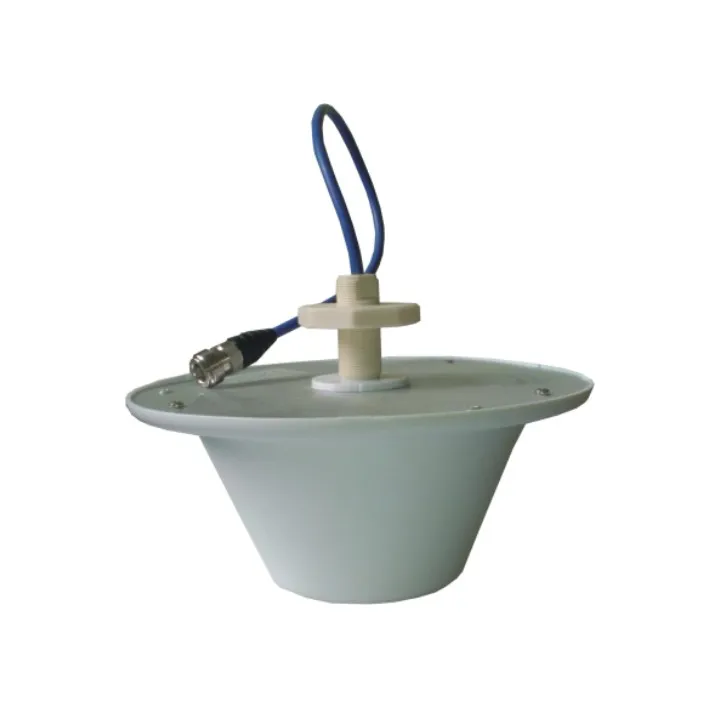

Indoor Omni Antenna
Specifications of Indoor Omni AntennaModel: BT-0101072705360NFWorking Frequency698~960MHz1710~2700MHzGain2 dBi5dBiV.S.W.R.698-806≤2.5806-960/1710-2500≤1.52500-2700≤2.0Input Impedance50ΩPolarizationVerticalIntermodulation IM3≤-150dBcMax. Power50WConnectorN-Female......
Send Inquiry
Product Description
Specifications of Indoor Omni Antenna
Model: BT-0101072705360NF
Model: BT-0101072705360NF
| Working Frequency | 698~960MHz | 1710~2700MHz |
| Gain | 2 dBi | 5dBi |
| V.S.W.R. | 698-806≤2.5 806-960/1710-2500≤1.5 2500-2700≤2.0 | |
| Input Impedance | 50Ω | |
| Polarization | Vertical | |
| Intermodulation IM3 | ≤-150dBc | |
| Max. Power | 50W | |
| Connector | N-Female or Customized | |
| Diameter | Ø170X 72 mm | |
| Connector Place | Bottom | |
| Weight | 0.4 Kg | |
| Operating temperance | -40°C ~60°C | |
| Operating humidity | 5~95% | |
| Mounting Method | Fixed with nut | |
