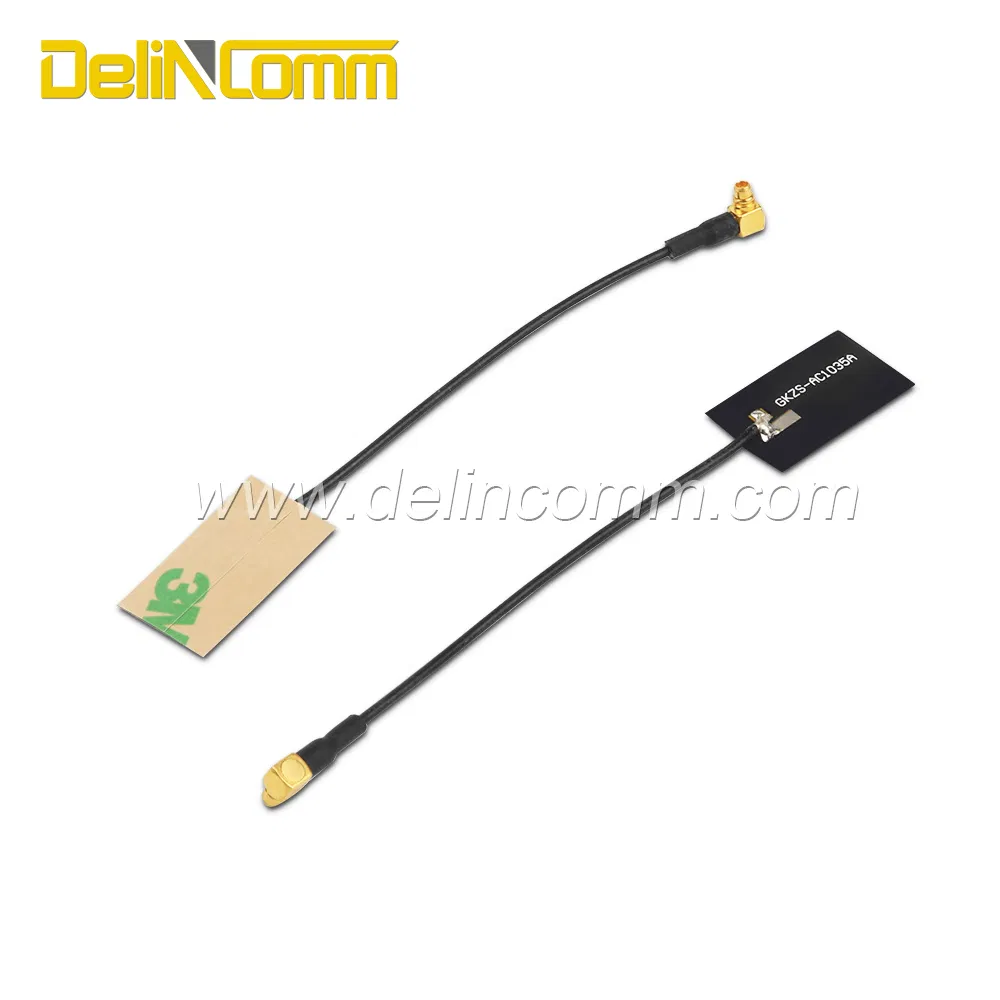

Free Sample WiFi/4G/3G/GPS/GSM Built-in Receiveing Antenna
1 .WIFI Built-in Antenna Features:delicated outlooksmall sizeFull-time jobLow standing wave, anti-interference2 .WIFI Application of Built-in Antenna:Mobile devices such as mobile phones, laptops, netbooks, etc.3 .WIFI Internal Antenna Performance Parameters:Electrical Specifications Mechanical prop......
Send Inquiry
Product Description
1 .WIFI Built-in Antenna Features:
- delicated outlook
- small size
- Full-time job
- Low standing wave, anti-interference
Mobile devices such as mobile phones, laptops, netbooks, etc.
3 .WIFI Internal Antenna Performance Parameters:
| Electrical Specifications | Mechanical properties | |||
| Product name: | WIFI built-in antenna | size: | 25×14.5mm | |
| frequency range : | 2400-2500MHz | Antenna material: | FPC | |
| input impedence : | 50Ω | connector: | IPEX or MMCX | |
| standing-wave ratio: | ≤2 | Cable Length | 100mm | |
| polarization: | perpendicular | working temperature : | -40ºC~+80ºC | |
| directivity: | omnidirectional | storage temperature : | -45ºC~+85ºC | |

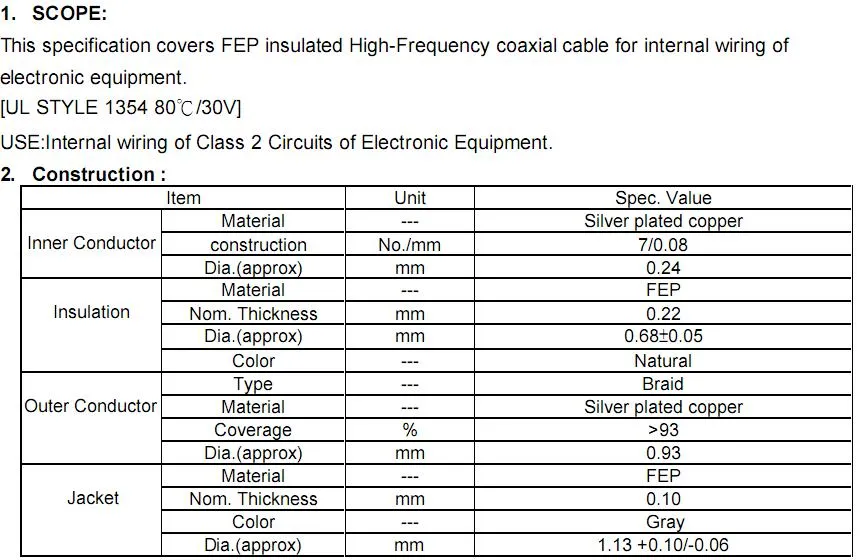

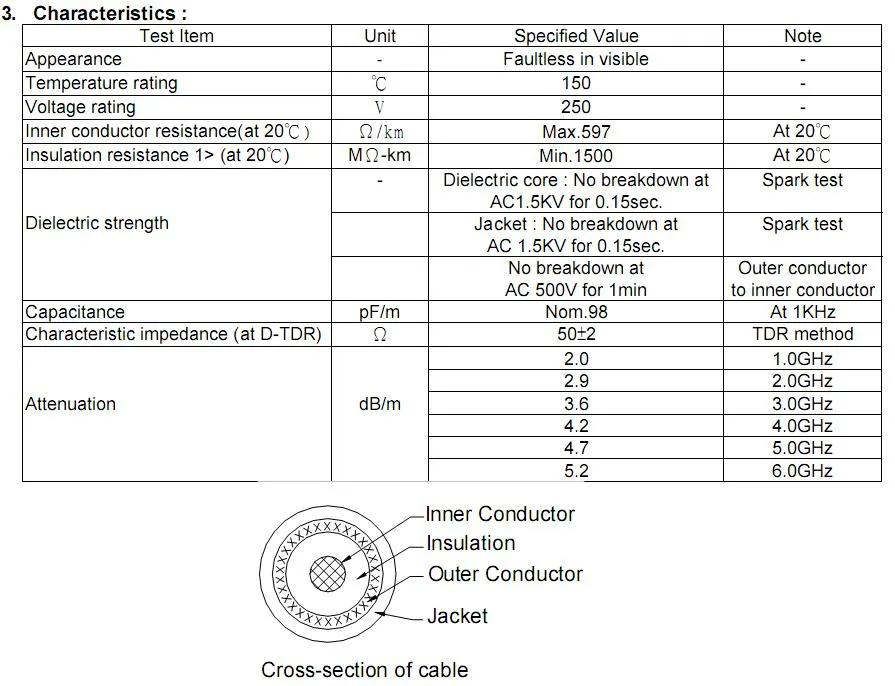

4 .Specification for RF-1.13 wire rod

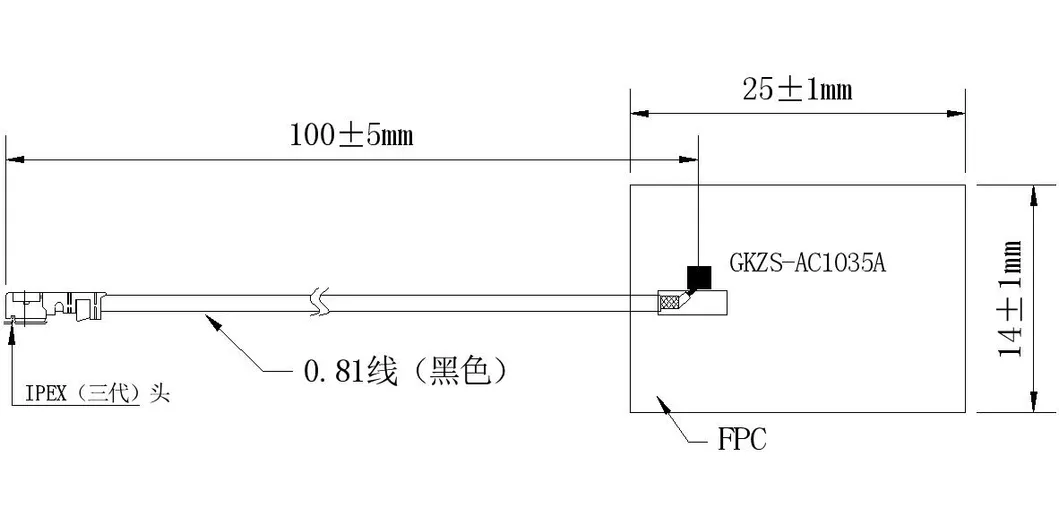

5. Product Size Diagram (unit: mm)
