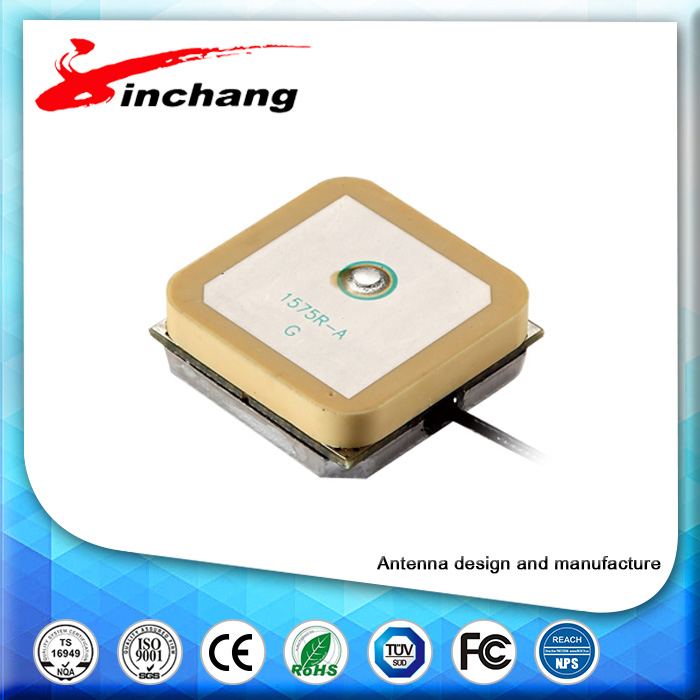

Free Sample High Quality GPS Internal Antenna
Key Specifications/Special Features:Size: D46x15mmCenter frequency: 1575.42+3 or -3MHzVSWR: 1.5: 1Bandwidth: +5 and -5MHzImpedance: 50 OhmsPolarization: RHCPLNA gain (without cable): 28+2 or -2dB (typical)Noise figure: 1.5dBDC voltage: 2.2 to 5VDC current: 5~15 mA (maximum)Advantages:1. We have our ......
Send Inquiry
Product Description
Key Specifications/Special Features:
Size: D46x15mm
Center frequency: 1575.42+3 or -3MHz
VSWR: 1.5: 1
Bandwidth: +5 and -5MHz
Impedance: 50 Ohms
Polarization: RHCP
LNA gain (without cable): 28+2 or -2dB (typical)
Noise figure: 1.5dB
DC voltage: 2.2 to 5V
DC current: 5~15 mA (maximum)
Advantages:
1. We have our own factory, offering dozens of antenna lines and over 20 R&D personnel.
2. We can make your own bespoke designs and samples to order.
3. We have an impressively quick reaction time to all your orders and requests, pre-production.
4. In Jinchang's R&D office, the Technical personnel to meet various requirements for you.
Size: D46x15mm
Center frequency: 1575.42+3 or -3MHz
VSWR: 1.5: 1
Bandwidth: +5 and -5MHz
Impedance: 50 Ohms
Polarization: RHCP
LNA gain (without cable): 28+2 or -2dB (typical)
Noise figure: 1.5dB
DC voltage: 2.2 to 5V
DC current: 5~15 mA (maximum)
Advantages:
1. We have our own factory, offering dozens of antenna lines and over 20 R&D personnel.
2. We can make your own bespoke designs and samples to order.
3. We have an impressively quick reaction time to all your orders and requests, pre-production.
4. In Jinchang's R&D office, the Technical personnel to meet various requirements for you.
| no | Item | Specifications | Post Environmental Tolerance |
| 1 | LNA Gain | 28±2 dB | ±2.5 dB |
| 2 | Noise Figure | 1.5 dB | ±1 MHz |
| 3 | Filter Out Band Attenuation | 12dB Min f0+50MHz 16dB Min f0-50MHz | |
| 4 | DC Voltage | 2.2~5 V | |
| 5 | DC Current | 5~15 mA | |
