Factory Directly 1710 -2190MHz Outdoor Patch Panel Antenna for Small Cells Das Ibs Bts Using
Products Description1710-2190MHz Outdoor Panel AntennaModel No.: TPW-1722-20OPA-NFPanel antenna refers to an antenna that only propagates in a specific direction. Panel antennas are generally used in point-to-point situations. They are called "patch antennas".At present, there are several ......
Send Inquiry
Product Description
| Products Description |

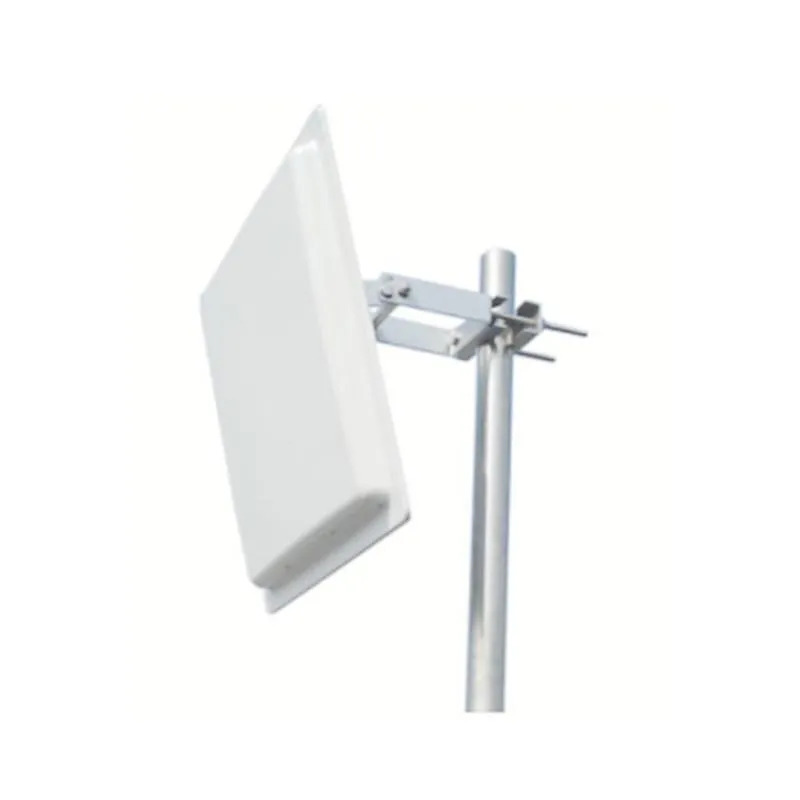

Model No.: TPW-1722-20OPA-NF
Panel antenna refers to an antenna that only propagates in a specific direction. Panel antennas are generally used in point-to-point situations. They are called "patch antennas".
At present, there are several types of flat antennas, such as vibrator type and slot type. Their concentrated characteristics are small size, light weight, low wind resistance, and easy installation and use; the built-in tuner integrates the antenna and the tuner, which is convenient to adjust; High efficiency, especially suitable for live satellite TV reception.
| Electrical & Mechanical Specifications |
Electrical Specifications | |
Frequency Range, MHz | 1710-2190 |
Bandwidth -MHz | 480 |
Gain, dBi | 20 |
Horizontal Beam width | 22° |
Vertical Beam width | 14° |
F/B Radio-dB | >25 |
VSWR | ≤1.50 |
Polarization | Vertical |
Input Impedance | 50 Ω |
Max. Input Power | 100 W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector | N Female |
Dimensions | 380*380*45mm |
Weight | 3.00 kg(approx) |
Radome Material | ABS (UV Stabilized) |
Operating Temperature | -40°C to +65°C |
Rated Wind Velocity-m/s | 60 |
Mounting Mast Diameter | Φ35~50mm |
