Delincomm Collapsible Rod Antenna Wireless Outdoor Car Am/FM Radio Antenna
Product DescriptionDeliNCOMM Am/Fm Collapsible rod antenna wireless outdoor car AM/FM Radio AntennaProduct ParametersAntenna Performance NO.ItemSpecifications1Range of Receiving Frequency(MHz)88~108MHz2Center Frequency(MHz)98MHz3V.S.W.R(in Center Frequency)≤2.04Gain (Zenith)(dBi typ)(with 70m......
Send Inquiry
Product Description

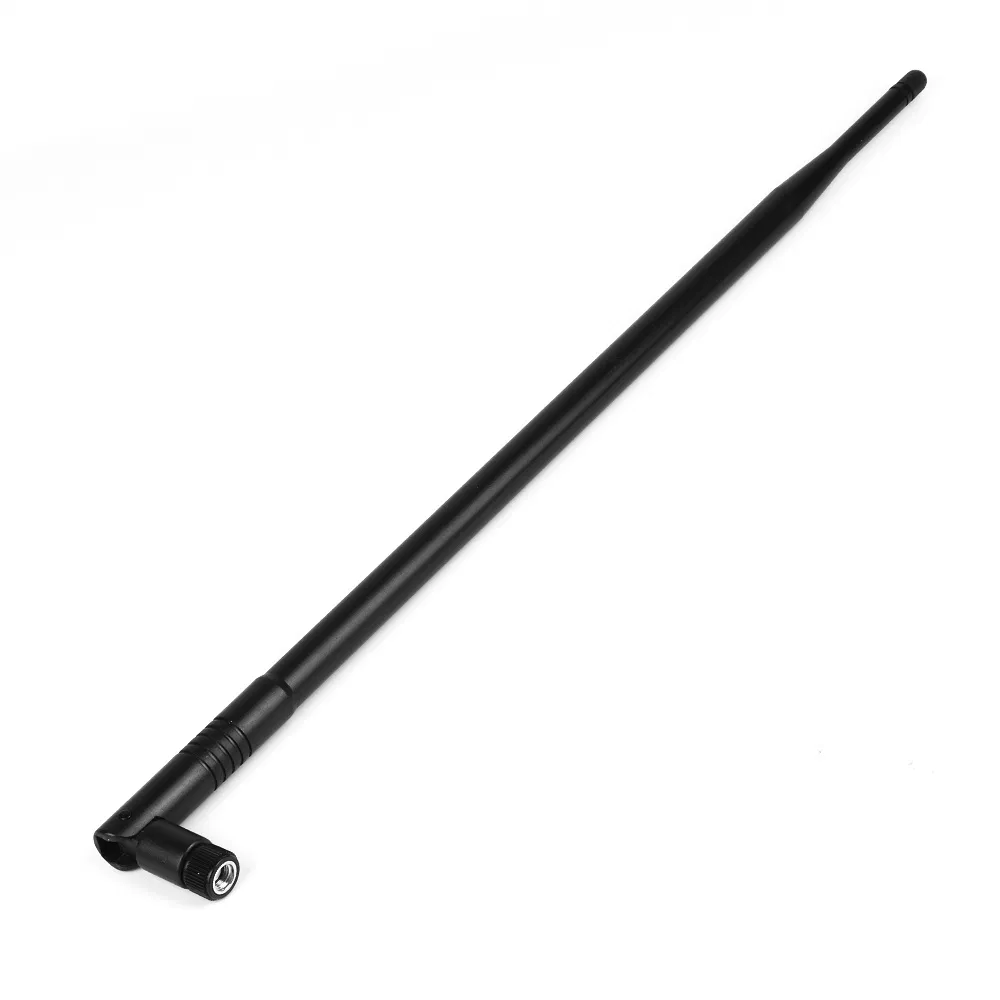

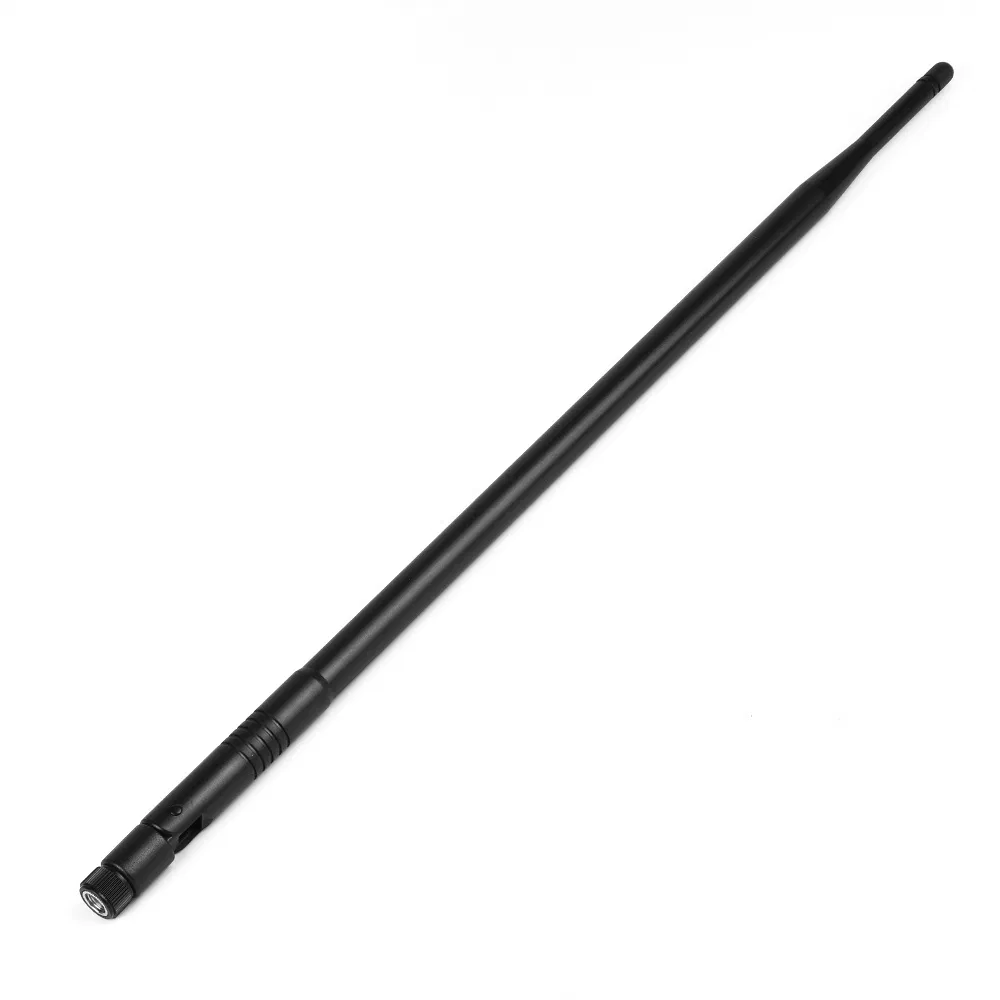

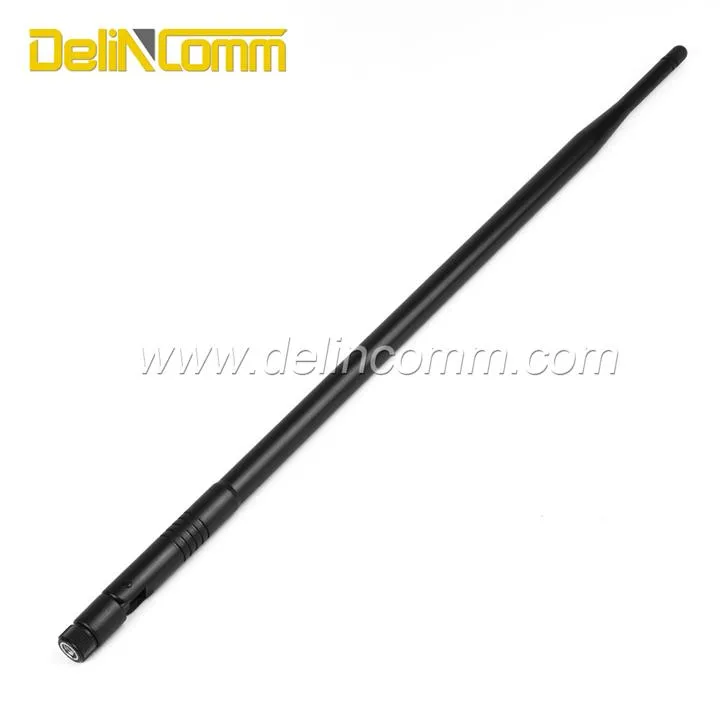

DeliNCOMM Am/Fm Collapsible rod antenna wireless outdoor car AM/FM Radio Antenna
Antenna Performance
| NO. | Item | Specifications |
| 1 | Range of Receiving Frequency(MHz) | 88~108MHz |
| 2 | Center Frequency(MHz) | 98MHz |
| 3 | V.S.W.R(in Center Frequency) | ≤2.0 |
| 4 | Gain (Zenith)(dBi typ)(with 70mmSquare GND plane) | 2.0 |
| 5 | Operating Temperature | -40ºC~+55ºC |
| 6 | Radiation | OMNI |
| 7 | Input Impedance(Ω) | 50 |
| 8 | Maximum Power(W) | 10 |
| 9 | Polarization | Vertica |
| 10 | Connector Type | SMA male |
| 11 | Size(mm) | φ13.2x340 |
| 12 | Color | Black |
| 13 | Shell Material | Plastic |
Delin comm Limited, is a professional enterprise with its own brand (DELINCOMM) and 27 years of experience in R&D, production
and sales.
We focuses on the R&D and production of radar antenna, base station antenna, power antenna, GPS antenna,GLONASS antenna, 5G antenna, 4G antenna, 2.4G antenna, WiFi Antenna, BT antenna, GSM antenna, DVB-T antenna, WLAN antenna,GNSS antenna,
various Combined antenna,GPS module, GNSS module, GPS antenna module, GNSS antenna module, MOUSE receiver, NFC module,
4G module and 5G module, etc.
Q: Can I get one sample?
A: Yes, sample is available.
Q: What's the delivery time?
A: 7-15 days for the sample, 30 days for quantity below 5K.
Q:Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, Western Union etc.
Q: May I visit your factory?
A: Sure, welcome any time.
