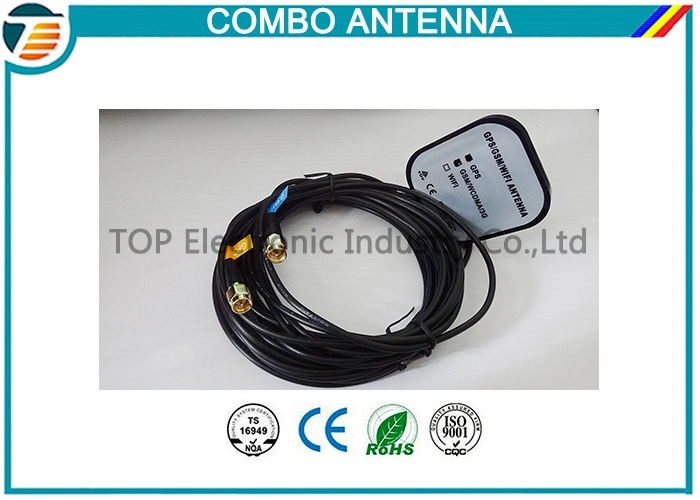

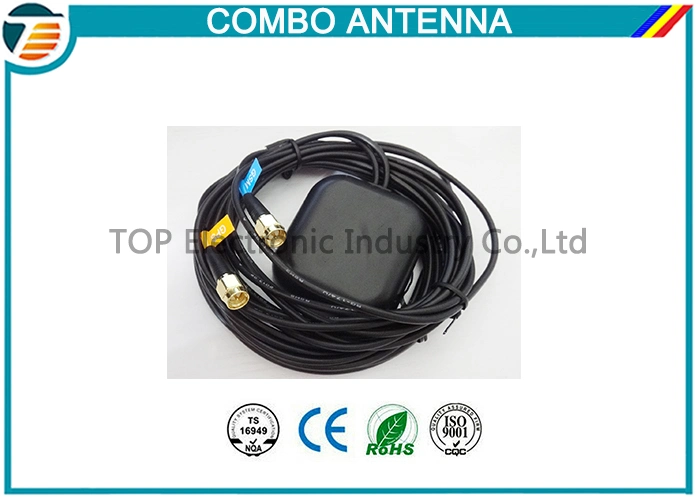

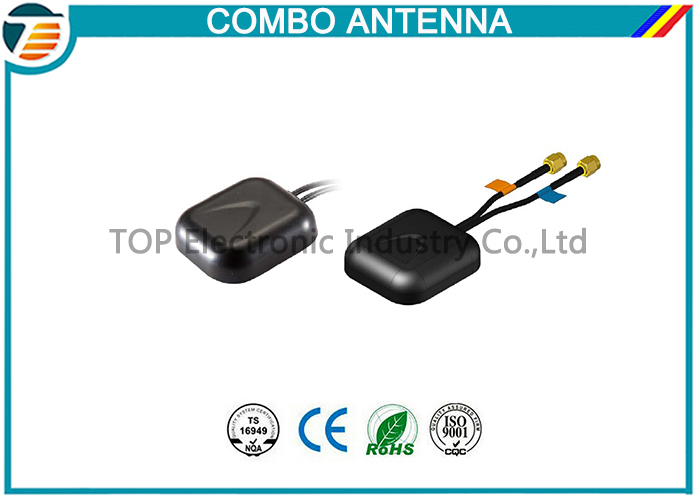

Combination GPS GSM Antenna (TOP-GSM/GPS01)

SPECIFICATION

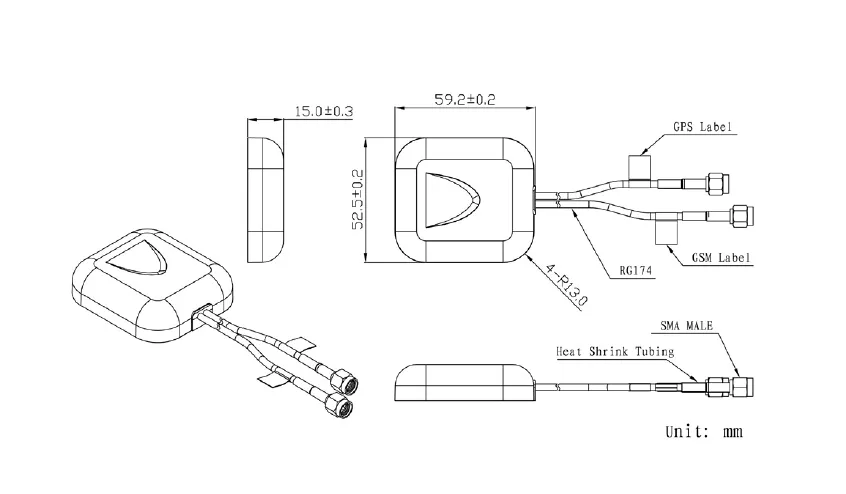

Size: 59*52*14MM

Dieletric Antenna

Center Frequency 1575.42 MHz± 3 MHz

V. S. W. R 1.5: 1

Band Width ± 5 MHz

Impendence 50 ohm

Polarization Type RHCP

LNA / Filter

LNA Gain(Without cable) 30 dB Typical

Noise Figure 1.5 dB

DC Voltage 2.2~5 V

DC Current 5~15 mA

GSM Part

Frequency 824~894MHz/1710~1990MHz

880~960MHz/1710~1990MHz

V. S. W. R 2.0: 1

Impendence 50 ohm

Typical Gain 2dBi

Cable RG174 3m/5m or others

Connector SMA/SMB/MCX or others

Working Temp -4° C~+8° C

Humidity 55%~75%RH

Waterproof IP67

Screw mounting







Our  Antenna :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
