Electrical SpecificationsFreqRange900-930MHzGain6±1dBiHorizontal Beamwidth360°Vertical Beamwidth20±5° VSWR≤1.8Impedance50ΩPolarizationV PolMax. Power100WConnectorN-KLightning ProtectionDC groundingMechanical SpecificationsDimensionΦ20x9......
| Electrical Specifications | |
| FreqRange | 900-930MHz |

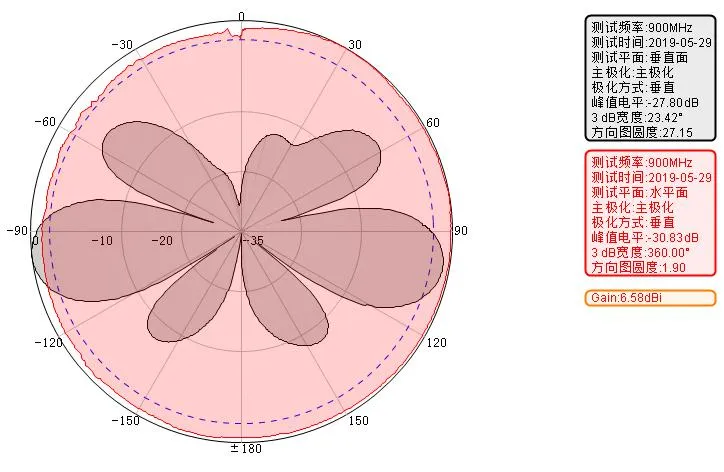

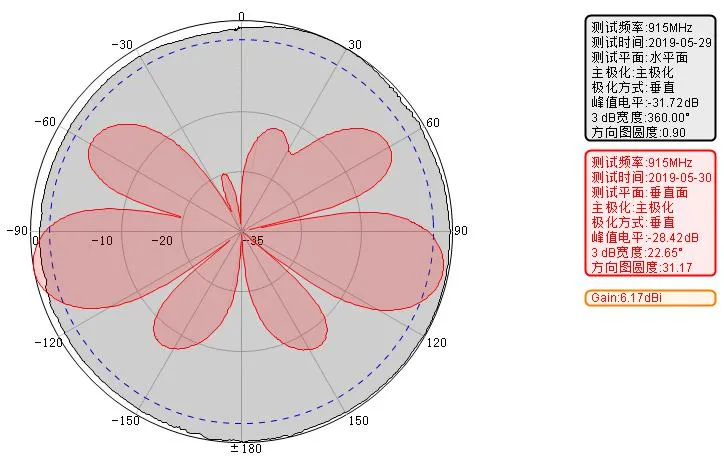

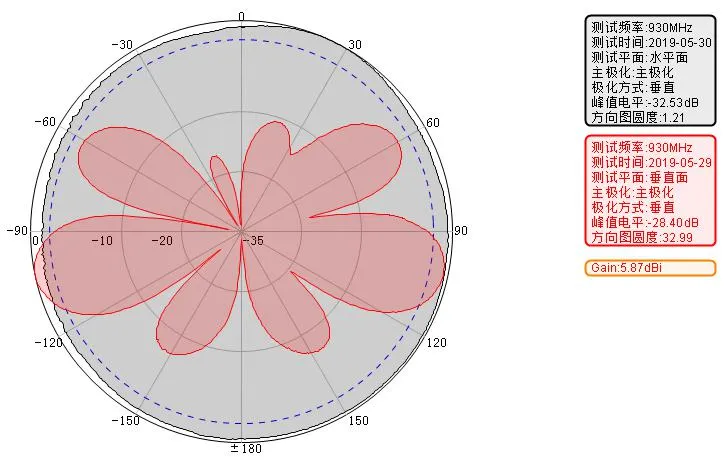

| Gain | 6±1dBi |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 20±5° |

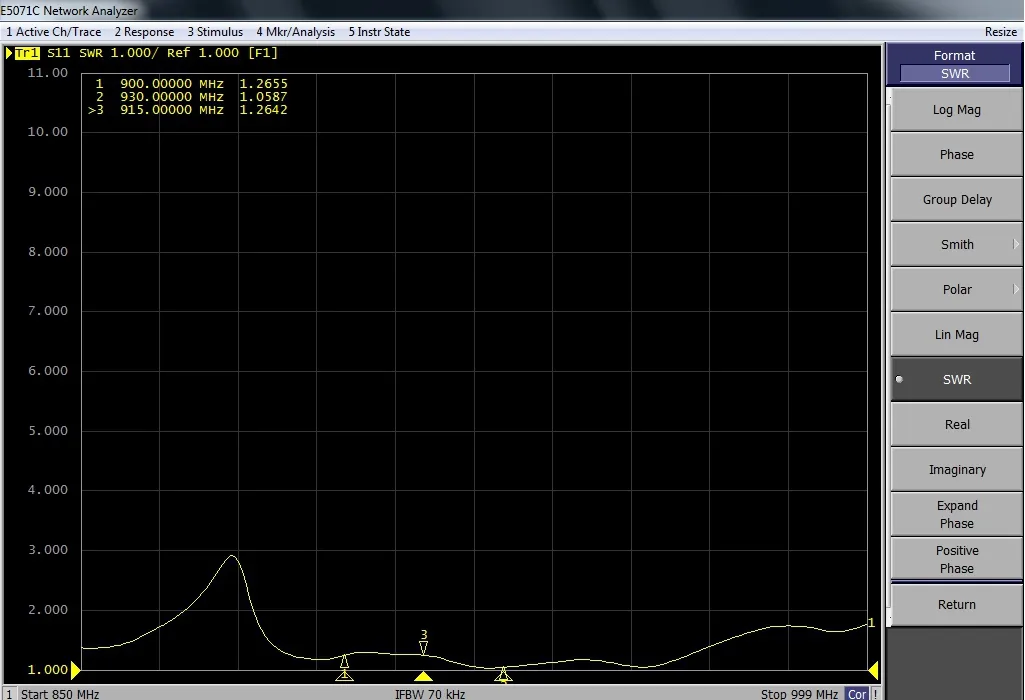

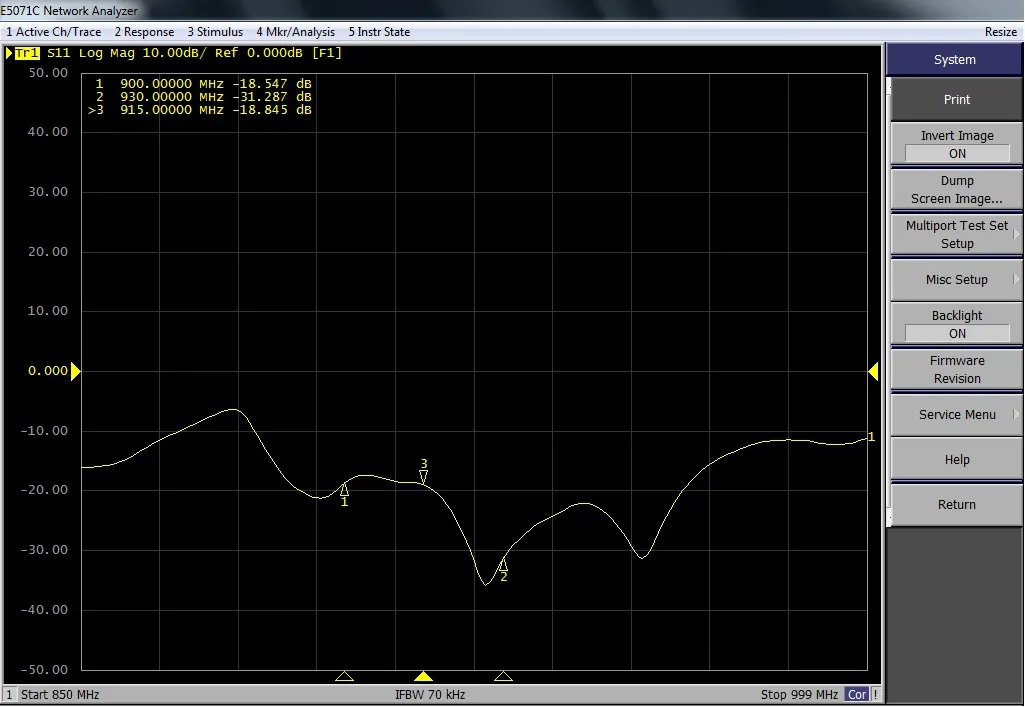

| VSWR | ≤1.8 |
| Impedance | 50Ω |
| Polarization | V Pol |
| Max. Power | 100W |
| Connector | N-K |
| Lightning Protection | DC grounding |
| Mechanical Specifications | |
| Dimension | Φ20x985mm |
| Weight | 345g |
| Rated Wind Velocity | 36.9m/s |
| Operational Humidity | < 95% |
| Operating temperature | -40~55ºC |
| Radome material | GRP (gray) |
