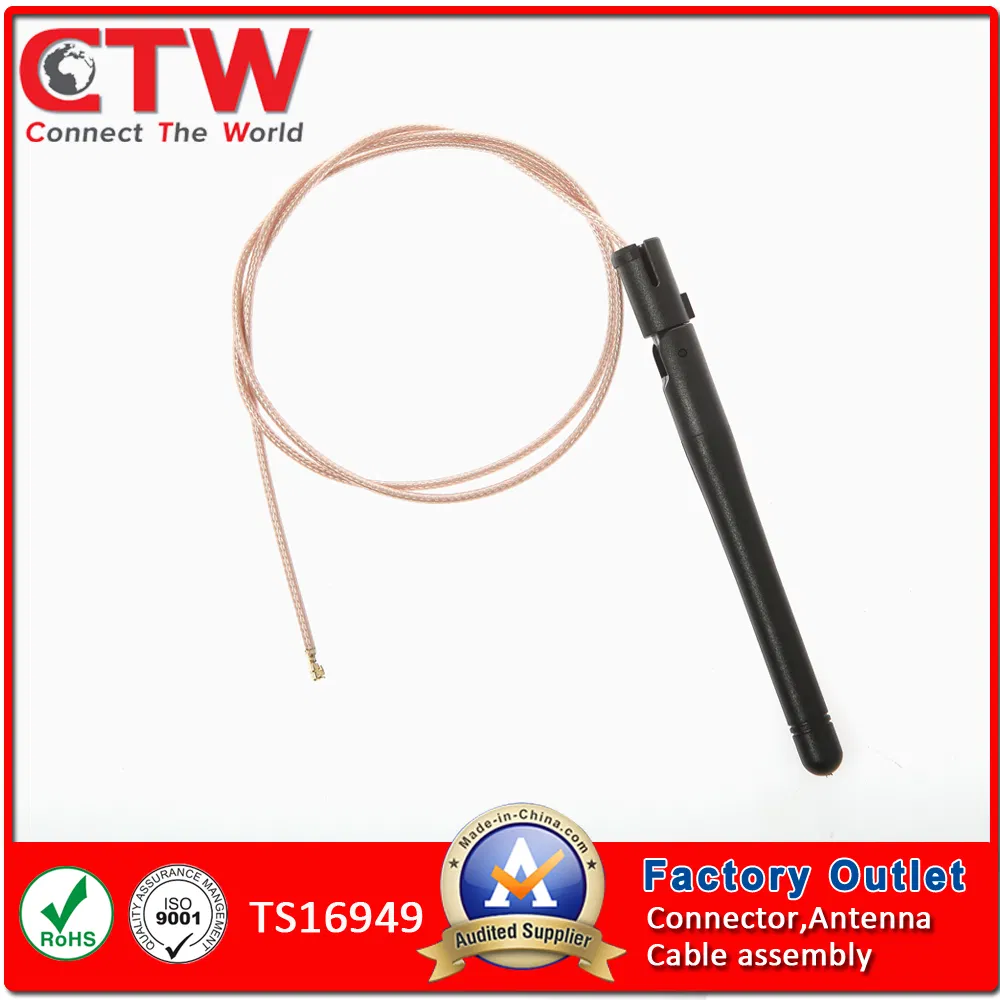

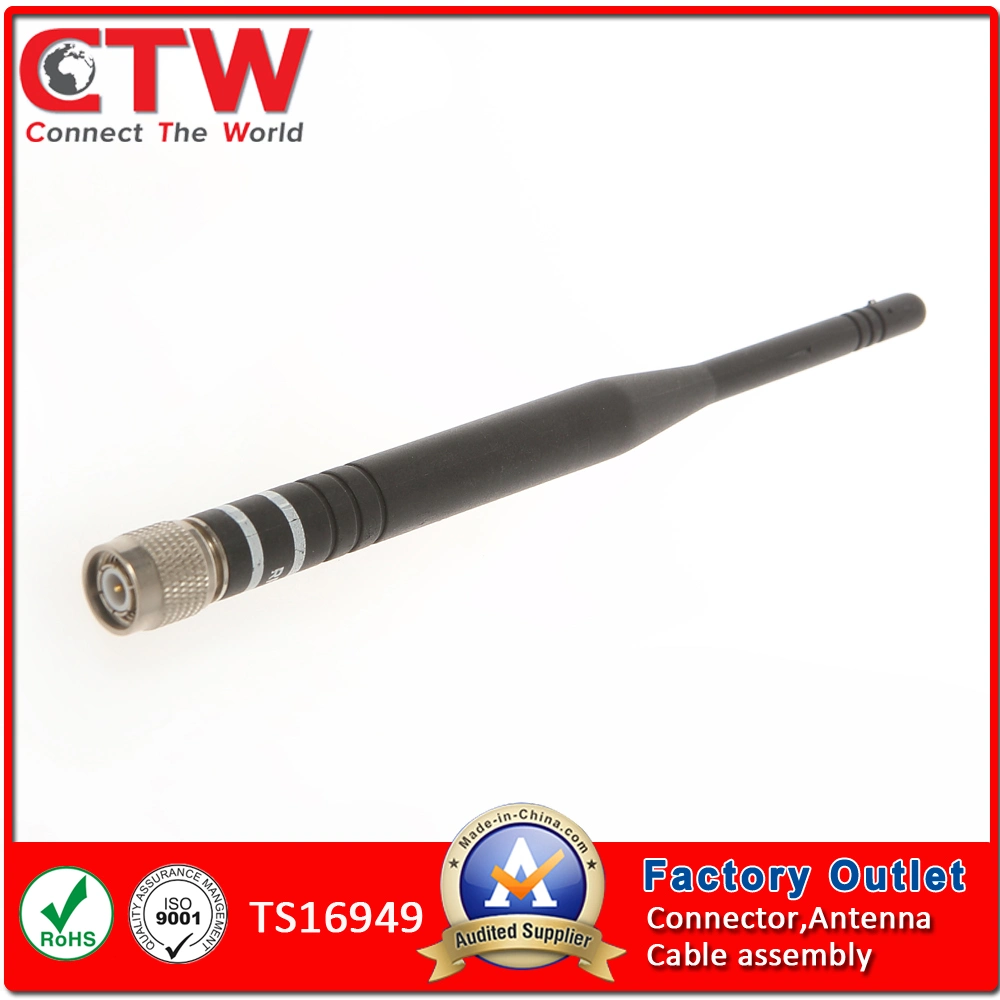

824-960MHz/ 1710 -2170MHz 2W Black Industrial Antenna

Product Specification

Electrical Characteristics
Frequency Range	824-960MHz/1710-2170MHz
VSWR	<=2.5:1
Gain	>=0dBi
Input Impedance	Nominal 50 Ω
Max Power	2W
Radiation Pattern	Omni-directional@zaimuth plane
Polarization	Linear
Mechanizal Characteristics
Dimension	175mm×7mm tapered
Connector	TNC/SMA/N
Color	Black
Water Ingress	IP67 when installed
Temperature Characteristics
Storage Temperature	-40ºC ~+85ºC
Operating Operation	-40ºC ~+85ºC

Features and Benefits

1. Strong R&D team which is dedicated to research,design,analyze and test innovative antenna systems
2. Professional and efficient mechanical and RF simulation toolis to make sure the perfect antenna performances
3. One stop solution to design and manufacture all kinds of antennas for industrial and automotive applications
4. Provided quad band,muti-function module,AM/FM short whip,embedded BT antenna,stealth GSM and GPS antenna,and the TPM antenna,RFID antenna
5. Customeized and standard antennas design and manufacture
6. Strict quality control and end to end process


Applications

1. Industrial RFID antenna
2. Asset tracking external /internal antenna
3. Automotive muti-function antenna
4. Wireless alam,security and monitoring systems
5. Vehicle tracking systems

Company Profile
*Global professional provider for antennas ,cable assembly, precision parts & assembly, industrial connectors
*Dedicated to provide innovative solutions & high quality  products for industrial, telecommunication, military, medical and automotive markets
*Professional & experienced R&D/Engineering team who are dedicated on research and development
*Rigorous and controlled manufacturing process and excellent quality system

R&D Strategy & Capability

1) More than 28 R& D Employees.
2) around have 15 new palents every year .
3) Re-investment in R & D.
4) competitive R&D system.

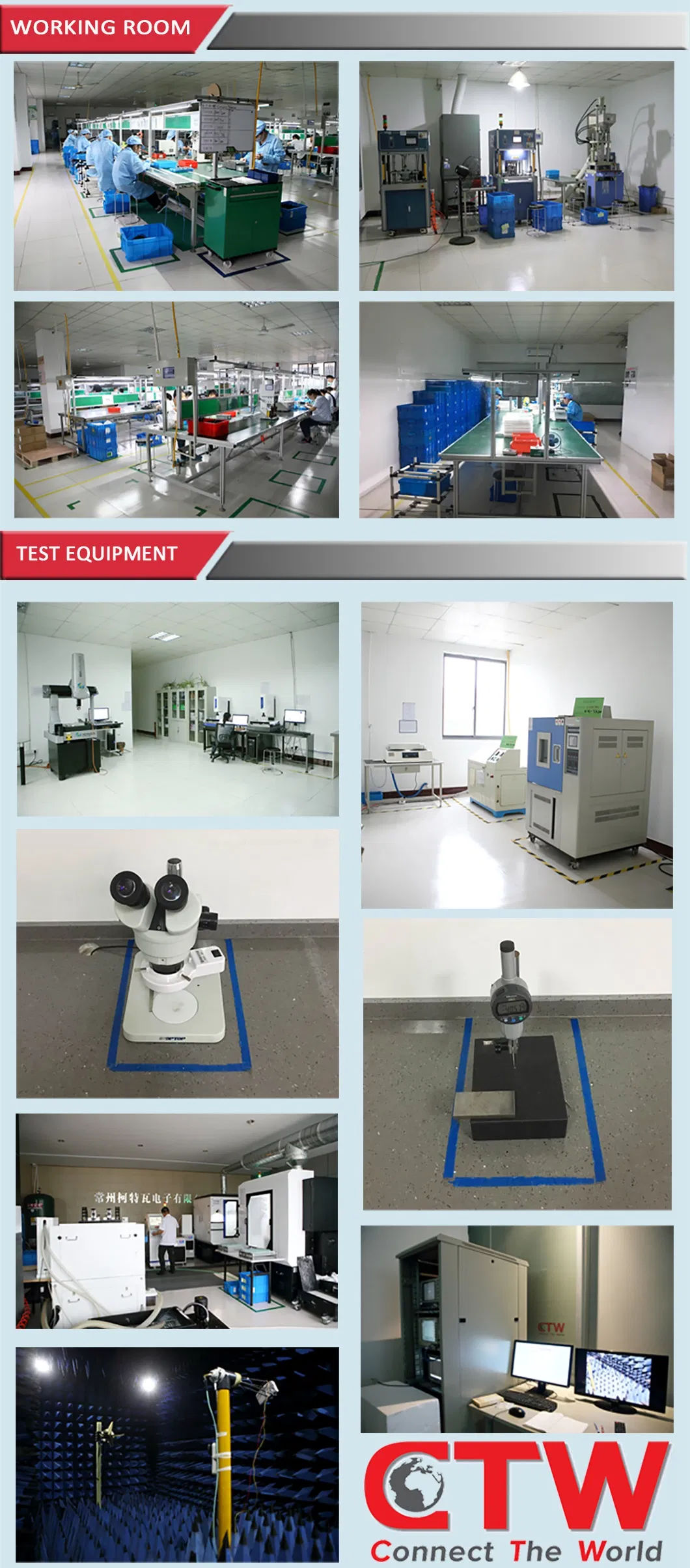

5) complated laboratory lab
6) high level design capability .



FAQ

Q1. Are you a factory?
CTW : Yes, we are a 100% factory. Established in 2013, CTW  factory size is 10K+ m2, located in historic town of Xinbei, Changzhou City, JiangSu Province, China (Post Code: 213000).

Q2. Can you produce customized product orders? OEM or ODM orders?
CTW: Sure. With 7+ years of OEM and ODM manufacturing experience, we are able to provide you with one-stop Custom Connector Solutions.

Q3. Why choose CTW? What makes your company a reliable supplier?
CTW: Ever since founded,CTW is committed to being the world's leading manufacturer in industrial connectivity. We are the factory in China who has been certified with ISO 9001/ISO, 16949/ISO .

Q4. What certificates do your products have?
CTW : Our products are certified with UL/CE/IP67/IP68/IP69K/RoHS/and so on ...... Our main markets include EU, North America, East Asia etc.

Q5. What's your regular production time after order is placed and confirmed?
CTW: Generally speaking, 3~5 days for standard products. If customized products,lead time is about 10~12 Days. If your project involves new molds to make, lead time is subject to custom product complex.

Q6. What's your strength in logistics?
CTW: International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing. Both China export and import customs clearance at your side can be managed by us if you like to use our shipping forwarder agents. Enjoy your one-stop purchasing experience at CTW!
