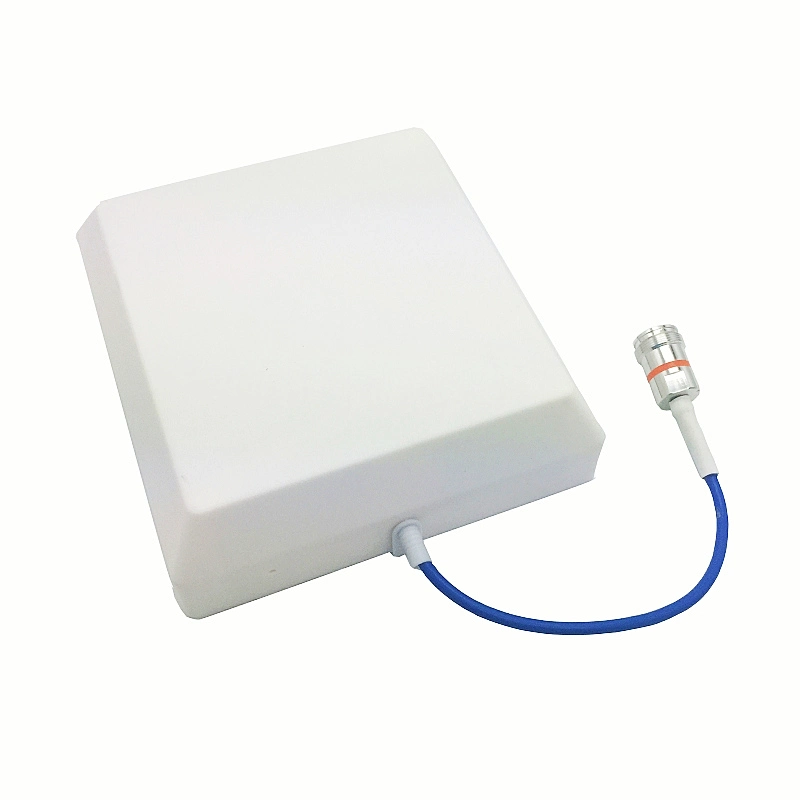

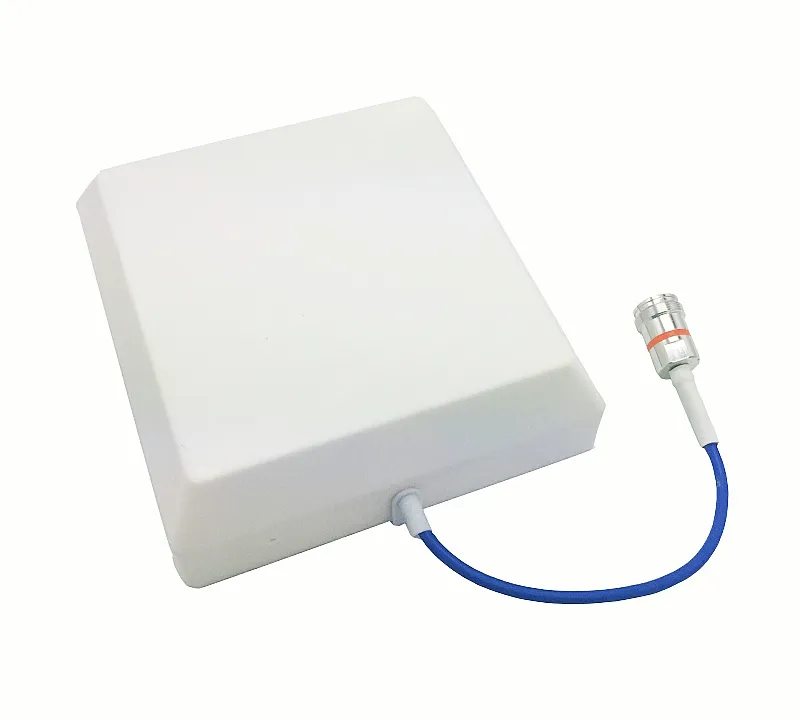

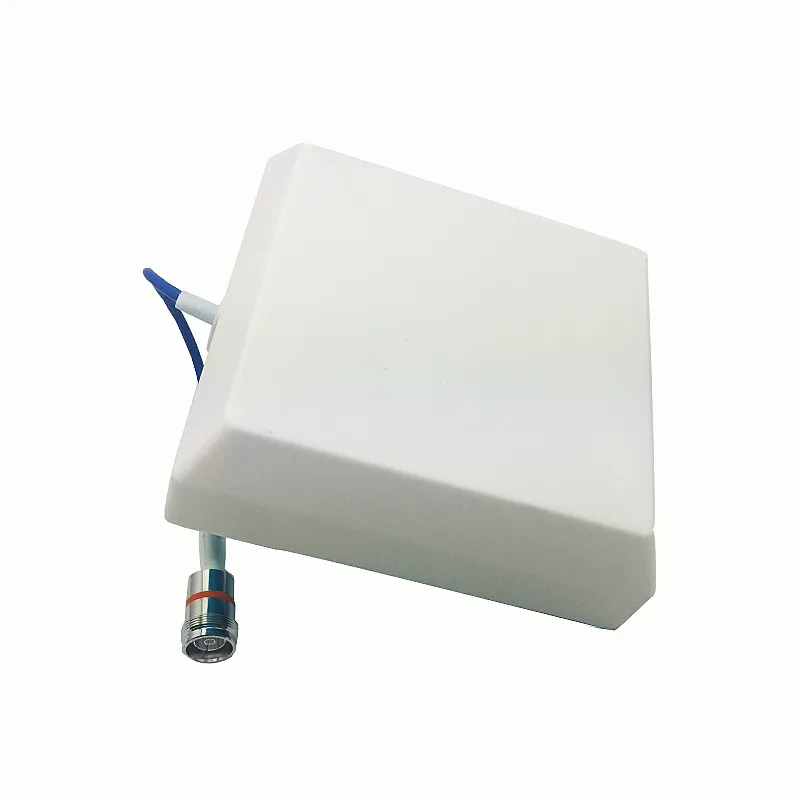

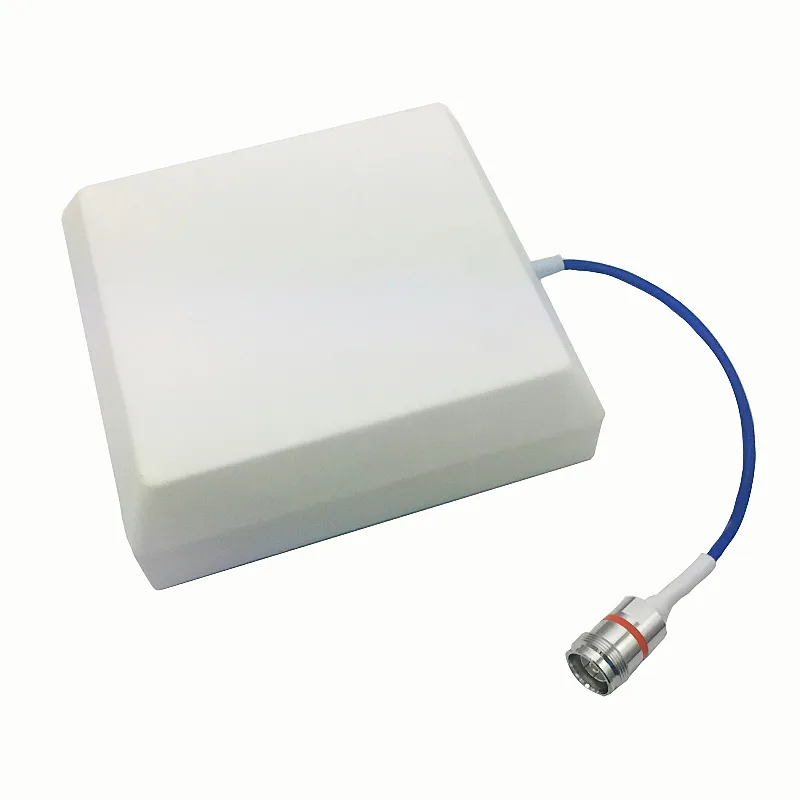

790-806/806-960/ 1710 -2700MHz Low Pim Indoor Panel Antenna 4.3-10 Female IP65
Products Description790-806/806-960/1710-2700MHz Low PIM Indoor Panel Antenna Panel antennas are common at Ultra high frequency (UHF) , where they are often used for cellular/mobile base stations or wireless networking due to their size and directional properties. At VHF frequencies, such an ante......
Send Inquiry
Product Description
| Products Description |
Panel antennas are common at Ultra high frequency (UHF) , where they are often used for cellular/mobile base stations or wireless networking due to their size and directional properties.
At VHF frequencies, such an antenna would be impractically large for most receiving applications unless implemented as no more than a two-bay design. Some full power radio stations do use multiple panel antenna bays, installed one above the other on the side of a tall antenna tower, to provide a directional transmitter pattern on these frequencies.
Topwave panel antennas are made from weatherproof aluminium, all mounting hardware is stainless steel, the cover is made of weatherproof ABS. All antennas can be mounted for horizontal or vertical polarisation and come including mounting bracket.
| Electrical & Mechanical Specifications |
| Electrical Specifications | |||
| Model No. | TPW-727-6LPIPA-41F | ||
| Frequency Range, MHz | 790-806 | 806-960 | 1710-2700 |
| Gain, dBi | 5.5 | 6.5 | 8.0 |
| VSWR | ≤2.0 | ≤2.0 | ≤1.8 |
| Polarization | Vertical | ||
| PIM, 3rd Order, 2x20W | ≤-150 dBc | ||
| Front to Back Ratio, dB | ≥9 | ≥10 | ≥15 |
| Horizontal Beam width | 100° | 85° | 65° |
| Vertical Beam width | 90° | 82° | 60° |
| Input Impedance | 50 Ω | ||
| Max. Input Power | 50 W | ||
| Lightning Protection | DC Ground | ||
| Mechanical Specifications | |||
| Connector | 4.3-10 Female | ||
| Dimensions | 180x158x60 mm | ||
| Weight | 0.4 kg | ||
| Reflector Material | Aluminum | ||
| Radome Material | ABS (UV Stabilized) | ||
| Operating Temperature | -40°C to +65 °C | ||
| (Operational Humidity) | < 95% | ||

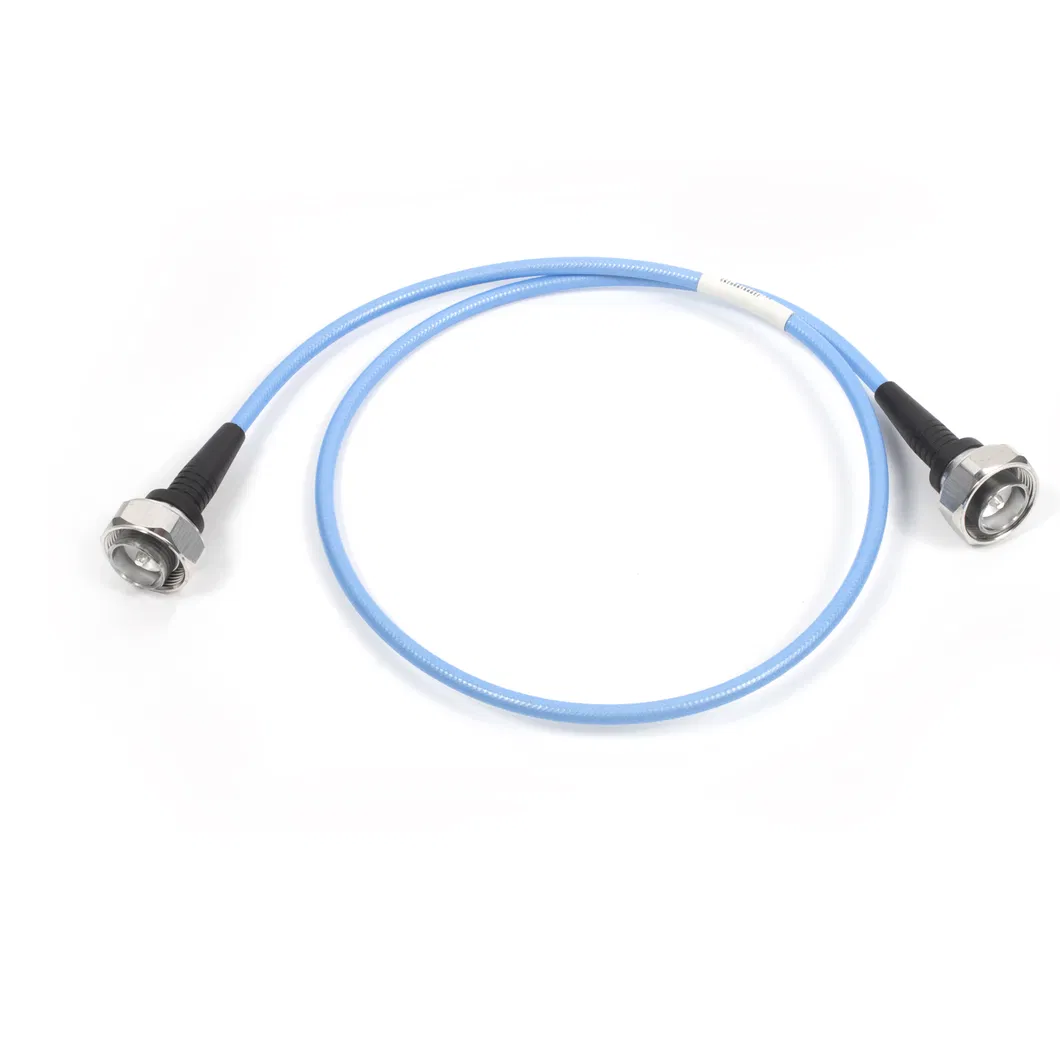

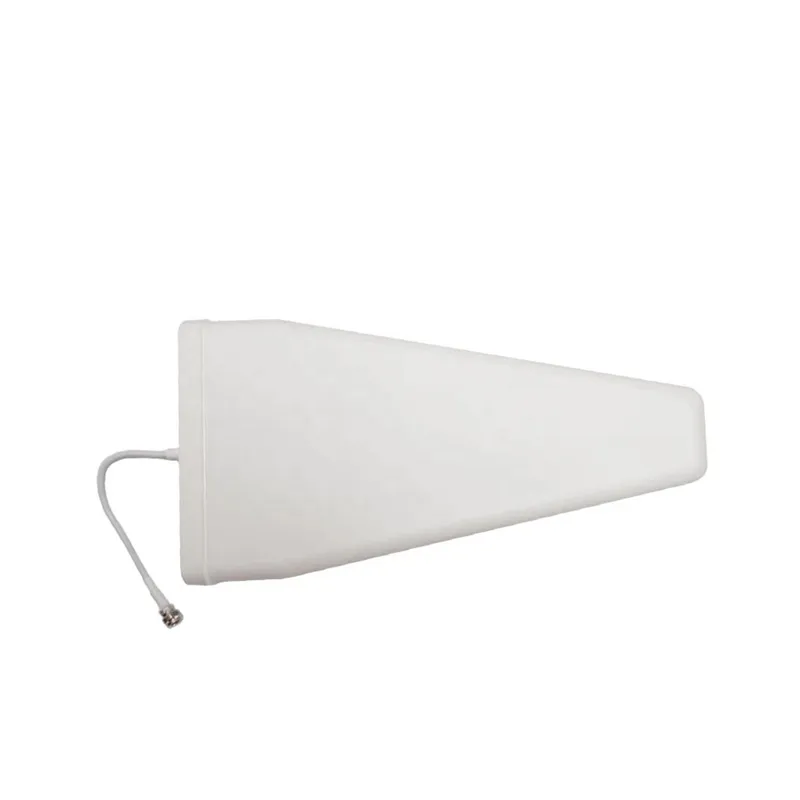

| Related Product |
