617-2700MHz Low Pim MIMO Omni Ceiling Antenna Multi-Band with N Female Connector
Products Description617-960/1710-2170/2300-2700MHz Indoor MIMO Omni Ceiling Antenna(-153dBc, N Female)MIMO radios use multipath propagation to increase the data capacity of the radio network on a given channel and improve transmit and receive quality in areas such as urban environments that may cont......
Send Inquiry
Product Description
| Products Description |
617-960/1710-2170/2300-2700MHz Indoor MIMO Omni Ceiling Antenna(-153dBc, N Female)
MIMO radios use multipath propagation to increase the data capacity of the radio network on a given channel and improve transmit and receive quality in areas such as urban environments that may contain obstructions. Omni-directional antenna products specifically designed for use with multi-port MIMO / MANET radio systems. These products feature multiple discrete antennas within the radome, each with its own RF connector.

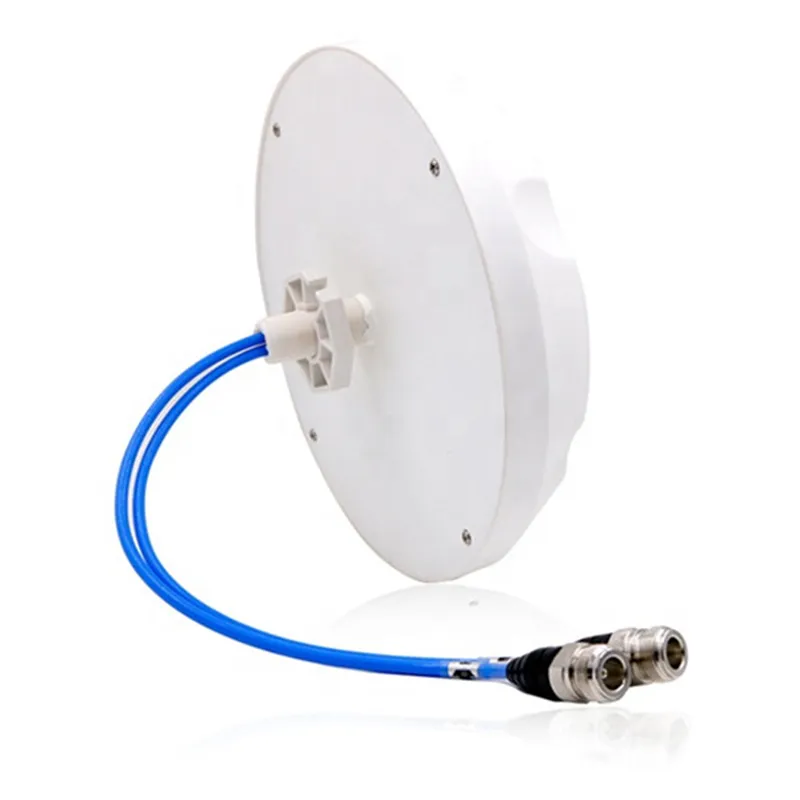

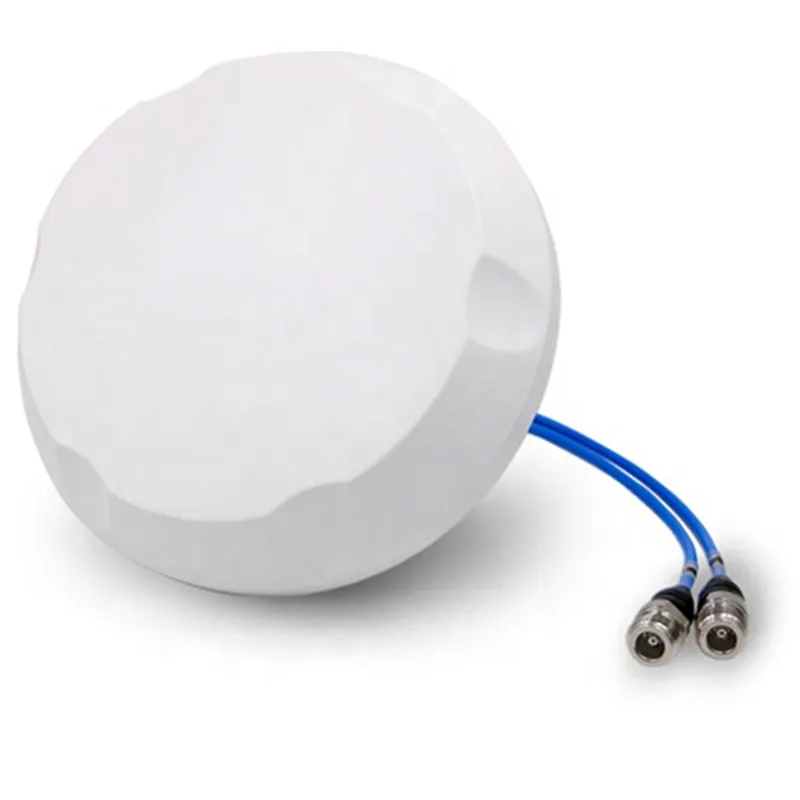

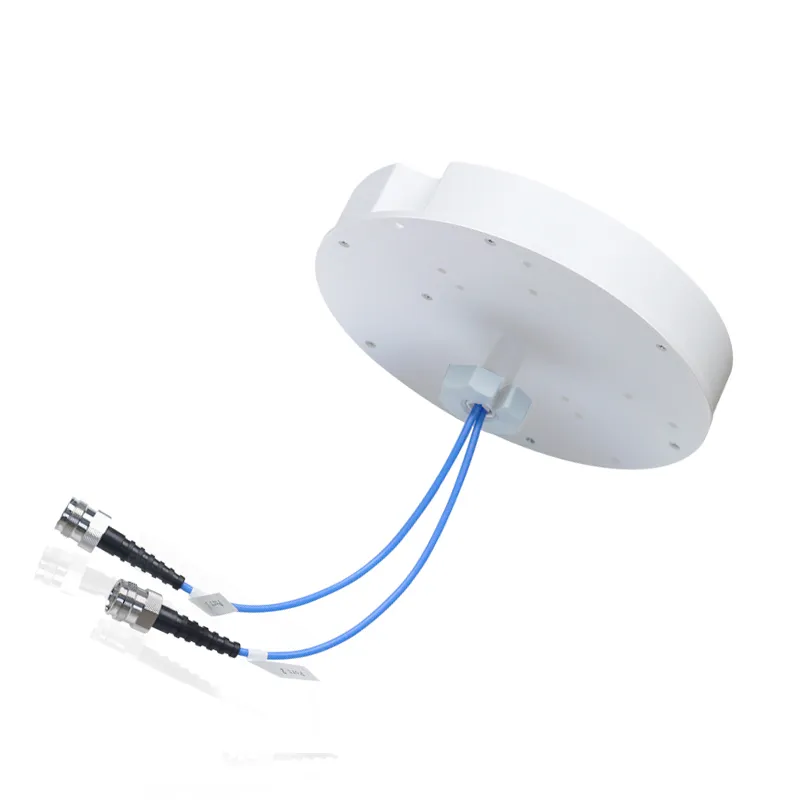

Topwave Model TPW-MOA-627-NF, it is a low PIM wide band 617-2700MHz MIMO Omni antenna with N female connector. The antenna is compatible with GSM900, GSM1800 and 3G UMTS 2100 networks.
| Electrical & Mechanical Specifications |
| Electrical Specifications | |||
| Model No. | TPW-MOA-627-NF | ||
| Frequency Range, MHz | 617-960 | 1710-2170 | 2300-2700 |
| Gain, dBi | 3.0 | 4.0 | 6.0 |
| VSWR | ≤2.0 | ≤2.0 | ≤1.8 |
| Polarization | Horizontal | ||
| Isolation | 20 dB | 23 dB | 23 dB |
| PIM, 3rd Order, 2x20W | ≤-153 dBc | ||
| Horizontal Beamwidth | 360° | ||
| Vertical Beamwidth | 110° | 68° | 29° |
| Input Impedance | 50 Ω | ||
| Max.Power | 50 W | ||
| Lightning Protection | DC Ground | ||
| Mechanical Specifications | |||
| Connector | 2 x N Female | ||
| Dimensions | Ø280x19.0 mm | ||
| Weight | 0.55 kg | ||
| Color | White | ||
| Reflector Material | PCB | ||
| Radome Material | ABS (UV Stabilized) | ||
| Operating Temperature | -40°C to +65 °C | ||
