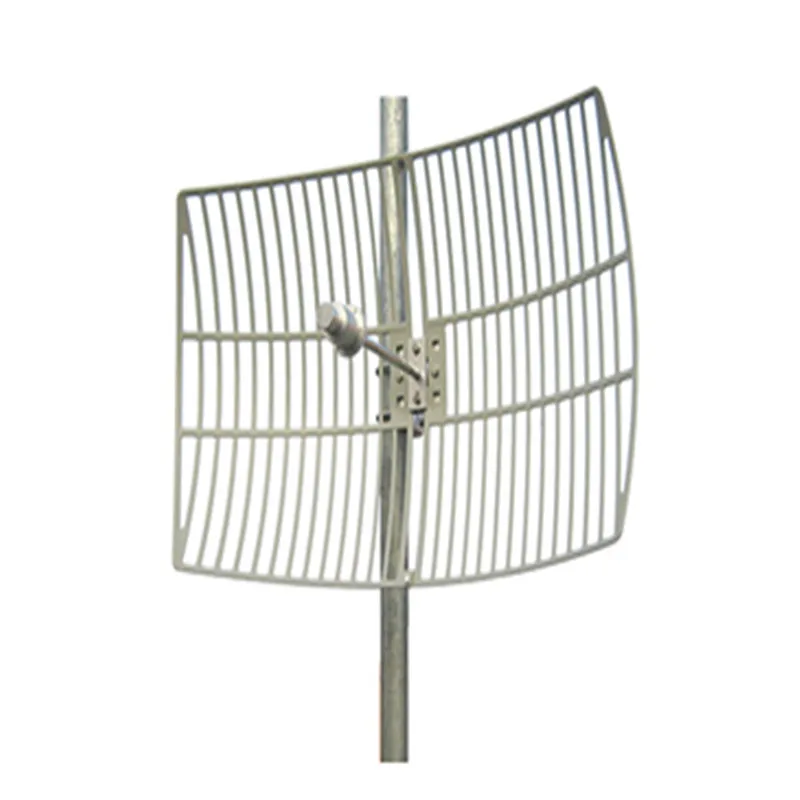

5.8GHz WLAN Grid Parabolic Antenna with 30dBi Gain
Applications:1,5.8GHz,WLAN,WIFI Wireless System;2,Point-to-point, point-to-multipoint systems.Features:1,High gain, high front-to-back ratio;2,Anti-aging Surface Coati.Electrical SpecificationsFrequency Range5725-5850MHzPolarizationVerticalVSWR≤1.5Gain30dBiHorizontal beam width4°Verti......
Send Inquiry
Product Description
Applications:
1,5.8GHz,WLAN,WIFI Wireless System;
2,Point-to-point, point-to-multipoint systems.
Features:
1,High gain, high front-to-back ratio;
2,Anti-aging Surface Coati.
| Electrical Specifications | |
| Frequency Range | 5725-5850MHz |
| Polarization | Vertical |
| VSWR | ≤1.5 |
| Gain | 30dBi |
| Horizontal beam width | 4° |
| Vertical beam width | 9° |
| Front-to-back ratio | ≥25dB |
| Input Impedance | 50Ω |
| Maximum input power | 100W |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | N-K |
| Dimensions | 0.9×0.6m |
| Antenna weight | 3.2kg |
| Reflector material | Aluminum |
| Reflecting surface color | Gray |
| Mechanical tilt | 0~20° |
| Operating temperature | -40°C to + 65 °C |
| Rated Wind Velocity | 60 m/s |
| Mounting hardware | φ35~φ50 mm |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
