400-430MHz UHF 10dBi Gain N Female Wireless Directional Yagi Antenna
General Description400-430MHz Directional Yagi Antenna(400-430MHz, N Female)Model No.TPW-4043-10OYA-NFElectrical & Mechanical SpecificationsElectrical SpecificationsFrequency Range, MHz400-430Elements6Gain, dBi10.0VSWR≤2.0PolarizationVertical or HorizontalHorizontal Beamwidth49°Ve......
Send Inquiry
Product Description
General Description

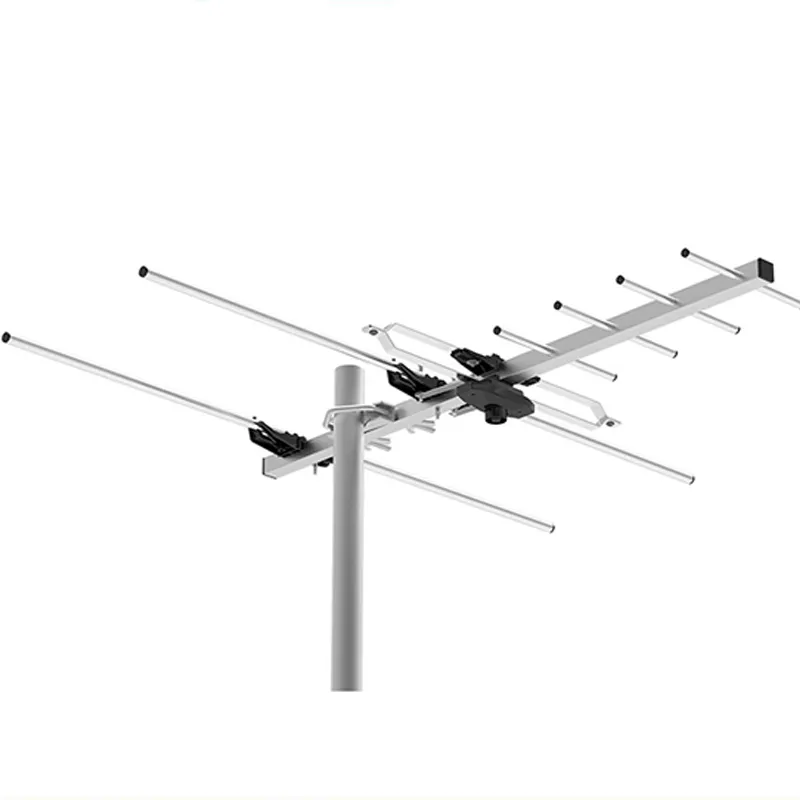

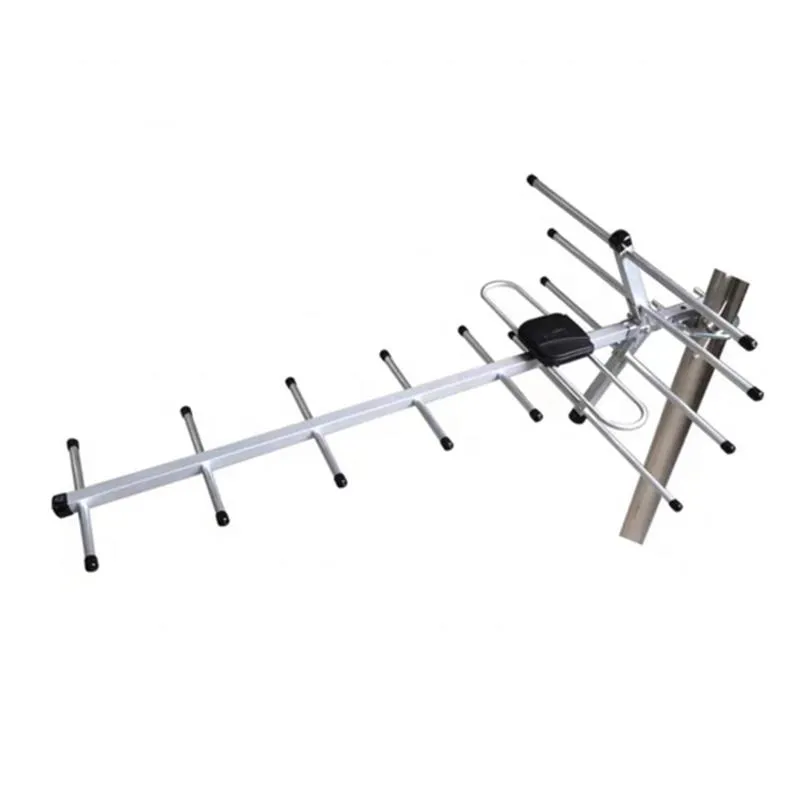

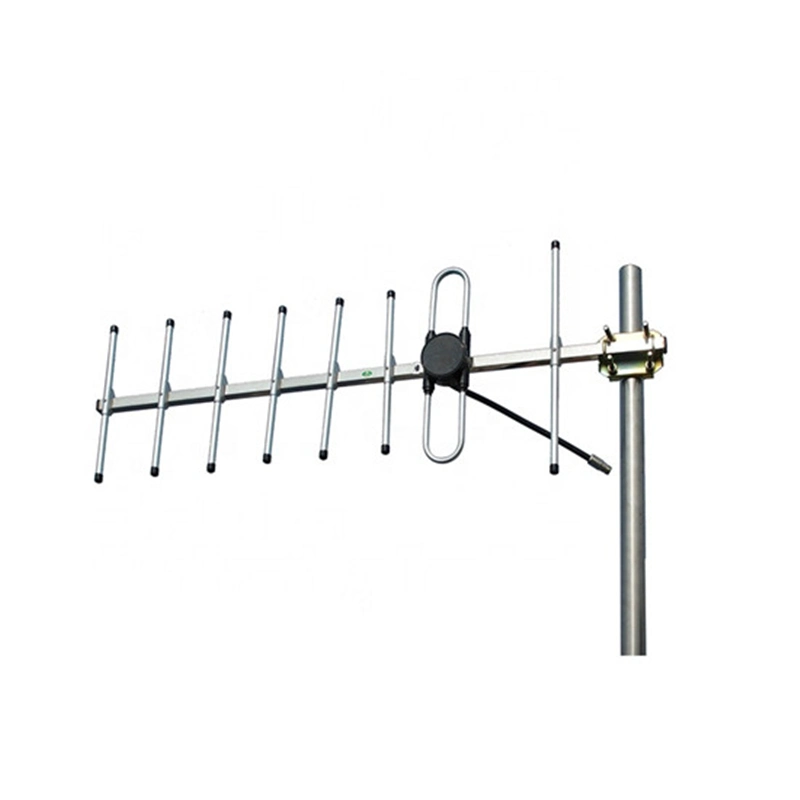

400-430MHz Directional Yagi Antenna(400-430MHz, N Female)
Model No.
TPW-4043-10OYA-NF
Electrical & Mechanical Specifications
Electrical Specifications | |
Frequency Range, MHz | 400-430 |
Elements | 6 |
Gain, dBi | 10.0 |
VSWR | ≤2.0 |
Polarization | Vertical or Horizontal |
Horizontal Beamwidth | 49° |
Vertical Beamwidth | 44° |
F/B Ratio-dB | 14 |
Input Impedance | 50 Ω |
Max. Input Power | 100 W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector | N Female |
Dimensions | 90x230x45mm |
Weight | 0.80kg |
Rated Wind Velocity-m/s | 60 |
Reflector Material | Aluminum |
Operating Temperature | -40°C to +65°C |
Installation | Pole mounting |
Related Information
UHF yagi antennas are commonly used in TV reception, ham radio and as a bridge antenna to connect a site to a wifi access point. UHF yagi antennas have a dipole as the main radiating or driven element. A reflector is usually located behind the driven element.
Topwave Model TPW-4043-10OYA-NF, 400-430MHz 10dBi yagi antenna with N Female connector is a very mature product line. Get in touch with us to get free samples to test now...
About us
Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.

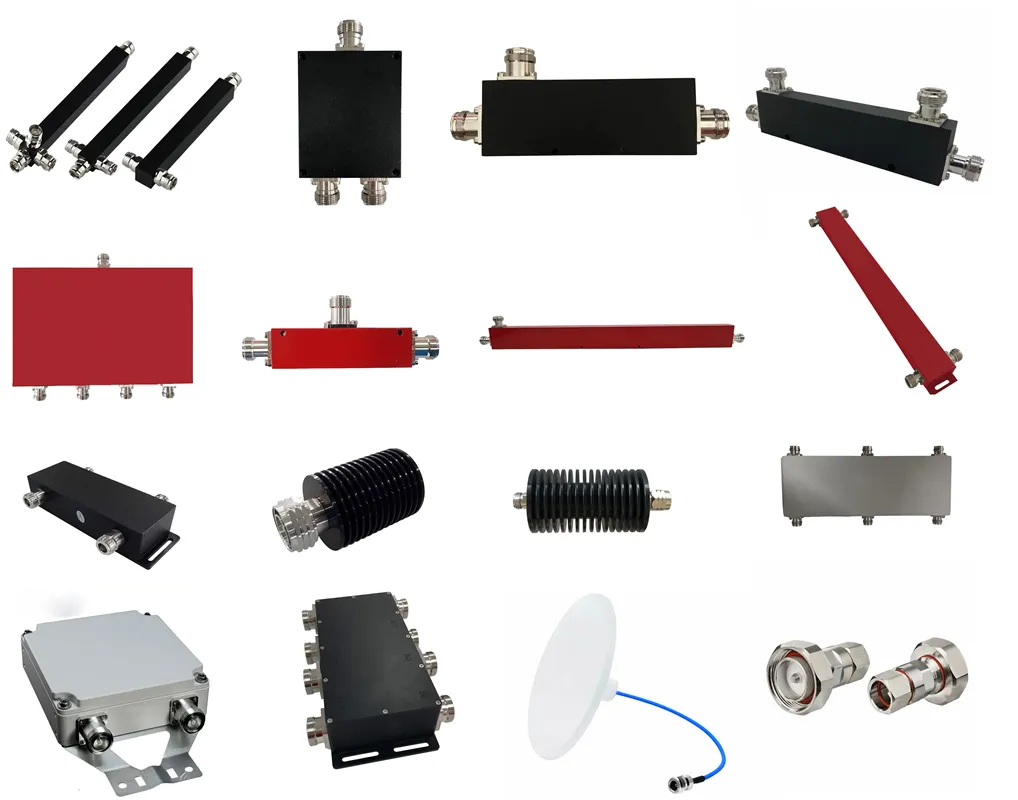

Main Products
