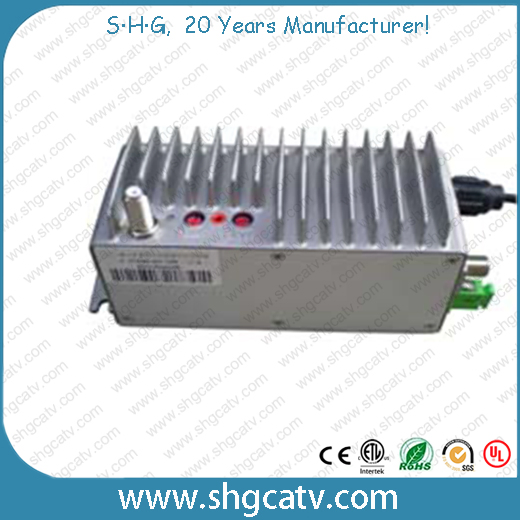

FTTB CATV Optical Receiver (OR-860LH-II)
1. FTTH CATV optical receiver2.2 output ports3. Input optical power: -2~7dBmSHG OR-860LH-II series optical receiver is a kind of lastest practical CATV network product designed according to our full research to market. This mahine adopts GaAs MMI......
Send Inquiry
Product Description
1. FTTH CATV optical receiver
2.2 output ports
3. Input optical power: -2~7dBm
SHG OR-860LH-II series optical receiver is a kind of lastest practical CATV network product designed according to our full research to market. This mahine adopts GaAs MMIC amplifing component combined with amplifing module, optimizing the circuitry design to make its output have better performance index when input optical power is in the range of -8~+2dBm. Output attenuation and equalization are adjustable, which makes CATV network project very convenient to debug. Digital and analogue signal can be transmitted at the same time. It is the priority of current HTTP network system construction.
Features
1.1310nm and 1550nm dual-window single-mode fiber receiving;
2. LED tube shows input optical power;
3. RF output level, gain and slope are adjustable;
4. -8~+2dBm optical control AGC range, it ensures the machine perfect performance index;
5. High response PIN photo-electrical convertor ensures the whole unit's perfect CNR index;
6. Perfect surge suppression circuitry can prevent surging and lightning stroke efficiently;
7. High-quality die-casting aluminum housing, which is characterized by dirty-proof, good shield and heat-dissipating, easy to install.
Main application
1. FTTH FTTP
2. FTTB
3. HFC
Status indicator
Input optical power status indicator: <=-7.5dB YELLOW
+2dBm~-7.5dBm GREEN
>=+2dBm RED
Certification:
CE, RoHS, CCC, ISO9001
Specifications:
2.2 output ports
3. Input optical power: -2~7dBm
SHG OR-860LH-II series optical receiver is a kind of lastest practical CATV network product designed according to our full research to market. This mahine adopts GaAs MMIC amplifing component combined with amplifing module, optimizing the circuitry design to make its output have better performance index when input optical power is in the range of -8~+2dBm. Output attenuation and equalization are adjustable, which makes CATV network project very convenient to debug. Digital and analogue signal can be transmitted at the same time. It is the priority of current HTTP network system construction.
Features
1.1310nm and 1550nm dual-window single-mode fiber receiving;
2. LED tube shows input optical power;
3. RF output level, gain and slope are adjustable;
4. -8~+2dBm optical control AGC range, it ensures the machine perfect performance index;
5. High response PIN photo-electrical convertor ensures the whole unit's perfect CNR index;
6. Perfect surge suppression circuitry can prevent surging and lightning stroke efficiently;
7. High-quality die-casting aluminum housing, which is characterized by dirty-proof, good shield and heat-dissipating, easy to install.
Main application
1. FTTH FTTP
2. FTTB
3. HFC
Status indicator
Input optical power status indicator: <=-7.5dB YELLOW
+2dBm~-7.5dBm GREEN
>=+2dBm RED
Certification:
CE, RoHS, CCC, ISO9001
Specifications:
| Items | Units | Specifications |
| Optical | ||
| Input wavelength range | nm | 1100~1650 |
| Optical input power range | dBm | -2~-7 |
| Optical return loss | dB | ≥ 50 |
| Optical Fiber Type | --- | Single Mode |
| RF | ||
| Bandwidth | MHz | 47~862 |
| RF output level | dBμ V | ≥ 96@-2dBm |
| Return loss | dB | ≥ 14 dB |
| Flatness, peak-to-valley | dB | ≤ ± 0.75 |
| Output port number | --- | 1 |
| Performance | ||
| CNR | dB | 48@-5dBm |
| CSO | dB | ≤ -60 |
| CTB | dB | ≤ -63 |
| Power | ||
| Power supply | V | AC160~265V or 30~60V |
| Power consumption max. | W | ≤ 15 |
| Physical | ||
| Optical connector type | --- | SC/APC |
| RF tie-in | --- | F-female |
| Operating temperature | -20~+50 | |
| Storage temperature | -40~+85 | |
| Dimension | mm | 200× 120× 60 |
| Weight | Kg | 0.65 |
