Product Description
1. Product name
20km SDI Extender by Single Fiber Optical Cable
2. Description
Beijing Hcstcom provides customers with the most cost-effective solution, could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The transmitter features a re-clocked and equalized SDI looping out; the receiver features two re-clocked and equalized SDI outputs.
3. Features
1-ch unidirectional 3G/HD-SDI video with 1-ch embedded audio
Optional 1-ch reversed RS485 ( terminal block) over one fiber
Range from 19.4Mb/s to 2.97Gb/s
SMPTE 425M (2.97Gb/s) clock recovery
Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
100m automatic cable equalization
Optional network management system
LED status indicators monitor the critical parameters
4. Specifications
A) Serial TV, BNC input
Signal: SMPTE 259M A, B, C, D, SMPTE 297M, SMPTE 305M, SMPTE 310M, SMPTE 344M, M2S& DVB-ASI
Channel: 2-channel (1-channel input, 1-channel ring out)
Reflection loss: > 15dB
Equilibrium: 0_300m @ 270MB/s
Connector: 75Ω BNC
B) Optics
Number: 1
Type: Single-mode (multimode optional)
Output power: -5 ~ -10dBm (0 ~ -5dBm for 80km)
Receiver sensitivity: -26dBm (-30dBm for 80km)
Wavelength: 1310nm /1550nm
Reflection loss: > 14dB
Dithering: < 0.2UI
Connector: FC/PC (SC/PC optional)
C) Serial TV BNC output
Output number: T-1 or 2-channel ring out, R-1-channel (optional)
Signal level: 800mV nominal
Rise/fall time: 900PS nominal
Overshoot: < 10% amplitude
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: 75Ω BNC
Wavelength: 1310nm(1550nm optional)
D) Power and environmental indicators
Operating temperature: 0° C~+50° C
Pressure: 1A@12VDC
Storage temperature: -40~85° C
Operating humidity: 5~95%(no condensation)
Storage humidity: 0~95% (no condensation)
Power: 12W
EMI/RFI: Meet FCC Part 15 Class A, EU EMC indication
Average time trouble-free: > 100000 hours
E) Other
Dimension: 260 mm L x 205 mm W x 25 mm
Weight: 1KG
EMI/RFI: FCC Part 15 Class A, EU EMC indicator
5. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links

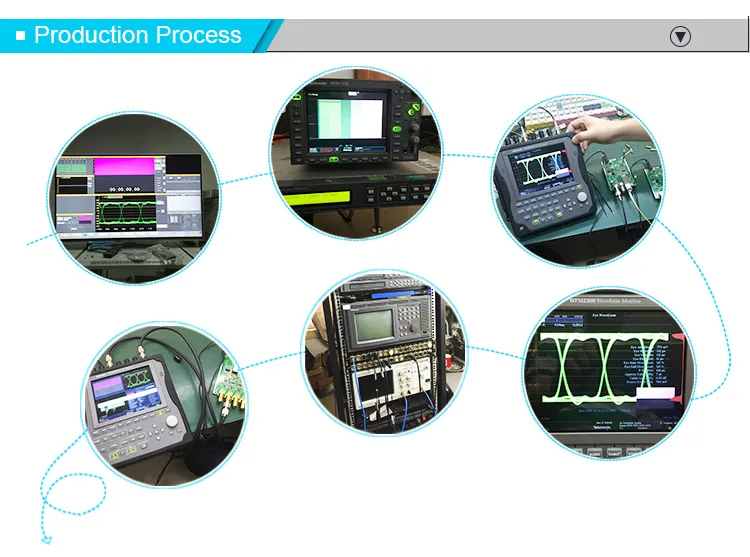

6. Company
