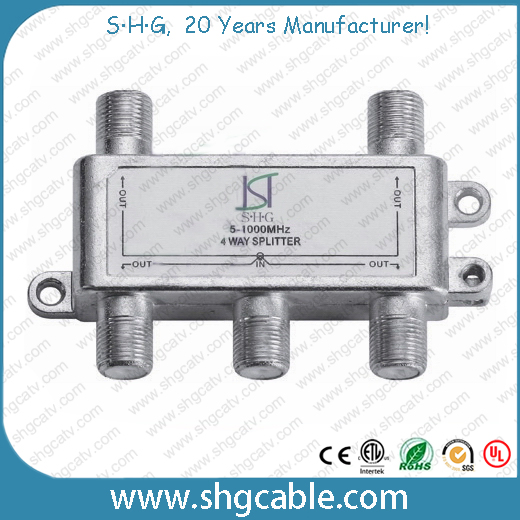

4 Way Indoor CATV Splitter
SHG 4 way Indoor CATV Splitters.Features:1. Low insertion loss, high return loss and isolation.2. Die cast aluminum housing3. RF frequency range 5 to 1000 MHz4. CE, RoHS, ISO9001Descriptions&......
Send Inquiry
Product Description
SHG 4 way Indoor CATV Splitters.
Features:
1. Low insertion loss, high return loss and isolation.
2. Die cast aluminum housing
3. RF frequency range 5 to 1000 MHz
4. CE, RoHS, ISO9001
Descriptions:
AC/RF bypass switch to provide uninterrupted downstream-subscriber service
Economical two-step upgrade to power passing matches incremental expenses with new revenues
AC blocking capacitors on each port to minimize RF signal distortions
Surge-resistant circuitry srctm for maximum reliability
1, 2, 4, 8-way capability for maximum design flexibility
Housing backwards compatibility supports economical faceplate upgrades
System open circuit time 0 ms
Mechanical:
Al360 housing with powder coating for superior environmental protection.
Sealed and swaged extended f-ports for maximum resistance to moisture ingress.
Tin plated brass f-ports to ensure a corrosion-resistant drop interface.
Operating temperature from -40degree to +60 degree.
EMI shielding minimum -110 dB.
Pressure test at 10 psi for 60 seconds under water.
Others:
CATV outdoor taps (power passing)
CATV outdoor taps (non power passing)
CATV outdoor splitters
CATV indoor taps and splitters
CATV power inserters
CATV power supply
Features:
1. Low insertion loss, high return loss and isolation.
2. Die cast aluminum housing
3. RF frequency range 5 to 1000 MHz
4. CE, RoHS, ISO9001
Descriptions:
AC/RF bypass switch to provide uninterrupted downstream-subscriber service
Economical two-step upgrade to power passing matches incremental expenses with new revenues
AC blocking capacitors on each port to minimize RF signal distortions
Surge-resistant circuitry srctm for maximum reliability
1, 2, 4, 8-way capability for maximum design flexibility
Housing backwards compatibility supports economical faceplate upgrades
System open circuit time 0 ms
Mechanical:
Al360 housing with powder coating for superior environmental protection.
Sealed and swaged extended f-ports for maximum resistance to moisture ingress.
Tin plated brass f-ports to ensure a corrosion-resistant drop interface.
Operating temperature from -40degree to +60 degree.
EMI shielding minimum -110 dB.
Pressure test at 10 psi for 60 seconds under water.
Others:
CATV outdoor taps (power passing)
CATV outdoor taps (non power passing)
CATV outdoor splitters
CATV indoor taps and splitters
CATV power inserters
CATV power supply
| ITEM | Model: SPDR-xW | |||
| SPDR-2W | SPDR-3W | SPDR-4W | ||
| Splitting Loss (dB) | 5-50MHz | 3.5 | 5.8 | 7.0 |
| 50-550MHz | 3.6 | 6.0 | 7.0 | |
| 550-750MHz | 3.8 | 6.5 | 7.5 | |
| 750-1000MHz | 3.8 | 6.5 | 7.5 | |
| Isolation (dB) | 5-50MHz | 30 | 28 | 28 |
| 50-550MHz | 30 | 28 | 28 | |
| 550-750MHz | 30 | 28 | 28 | |
| 750-1000MHz | 30 | 28 | 28 | |
| Return Loss (dB) | 5-50MHz | 22 | 20 | 20 |
| 50-550MHz | 20 | 20 | 20 | |
| 550-750MHz | 20 | 20 | 20 | |
| 750-1000MHz | 18 | 18 | 18 | |
| Shield Factor (dB) | ≥110 | |||
| Dimension (mm) | 54x47x15.5 | 54x47x15.5 | 76x47x15.5 | |
| Weight (g) | 28.5 | 31.5 | 41 | |
