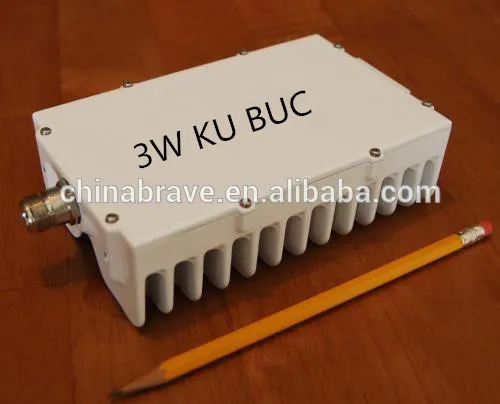

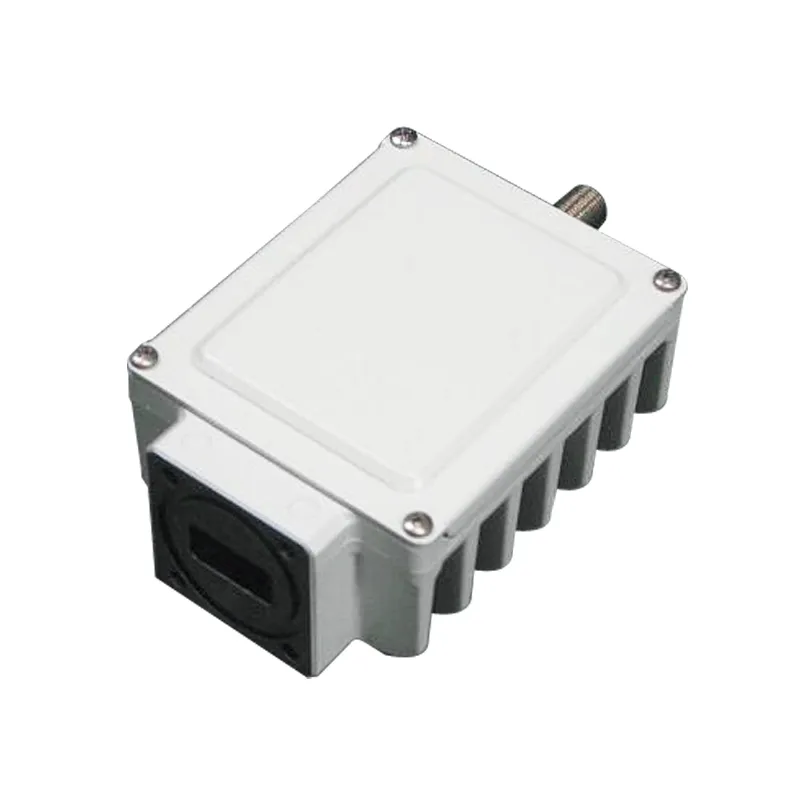

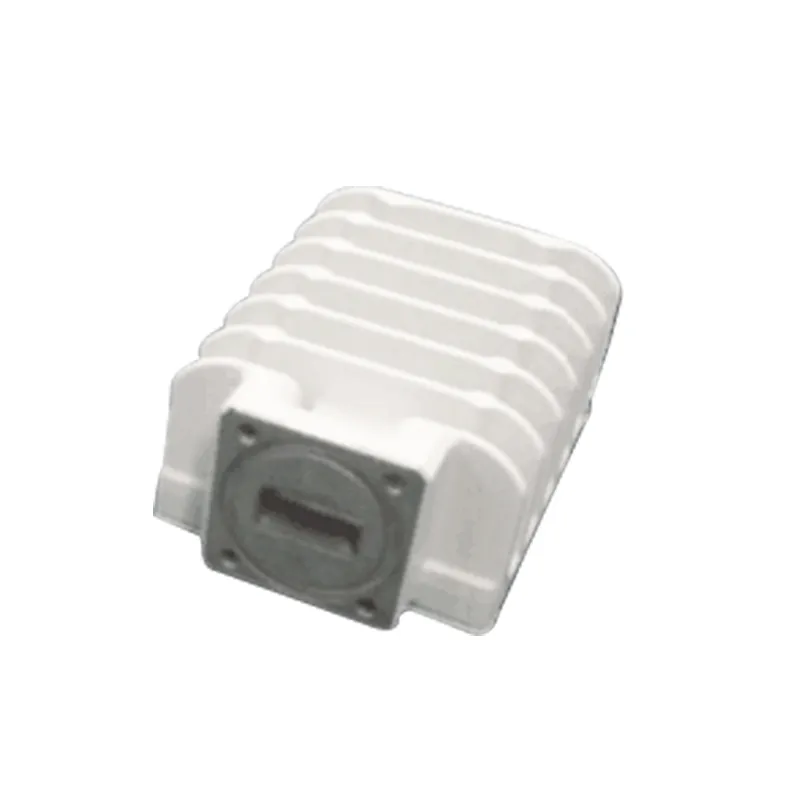

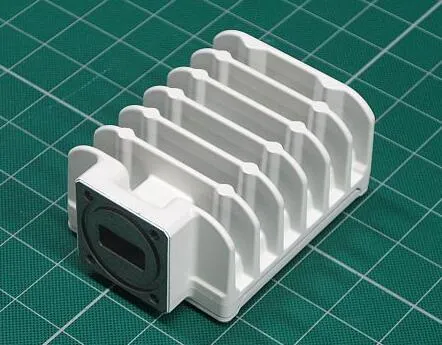

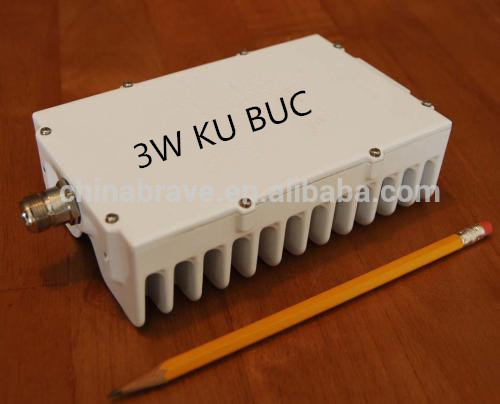

2watt Wr75 Ext Ref Ku-Band Buc 12.8GHz 13.05GHz 14.0-14.5GHz 13.75-14.5 GHz Ku Buc Transmitter

Tx specification :

1.

IF Input Frequency Band: 950-1450MHz

Local Oscillator frequency: 13.05GHz

RF Output Frequency Band : 14.0-14.5GHz


2.

input frequency (GHz)   950 - 1700 MHz
l.O. frequency (GHz)        12.80 GHz
Output frequency (mHz)  13.75 - 14.5 GHz

Local Oscillator Pease Noise (RMS 100H to 1MHz) : 2.5°

Input impedance: 75Ω

Input VSWR: 2.5:1

Input power range: -25 to -5dBm

Output saturated powe: 33dBm (2W) typical

Output saturated power : 32-24.5dBm versus all condition

Power flattens: 2dB typical

Output noise :  -94dBm/Hz

Output spurious level:

13.6-14.9GHz.:  -25dBm

28.0-29.0GHz:  -20dBm

Linear Gain : 59 min

DC Characteristics:

Input Voltage Range at Tx IF connector: 13-24V

Tx Power consumption : 18W typical

Non Damage voltage : 0-30V

Environmental condition

Operational temperature range :-40 -70°C

Non-operating temperature : -50 -80°C

Moisture/humidity protection: IP67

Physical/Electrical Interfaces:

 75-Ohm female F-Type connector

DC power

IF L Band

Output Tx Signals via WR 75 without grooved with gasket
