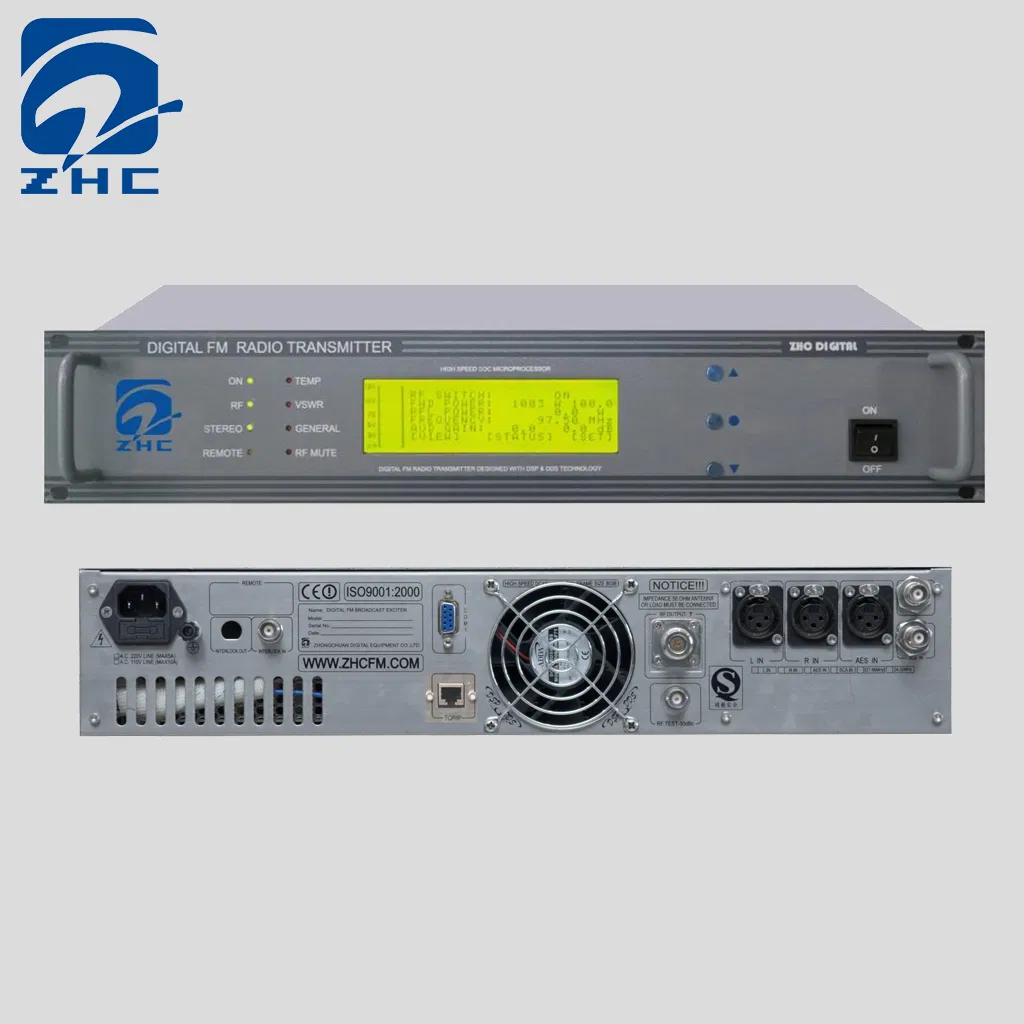

100W FM Broadcasting Transmitter

New High Reliability 100W FM Broadcast Transmitter

• Professional FM transmitter(Exciter) with CD-quality broadcasting.
• All digital technology executes analog FM broadcast. DSP(Digital Signal processor)+DDS(Direct Digital Synthesis frequency) . Advanced MCU control system+big size LCD displayer.
• Columnar dynamic display audio signal . Supporting AES/EBU standard digital audio input. 30W RF power output with AGC. 19 inches stainless steel cabinet,2U high.

• Adopting new digital signal process(DSP)technology.
• Direct digital synthesis frequency (DDS)thchnology
• Advanced MCU control system.
• Columnar dynamic display audio signal.
• Perfect audio effect of CD sound.
• Supporting AES/EBU standard digital audio input.
• The standard frequency of RF output is 87.00~108MHz,with the step of 10kHz
• Electric control AGC controls the zero deviation of output power.
• LCD can synchronously display the work parameters.
• RS-232/485 serial communication remote control and telemetering.
• 1U,19-inch standard chassis structure.

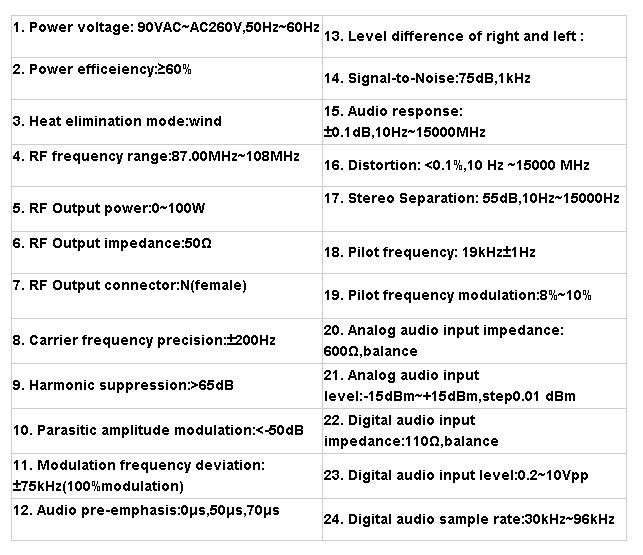

Technical Specifications :

Company show:

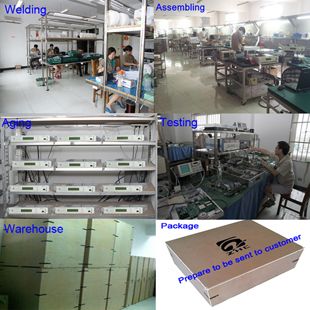

Working progress:


Common Problems:

In order to be more comprehensive understanding of the knowledge about our products,we collect all the analyses of problems for every order,hope it will help you.

Q1. What these equipments used for?
A1. We are original manufacturer in FM Radio & TV Broadcasting equipments; they are professional used for FM Radio & TV Broadcasting Station (Transmitting equipment.)

Q2. What equipment & solution your company can provide?
A2. We can do complete solution for FM Radio Station System. It includes:Studio--Link--Transmitter--Cables--Antenna.
We also can provide complete Transmitting part of TV Station. It includes:Link-Transmitter-Cables-Antenna.

Q3. How large areas can One Station cover?
A3. One FM or TV Station can cover one city or one town.
The Maximum cover ranges of one station can not over 100KM Radius because the Earth is Curve.
You can use Multiple Stations & Different Frequency to cover larger area.

Q4. How do I choose suitable equipments for my station?
A4. The most import factors are Power and Frequency.
We need to know the Power and Frequency you need exactly.
How long the distances do you want to cover in Radius?
How height your Antenna can be installed?

Q5. How to calculate Broadcasting equipment Cover Range?
A5. The Cover Range depends on 4 factors:
1. Power from Transmitter; 2. Height of Antenna; 3. Gain from Antenna; 4. Around Environment.
Then we can know the cover range of your station.

Q6. Is the Frequency Adjustable?
A6. FM Radio Band Frequency is 87~108MHz, TV Band Frequency includes UHF/VHF band.
For FM Radio Transmitter; Power Below 2KW is all adjustable. Above 2KW would be narrow.
For TV Transmitter; all Frequency Band is very Narrow, only can contain around 3 Channels; so it's not adjustable.

Q7. How to do installation of these equipments?
A8. For small power station, the equipments are very easy for installation.
For large power station, we can send our engineer to your country to help you do the installation, but you should pay the cost.
We also can do training for your engineer here in our company.

Q8. How to operate these broadcasting equipments?
A9. We provide All-English user manual; All-English operation software in our equipment.
We also can do training for your engineer here in our company.

Q9. What about after sales?
A10. The warranty time is one year after goods leaving factory.
We can provide technical support from internet or in our company.
We can send spare parts to you directly when the equipment damaged.
