China 1 GHz 2 Output Indoor Optical Receiver

Product Description

Feature

1.High response PIN photoelectric conversion tube.
2.SMT circuit design
3.SCM control equipment working, LCD display the parameters
4.Excellent AGC performance, when the input optical power range is -9~+2dBm, the output level
keep unchanged, CTB and CSO basically unchanged.
5.Reserved data communication interface, can connect with network management responder

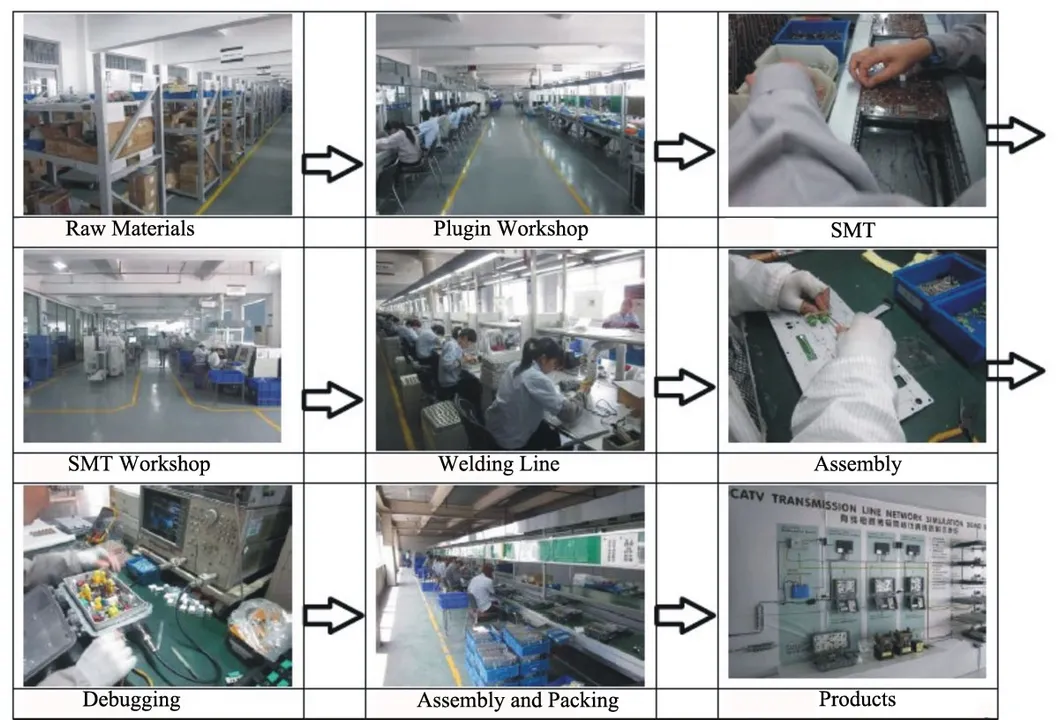

Product Process

1 GHz 2 Output Indoor Optical Receiver

Item	Unit	Technical Parameters
Forward optical receiving part
Optical Parameters
Receive Optical Power	dBm	-9 ~ +2
Optical Return Loss	dB	>45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Connector Type		FC/APC, SC/APC or specified by the user
Fiber Type		Single Mode
Link Parameters
C/N	dB	≥ 51(-2dBm Input)
C/CTB	dB	≥ 65	Output level 108 dBμV Equilibrium 6dB
C/CSO	dB	≥ 60
RF parameters
Frequency Range	MHz	45 ~862/1003
Flatness in Band	dB	±0.75
Rated Output Level	dBμV	≥ 108
Max Output Level	dBμV	≥ 114
Output Return Loss	dB	≥14
Output Impedance	Ω	75
Electrical control EQ range	dB	0~10
Electrical control ATT range	dBμV	0~20
Reverse Optical Transmit Part
Optical Parameters
Optical Emission Wavelength	nm	1310±10, 1550±10 or specified by the user
Output Optical Power	mW	0.5, 1, 2
Optical Connector Type		FC/APC, SC/APC or specified by the user
RF Parameters
Frequency Range	MHz	5 ~ 65(or specified by the user)
Flatness In Band	dB	±1
Input Level	dBμV	72 ~85
Output Impedance	Ω	75
General Performance
Power Voltage	V	A: AC(150~265)V; B: AC(35~90)V; C: DC48V
Operating Temperature	°C	-40~60
Storage Temperature	°C	-40~65
Relative Humidity	%	Max 95% no condensation
Consumption	VA	≤ 30
Dimension	mm	483(L)* 345(W)* 44(H)
