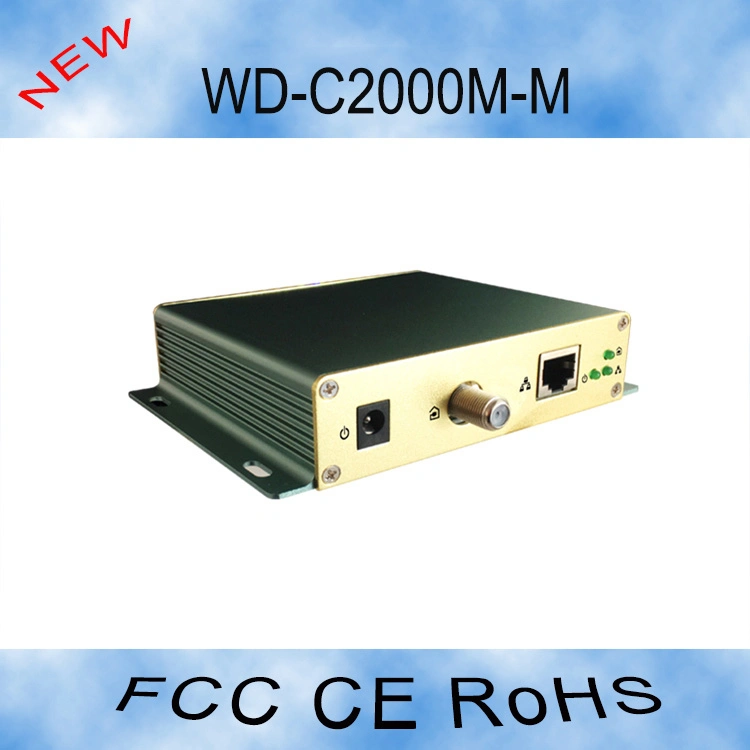

WD-C2000M-M Coaxial Adapter for The High Digital Network Monitoring System
Brief introduction With the development of digital information age, traditional analog video monitoring camera will be replaced by the HD digital IP camera, but in the procedure of traditional monitoring system improvement, re-wiring is a difficult problem, including the difficulty of execution, en......
Send Inquiry
Product Description
Brief introduction
With the development of digital information age, traditional analog video monitoring camera will be replaced by the HD digital IP camera, but in the procedure of traditional monitoring system improvement, re-wiring is a difficult problem, including the difficulty of execution, environment damage,time limit of the project, cost etc...WD-C2000M-M and WD-C2000M-PoE make use of the existing video cable to transfer the network signals, can upgrade the traditional monitoring system without any wiring and cost quickly, just plug and play without setting. And Built-in PoE Injector to provide DC55V, 30w power via CAT5E / CAT6.

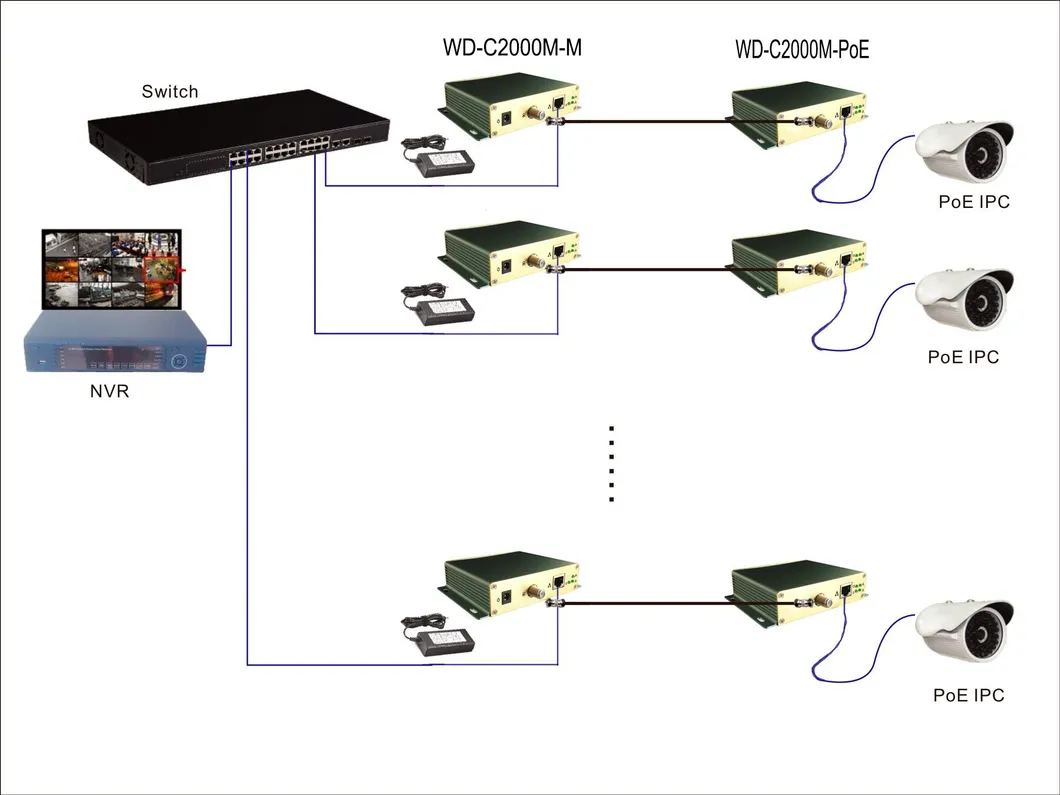

Topology
Specification:
Model | WD-C2000M-M |
Interface | 1*100/1000 Base-TX self-adaptation RJ45, 1*F type 75 1*external power |
LED display light | PWR G.hn ETH |
Frequency band | 2-200MHz |
Protocol | G.hn, IEEE 802.3 IEEE 802.3u 10/100/1000Ethernet Standard |
Security | 128-bit AES |
Transmission rate | 2000Mbps |
Modulation | OFDM |
Transfer distance | 1000m |
Power consumption | ≤5W |
O/S | Windows 98/ME/NT/2003/7,Windows XP Home/Pro,Mac OSX ,Linux |
Size | 128.5*93*28.3mm(L*W*H) |
Weight | 350g |
Operating environment | Working temperature:0ºC-70ºC |
Working humidity:10%-85% no condense | |
Certification | FCC,CE,ROHS |
Working voltage | DC 44-57V |
Installment:
1,Replace the analog camera to the net camera(IPCAM) or add a video server.
2,Add a WD-C2000M-PoE coaxial cable Ethernet bridge behind the side of IPCAM or video server which support PoE to supply power.
3,Link a WD-C2000M-M local side coaxial Ethernet bridge at the other side of the coaxial cable after being connected with the coaxial cable.
4,Put power adapter DC44-57V to WD-C2000M-M.
5,The traditional analog monitoring system is upgraded into the high digital network monitoring system through above operations.
6,Power over Coaxial and Power over Ethernet.
