Power Amplifier for Jammer Module GPS Band 1550 -1620

PRODUCT DESCRIPTION:

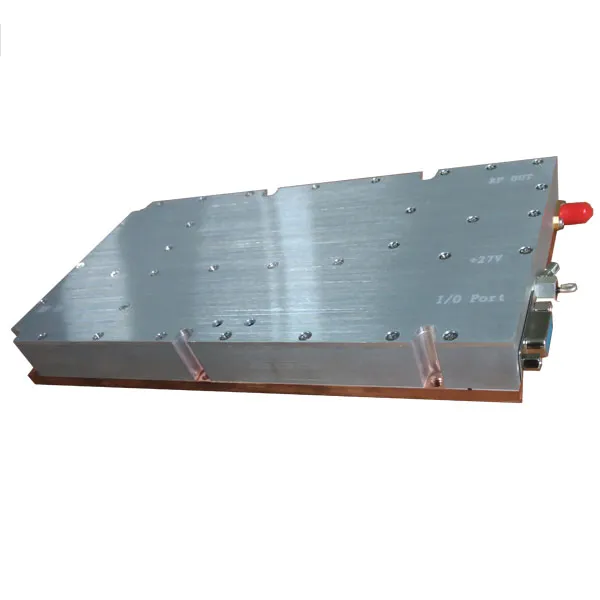

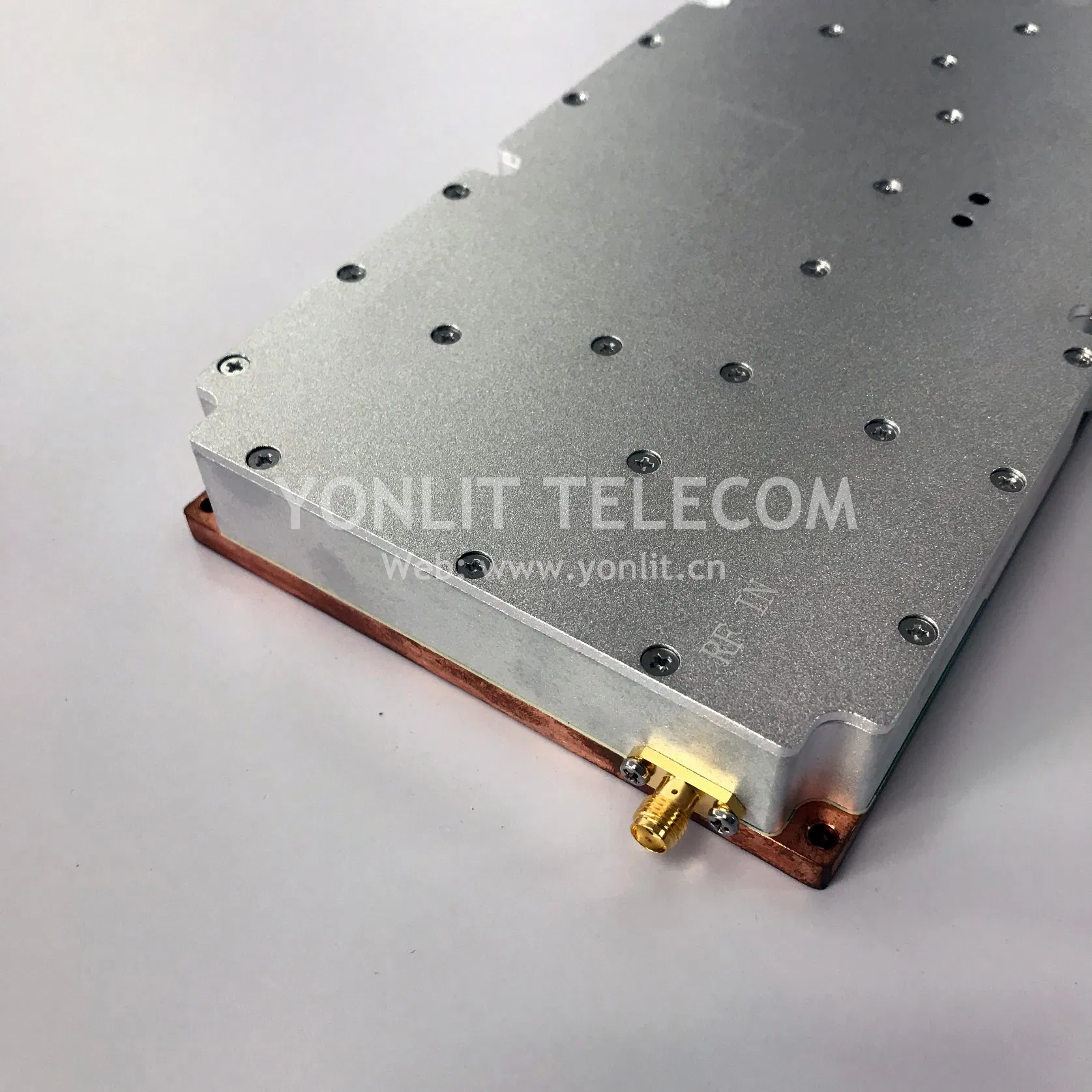

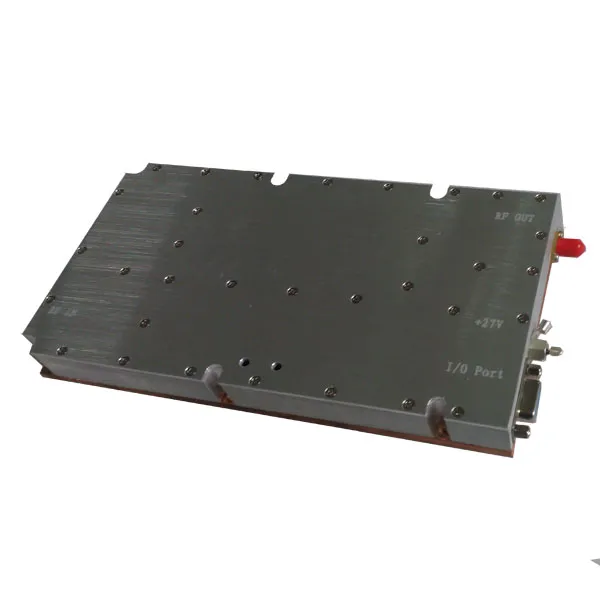

This wideband Power Amplifier module is working for L&GPS RF bands, model type: PWR-GPS-WB with aluminum case, it need operating on heatsink.

This product are using GaN technology that is able to cover the superwide bandwidth, power range can be customized from 44-50dBm. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB9 serial port.

More function and parameters are avaiable to customized according to actual requirement.

TECHNICAL SPECIFICATION:

Frequency:
900-1300 MHz
1100-1600MHZ
1170-1280MHz
 1550-1620Mhz


Output Power: 100 watts

Input Power: 0-5dBm

Efficiency >35% (CW)

Modulations: CW, AM, FM

Class of amplifier: Class AB

Operating case temperature: -40 to +60oC

DC Input: +28VDC

PAYMENT TERMS, ORDER INFO & PACKING

We accept T/T and Western Union for payment.

Leadtime within 1 month, subject to actual requirement might have change.

Product will got packed in carton with foam, each unit will have single box for packing.

If need more information, please send us email.





CONTACT INFO:


Ally Zhu


Shenzhen Yonlit Telecom Technology Co., Ltd.

Website: http://yonlit.en.made-in-china.com, http://yonlit.en.made-in-china.com, http://yonlit.en.made-in-china.com


Add: No.B401-403, QinYe Building, XinAn Sixth Road,Subdistrict 82, BaoAn District, Shenzhen, China.
