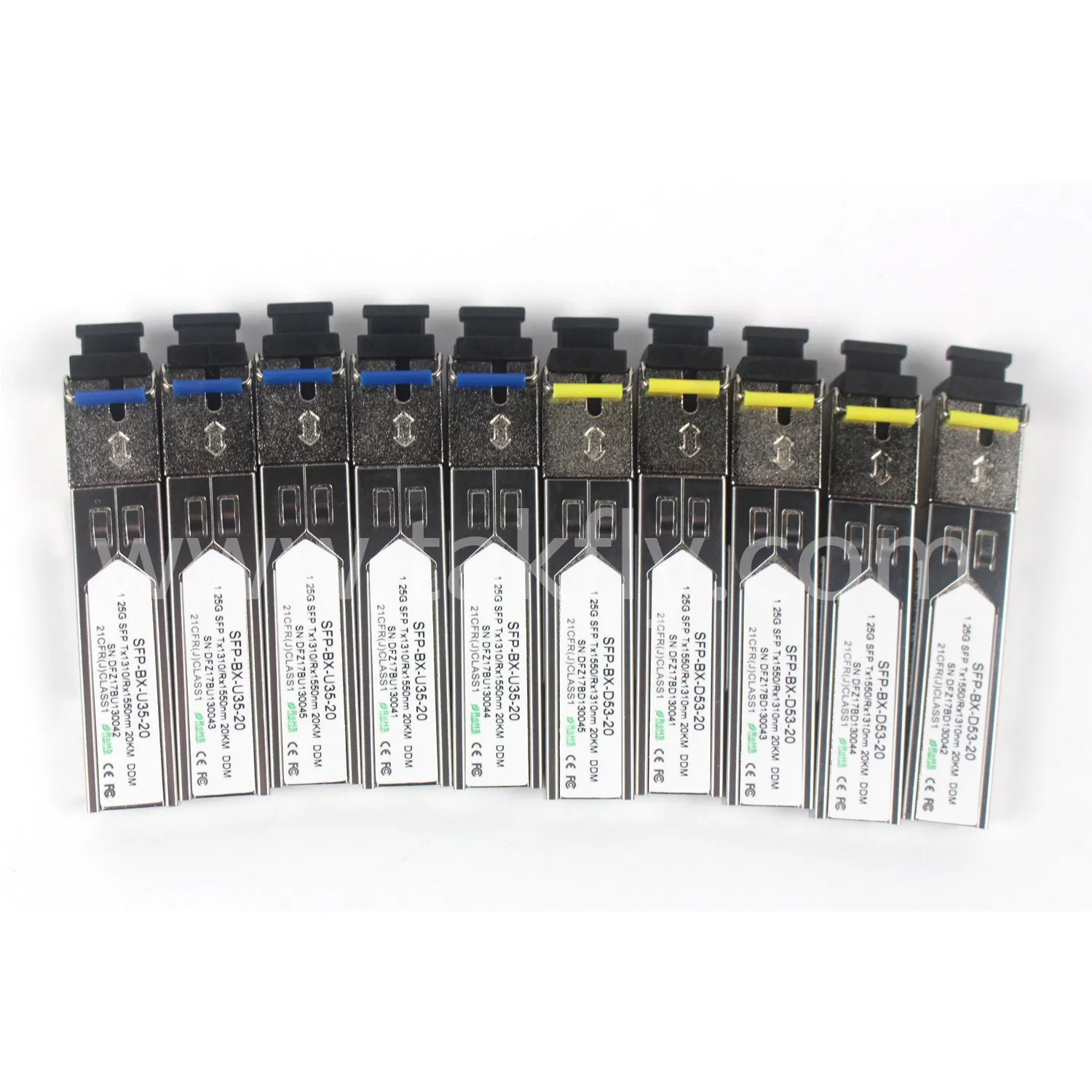

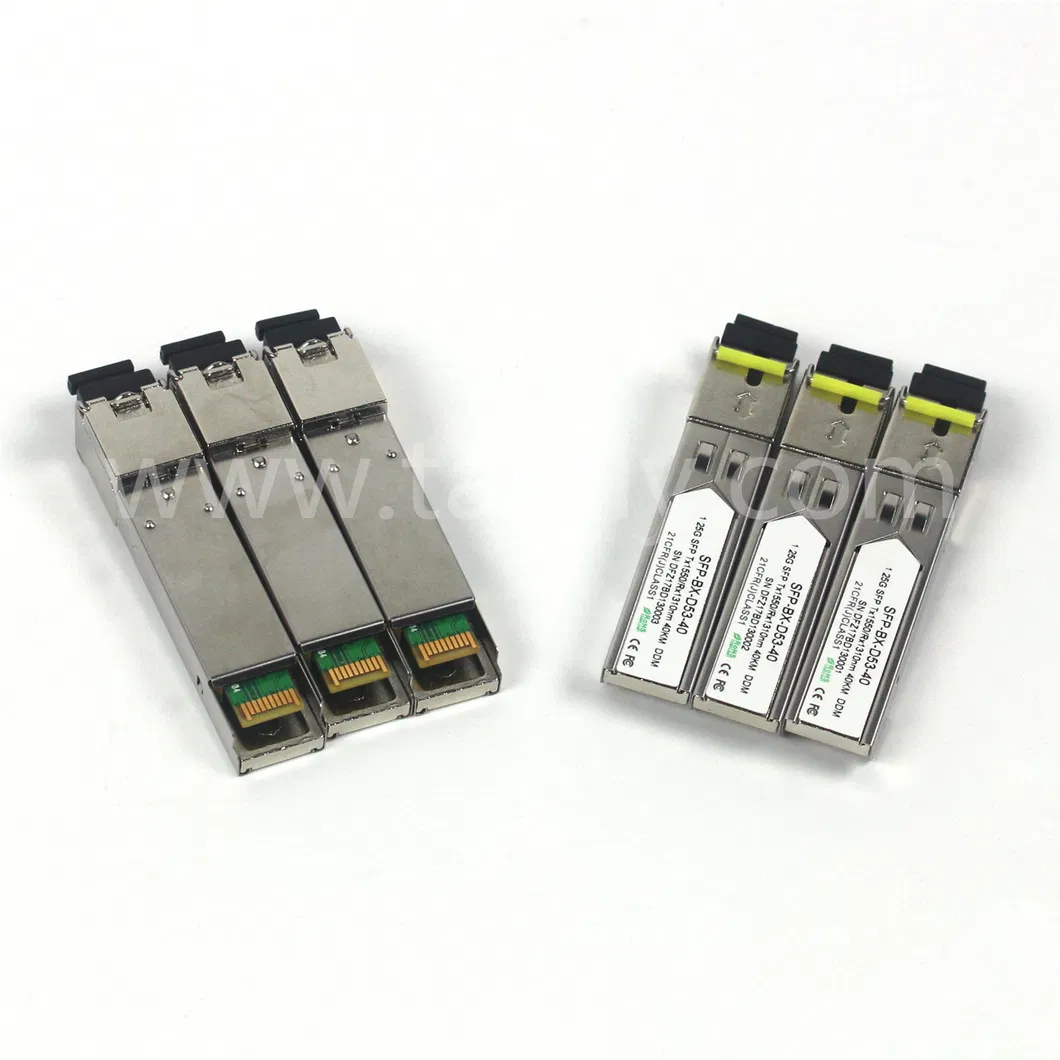

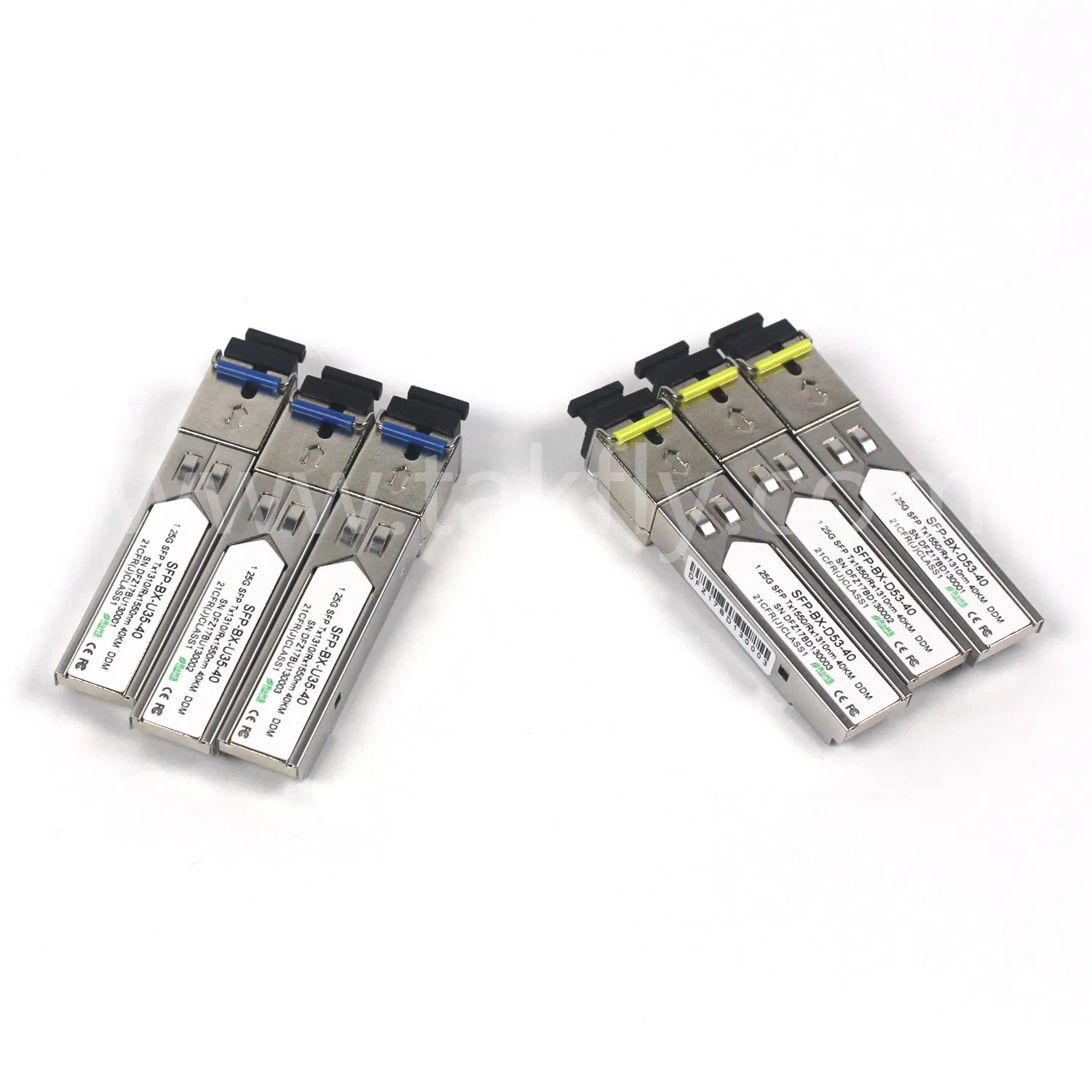

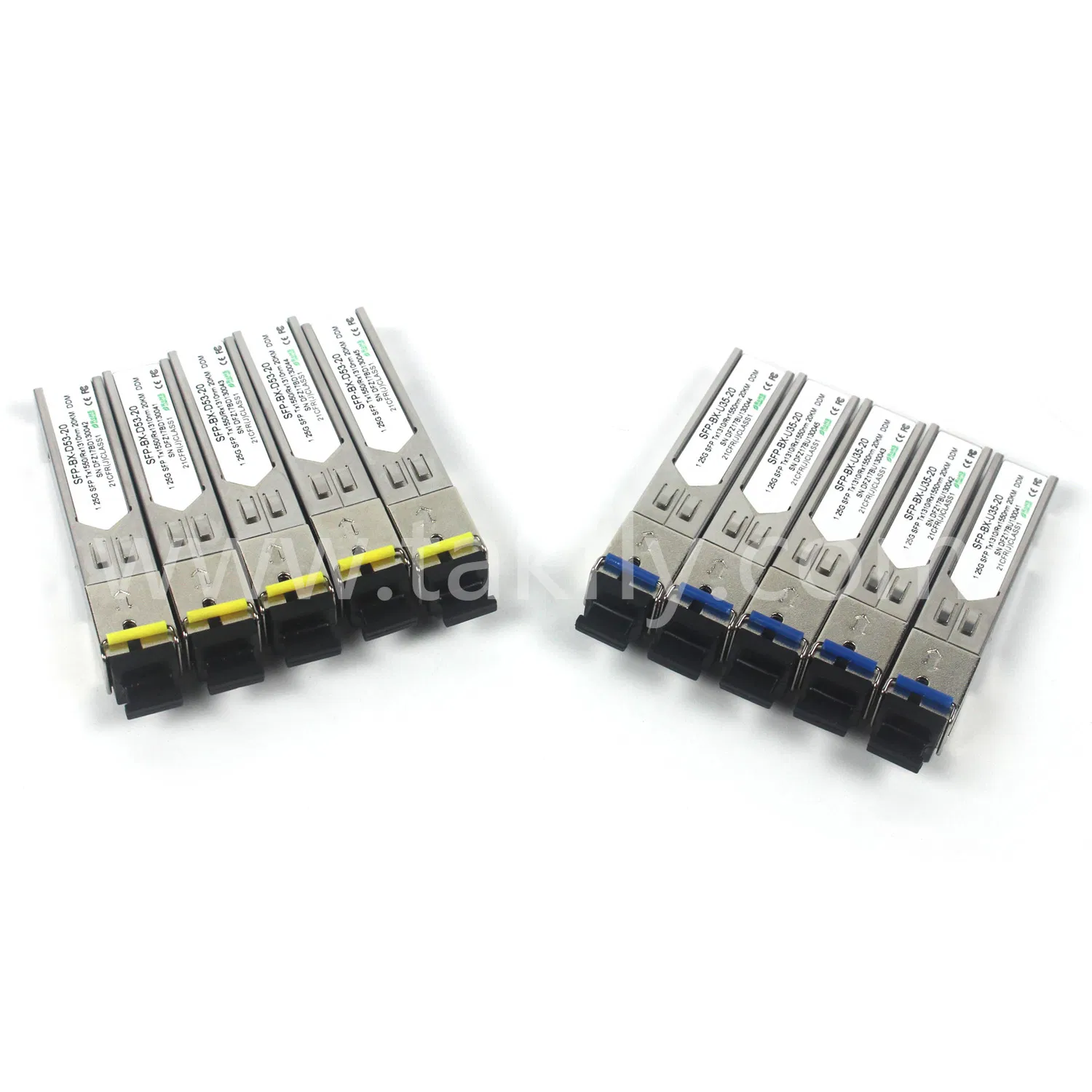

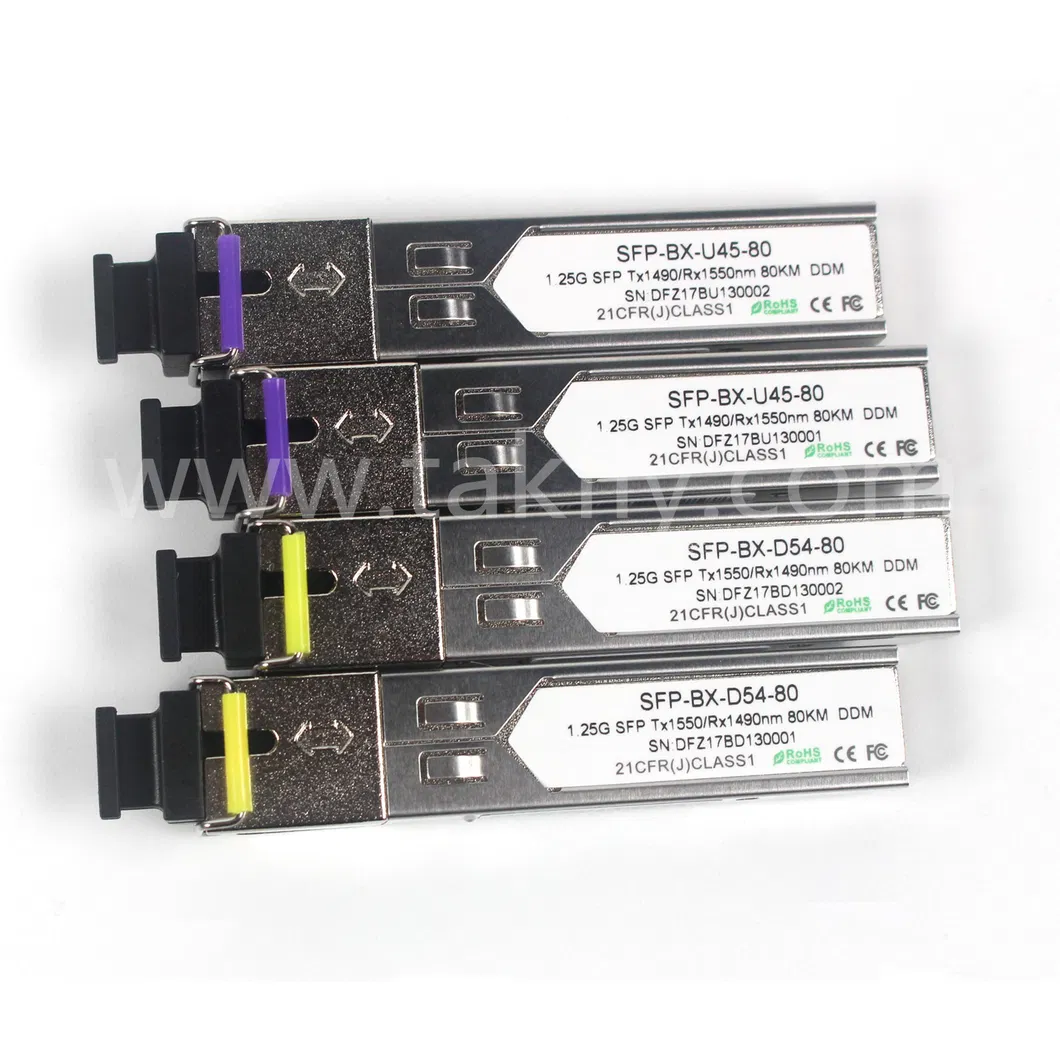

1.25g Sc 1310/1490/ 1550 Bidi Sc 20/40/80km SFP Transceiver Ddm

SFP Optical Transceivers are hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.

Description:
The GBIC transceiver is high performance, cost effective module supporting dual data-rate of 1.25Gbps/1.0625Gbps and from 20km transmission distance with SMF.

The transceiver consists of two sections: The transmitter section incorporates a FP laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.

The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.

The standard serial ID information Compatible with GBIC MSA describes the transceiver's capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the two-wire serial CMOS EEPROM protocol. For further information, please refer to SFF-8053


Features:

• Dual data-rate of 1.25Gbps/1.0625Gbps operation
• 1310/1550nm FP laser and PIN photodetector for 20km transmission
• Simplex SC optical interface
• Standard serial ID information compatible with SFF-8053
• +3.3V/5Vsingle power supply
• RoHS Compliant
• Operating case temperature: Standard : 0 to +70°C

• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems




Ordering information

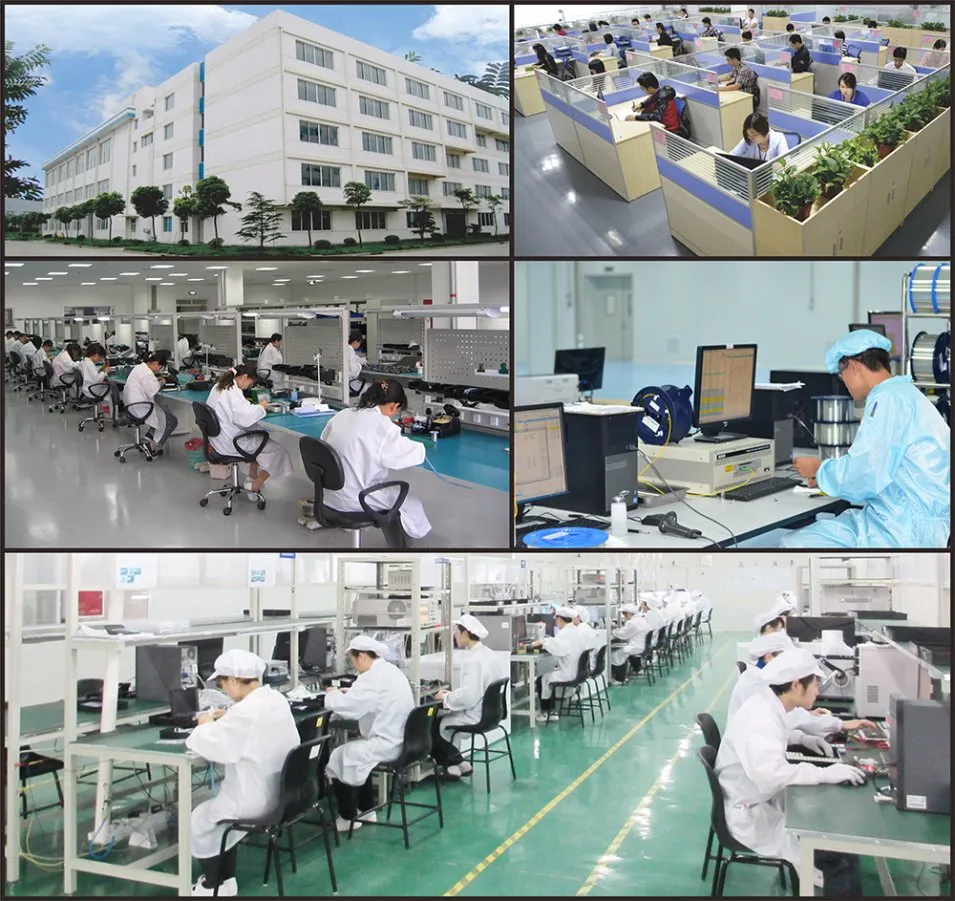

1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week

2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery

3.Competitve price.As a factory,costs are controllable

4.Flexible payment term.T/T,L/C,paypal is availble

5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc

6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.
