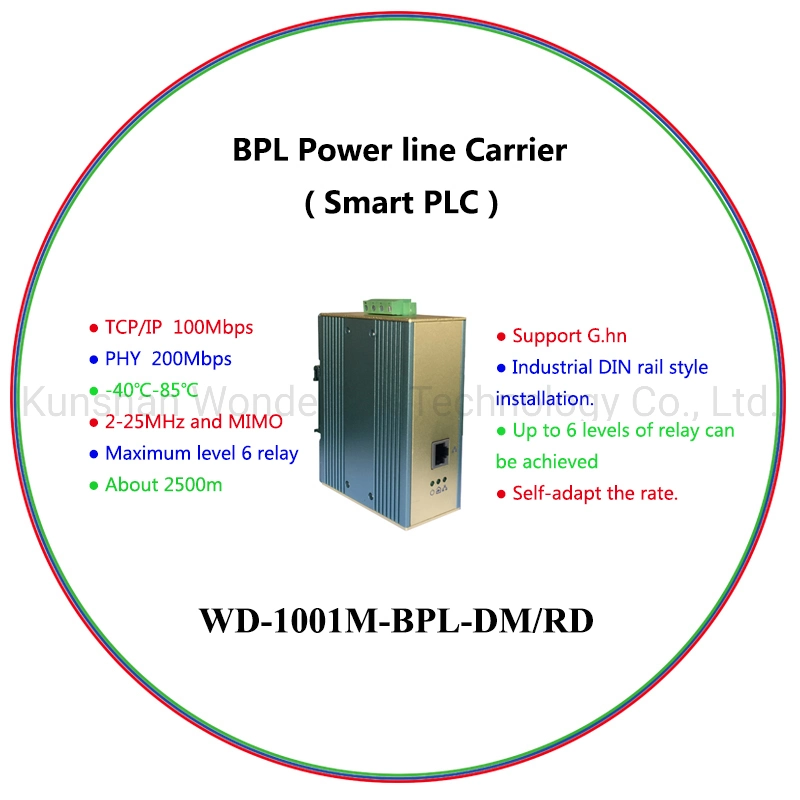

WD-1001M- BPL -DM/RD Power line Carrier For Industrial Powerline Communication
Brief introduction:BPL Smart Powerline Ethernet Bridge is an industrial powerline communication product developed by WonderTek. The product adopts the ITU-T G.9960 G.hn communication protocol standard, at present has been widely used in intelligent manufacturing, intelligent building, intelligent ci......
Send Inquiry
Product Description
Brief introduction:
BPL Smart Powerline Ethernet Bridge is an industrial powerline communication product developed by WonderTek. The product adopts the ITU-T G.9960 G.hn communication protocol standard, at present has been widely used in intelligent manufacturing, intelligent building, intelligent city street light monitoring, smart meters, solar panels and communications in dangerous environment, Marine applications, automotive applications, aerospace applications, railway, mining, intelligent storage, intelligent sorting, automatic garage cable or sliding contact line, and many other field.
1.1 Highlight
1.1.1 Technical parameters
- Support G.hn
- Industrial DIN rail style installation.
- Up to 6 levels of relay can be achieved
- Self-adapt the rate.l
- Support Remote Firmware update(TR069).
- 802.3D Ethernet Bridge.
- 802.1Q VLAN.
- Quality of Service(QoS) .
- IGMO(IPv4)Snooping&MLD(IPv6)Snooping.
- Working temperature: -40ºC-85ºC.
- Operating humidity: 10%-85% no condense.
- Storage humidity:5%-90% no condense.
- ITU-T G.9960
- IEC 60529
- IEC 50022
- IEC 60068-2-6
Specification:
| Interface | 1*LAN 10/100/1000Base-TX self adaption RJ45 port,MDI/MDX support |
| LED display lights | PWR(power light), PLC(PLC signal light), ETH(Ethernet light) |
| Transfer band | 2-25MHz and MIMO |
| protocol(PHY) | ITU-T G.9960 (G.hn) IEEE802.3,IEEE802.3x, IEEE802.3u |
| Security | 128-AES |
| Transfer rate(PHY) | 200Mbps |
| Number of each group | 64 |
| Modulation | OFDM |
| Maximum effective data transfer rate | TCP/IP 100Mbps |
| Manageability | Remote Firmware update,support TR-069(optional) |
| 802.1D Ethernet Bridge | |
| 802.1Q VLAN | |
| Quality of Service(QoS) | |
| Operating temperature | -40ºC-85ºC |
| Size | 120*90*45mm(L×W×H) |
| Weight | About 0.30kg |
| Operating environment | working temperature:-10ºC-85ºC working humidity 5%-90% non-condensed state |
| Certification | FCC,CE class B,WEEE,RoHS |
| Relay number | Maximum level 6 relay |
| Transmission distance | About 2500m |
| Transmission line | Three-wire transmission MIMO Mode ,Two core SISO mode |
1.2 Features
(1) Packet loss:≤0.1%(100M,load 70%);
(2) Support 7*24 hours all weather operation;
(3) Hardware watch dog function;
(4) PING<2MS.
1.3 Immunity of ESD
The testing voltage which the device should be beared: ±6kV direct Discharge, ±8kV air discharge;
Discharge number in Each sensitive testing point: Plus-n-Minus 10 times each;
Every time the discharge interval is 1 s.
According to B/T 17626.2-2006.
1.4 Immunity of electrical fast transient impulse group(Common mode)
The testing voltage which the device should be beared:
Between the power supply voltage port and ground: ±2.0kV;
Between signal circuit and ground: ±1.0kV;
Repetition frequency: 5KHz;
Test duration: 1 min/ time;
Testing times: Plus-n-Minus 5 times each.
According to GB/T 17626.4-2008.
1.5 Anti interference of surge impact
The testing voltage which the device should be beared: ±2kV;
The interval of continuous impulses: 1min/time;
Test number: Plus-n-Minus 5 times each.
According to GB/T 17626.5-2008.(protection: all models protection and varistor series of discharge tube type)
1.6Anti- vibration
Meet the demand of MX3 in TB1433(0-200Hz,2g acceleration, maximum amplitude 7mm), interface with no loose, device with no Sealing off and drop in the test.

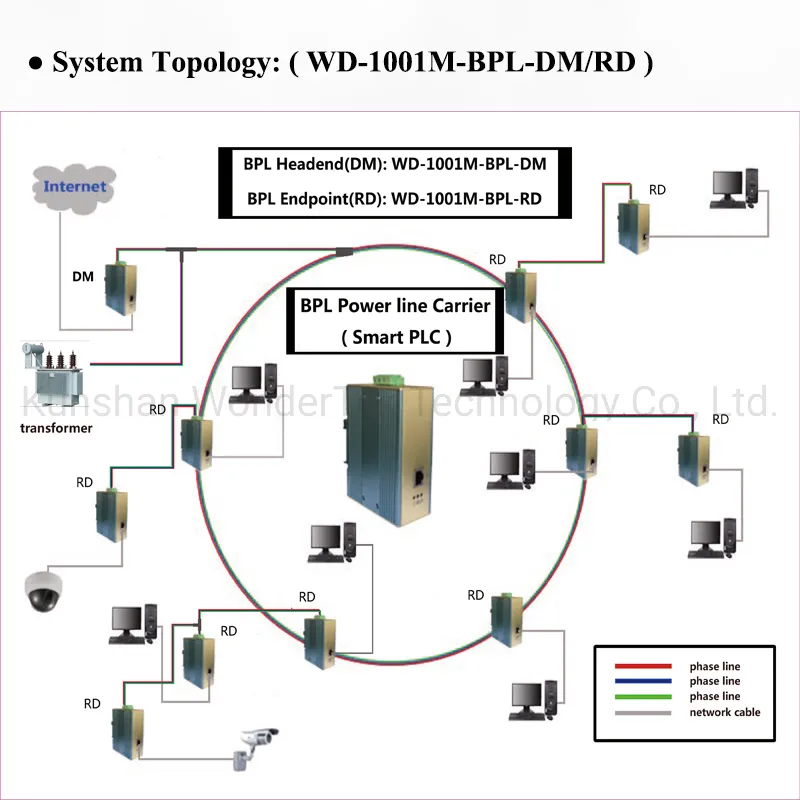

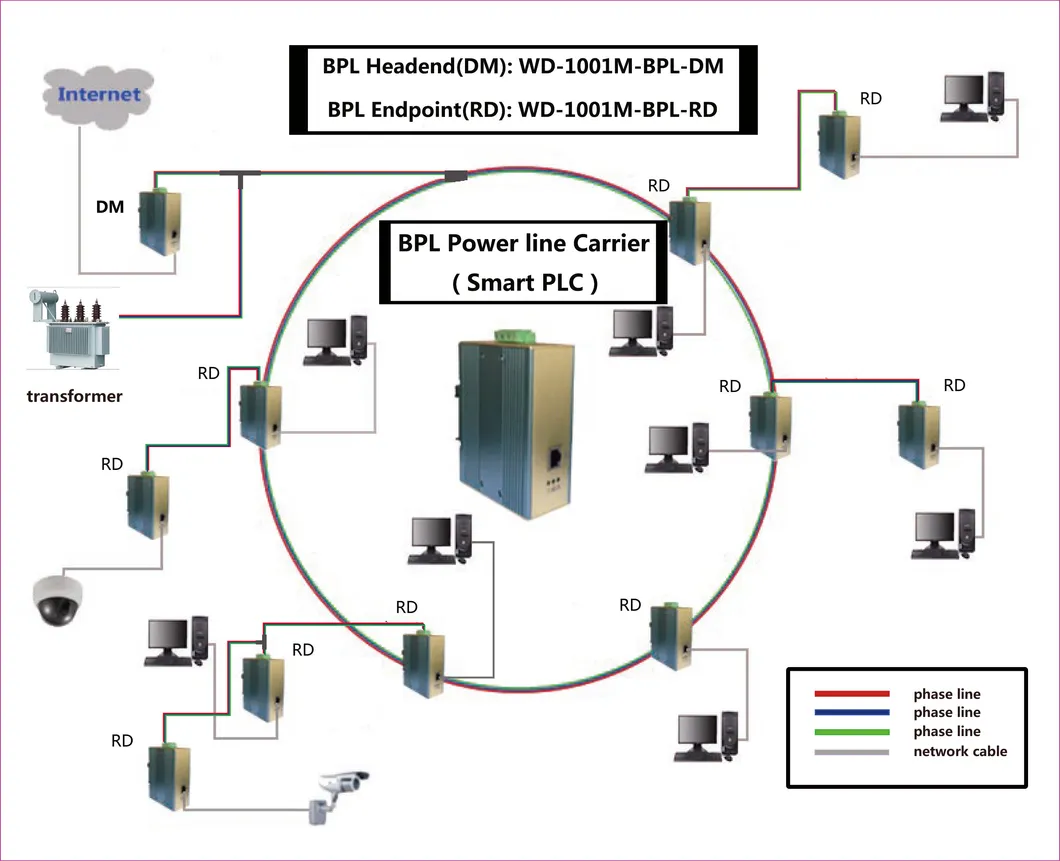

1.7 System topology
1.8 Product model selection
| Model | Ethernet Port | Line Environment | Network Structure |
| WD-1001M-BPL-V3-DM | 1 | AC(3 phases) | Only three phase connection, and according to the unified standard wiring (85-520V) |
| WD-1001M-BPL-V3-RD | 1 | AC(3 phases) | Only three phase connection, and according to the unified standard wiring (85-520V) |
| WD-1001M-BPL-S-DM | 1 | AC(phase + null + ground) | Single phase with or without ground (85-520V) |
| WD-1001M-BPL-S-RD | 1 | AC(phase + null + ground) | Single phase with or without ground (85-520V) |
| WD-1001M-BPL-DC01-DM | 1 | DC | 9-36V |
| WD-1001M-BPL-DC01-RD | 1 | DC | 9-36V |
| WD-1001M-BPL-DC02-DM | 1 | DC | 18-75V |
| WD-1001M-BPL-DC02-RD | 1 | DC | 18-75V |
| WD-1001M-BPL-DC03-DM | 1 | DC | 100-700V |
| WD-1001M-BPL-DC03-RD | 1 | DC | 100-700V |
