Sm Optical Module SFP 10g 1310/ 1550 Simplex LC 40km Transceiver
Single mode optical transceiver module sfp 10g 1310/1550 simplex LC 40kmThe Fibconet SFP+ modules give you a wide variety of Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.FeaturesCompatible IEEE 802.3ah 1000BASE-PX20/PX20......
Send Inquiry
Product Description

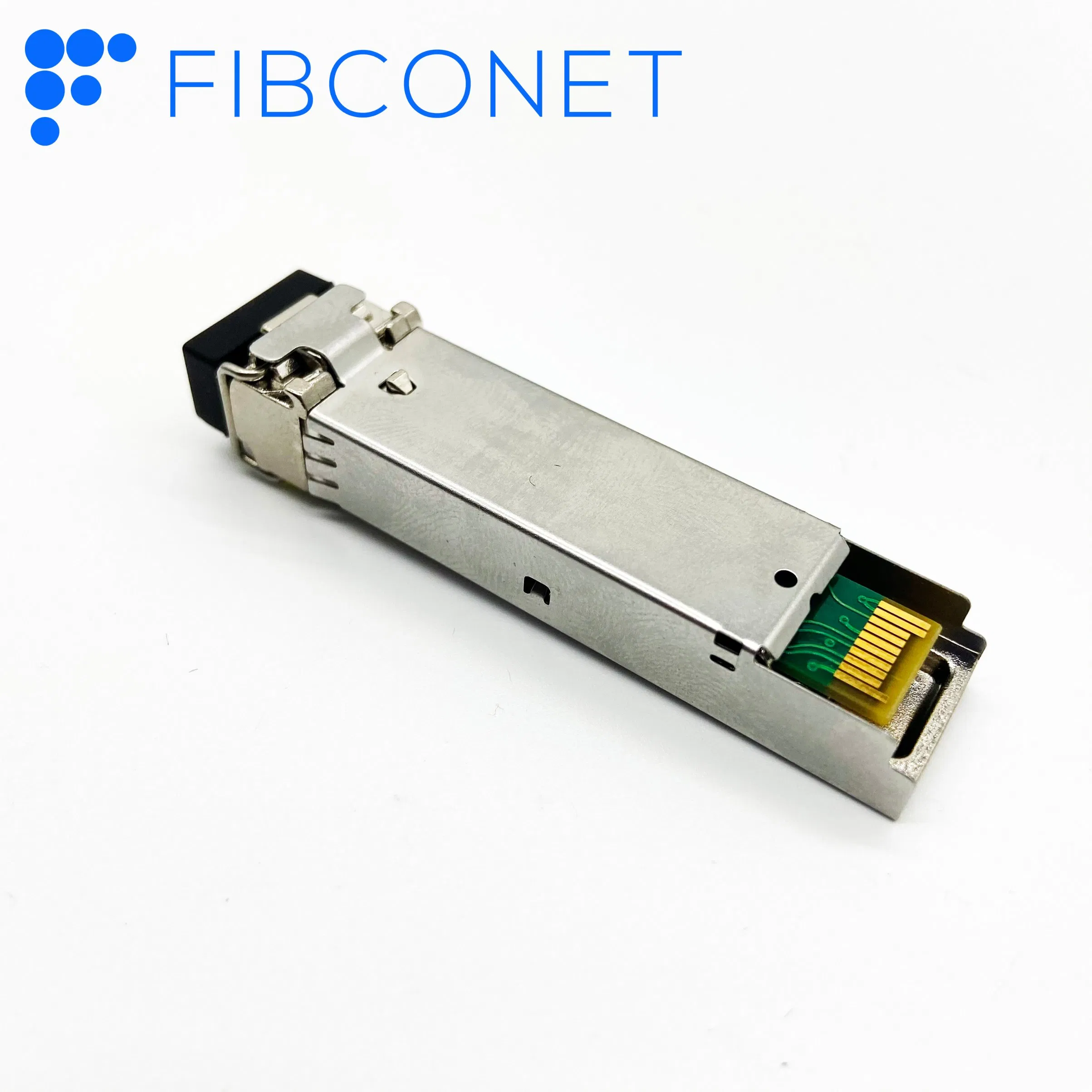

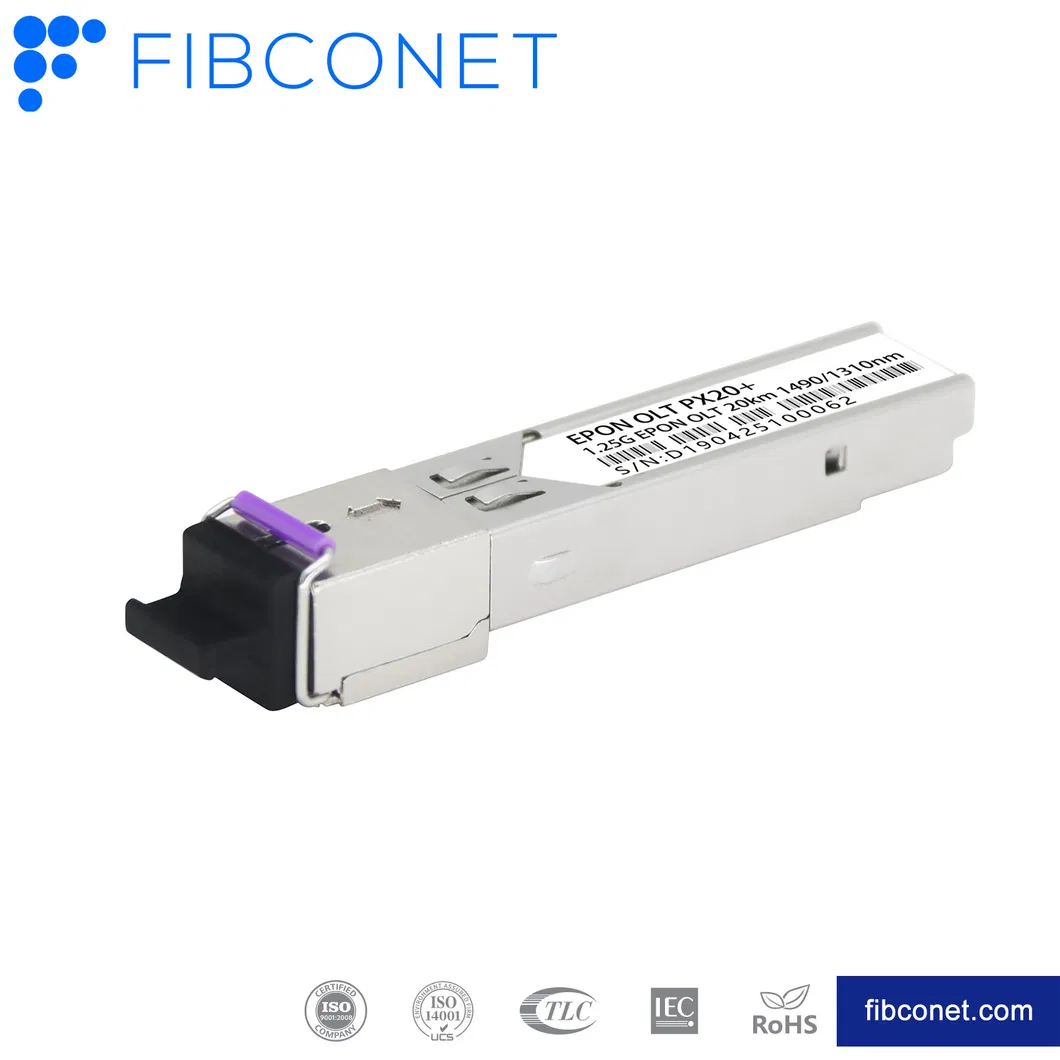

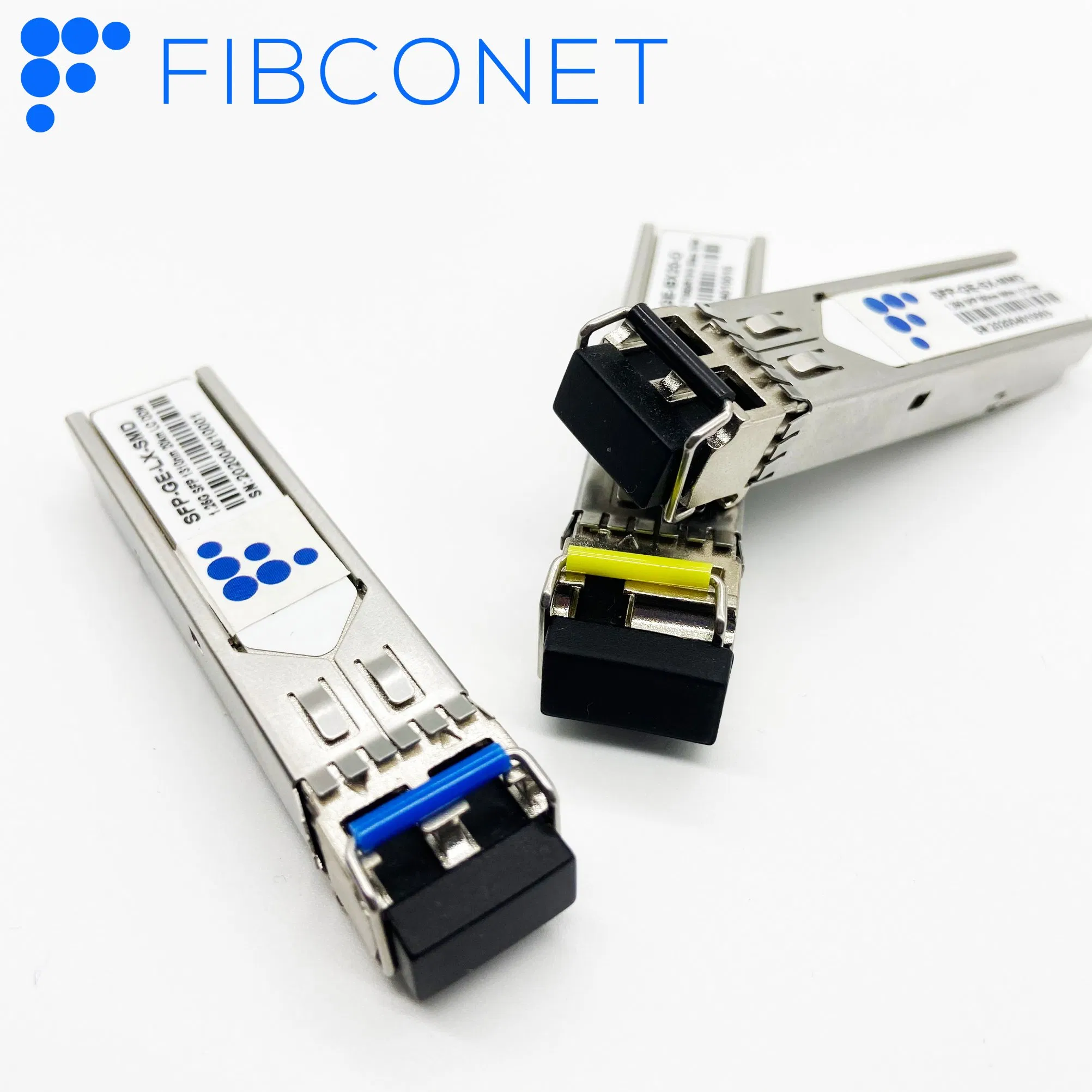

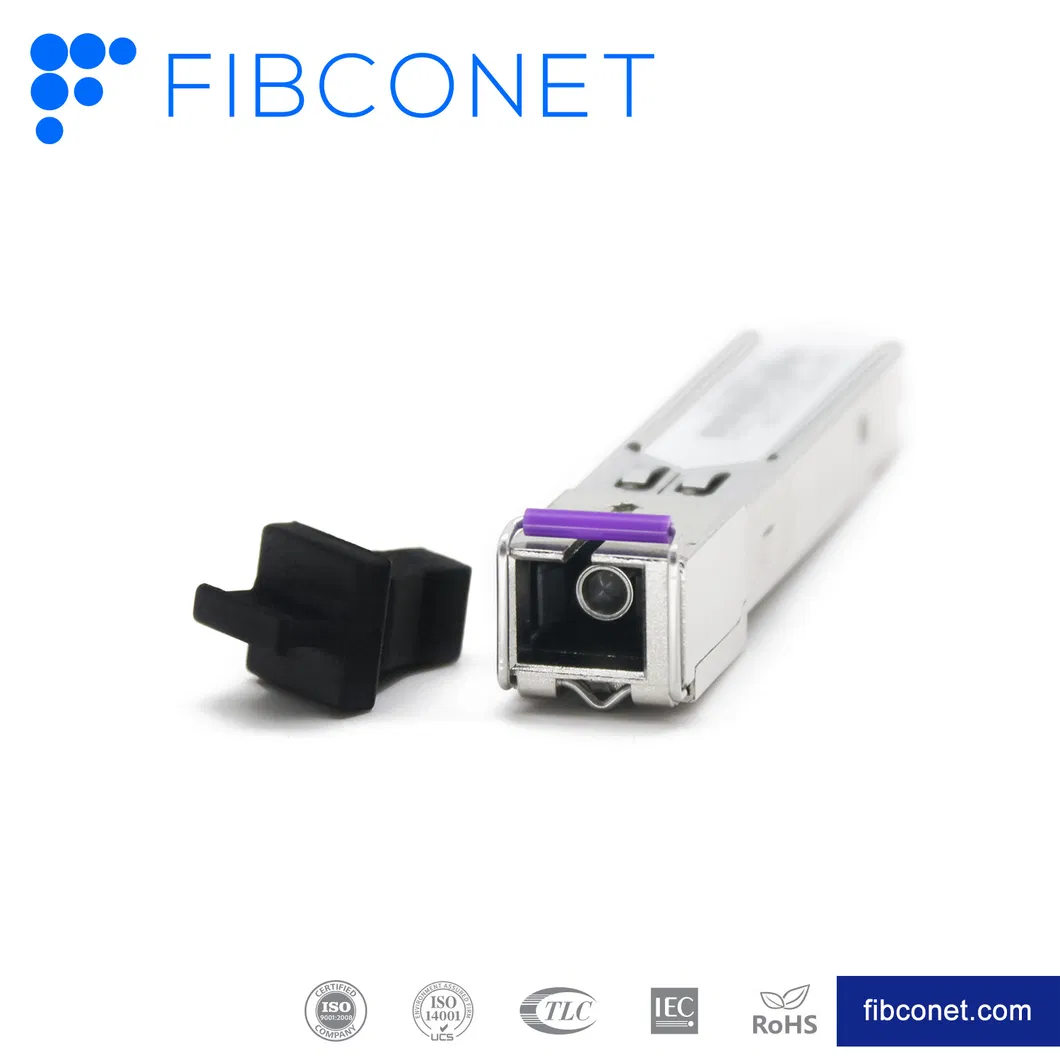

Single mode optical transceiver module sfp 10g 1310/1550 simplex LC 40km
The Fibconet SFP+ modules give you a wide variety of Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Features
Operating Condition
The Fibconet SFP+ modules give you a wide variety of Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Features
- Compatible IEEE 802.3ah 1000BASE-PX20/PX20+ GEPON application
- Applied to EPON OLT for a Single Fiber Bi-directional EPON System
- SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472
- Burst Digital Receiving Signal Strength Indication (RSSI)
- Single 3.3V power supply
- Operation case temperature -40~85°C for industrial, -25~85°C for extended and -10~70°C for commercial
- RoHS-6 compliance
- Ethernet
- Telecom
- Fiber Channel
| Parameter | Unit | Min. | Typical | Max. |
| Power Supply | V | 0 | 4.2 | |
| Storage Ambient Temperature | °C | -40 | 85 | |
| Operating Case Temperature | °C | 0 | 70 | |
| Operating Relative Humidity | % | 5 | 95 | |
| Receiver Damaged Threshold | dBm | 0 |
Operating Condition
| Parameter | Unit | Min. | Typical | Max. |
Power Supply | V | 3.1 | 3.3 | 3.5 |
| Operating Case Temp for C-temp | °C | -10 | 70 | |
| Operating Case Temp for E-temp | °C | -25 | 85 | |
| Operating Case Temp for I-temp | °C | -40 | 85 | |
Operating Relative Humidity | % | 5 | 95 | |
Data Rate(TX/RX) | Gbit/s | 1.25 |
