Power Supply Accepts Wide Voltage Input Range DC 5-36V Modbus to Ethernet Converters St-TCP410I
ST-TCP410iModbus to Ethernet Converters Features of entry-level Modbus to Ethernet converters ST-TCP410i.1 RS232 and 1 RS485 Modbus to Ethernet converters1 RS232 and 1 RS485 Modbus Serial to Ethernet ConvertersPower supply accepts wide voltage input range DC 5-36VSupport TCP server/client, UDP serve......
Send Inquiry
Product Description

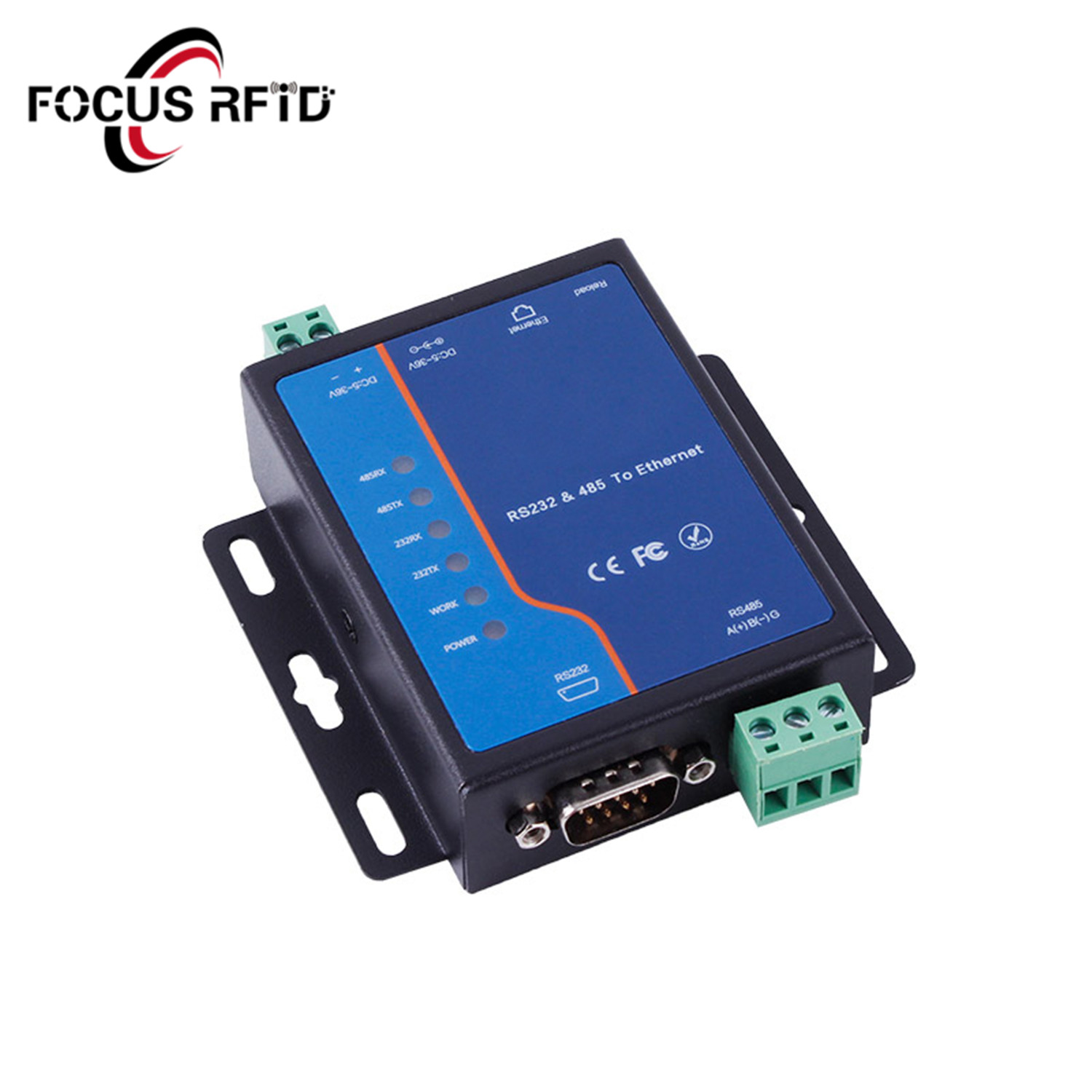

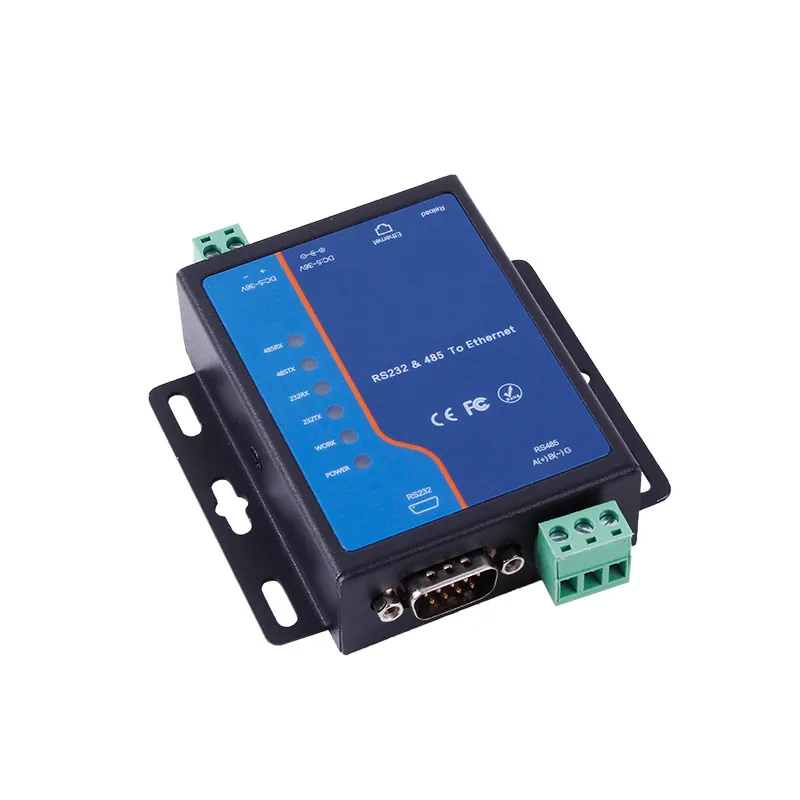

ST-TCP410i
Modbus to Ethernet Converters
Features of entry-level Modbus to Ethernet converters ST-TCP410i.
1 RS232 and 1 RS485 Modbus to Ethernet converters1 RS232 and 1 RS485 Modbus Serial to Ethernet Converters
Power supply accepts wide voltage input range DC 5-36V
Support TCP server/client, UDP server/client,https client, Virtual COM
Support Modbus RTU to Modbus TCP
Support flow control CTS/RTS, XON/XOFF
Support 1 RS-232,1 RS-485 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
Configuration via Web Server page, AT commands, and Windows Utility
Technical parameters
| System Information | |
| Processor | Cortex-M4 |
| Basic Frequency | 120MHz |
| Flash | 512K byte |
| Ethernet | |
| Port Number | 1 |

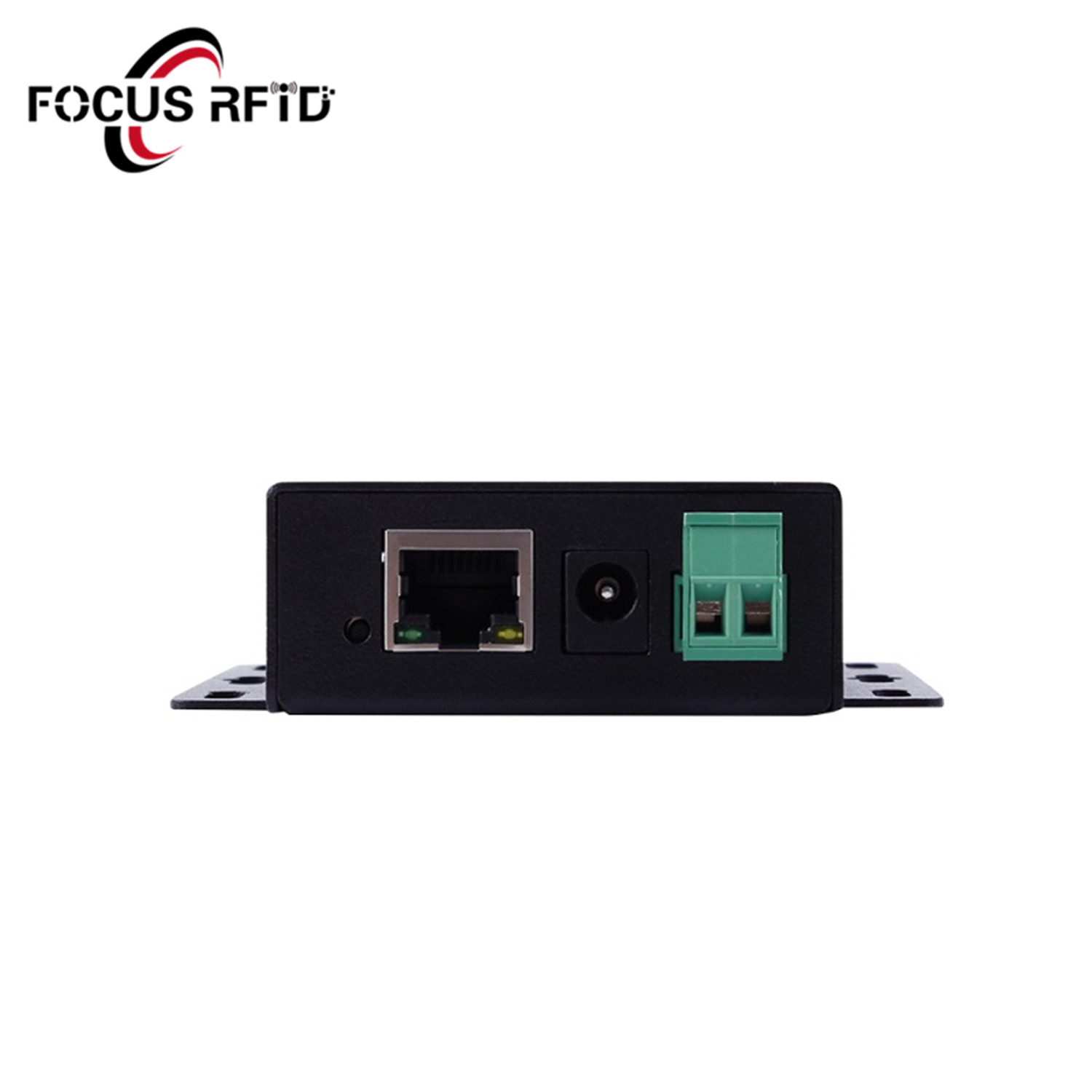

| Interface Standard | RJ45 |
| Rate | 10/100 Mbps MDI/MDIX, auto switch between cross and direct connection |
| Protection | 2KV electromagnetism isolation, shell insulation blocking |
| Network Protocol | IP, TCP, UDP, DHCP, DNS, https, ARP, ICMP, Web socket, httpsd client |
| Receive Buffer | Max 16k bytes buffer |
| Serial | |
| Port Number | 2 (1*RS-232, 1*RS-485, can work at the same time) |

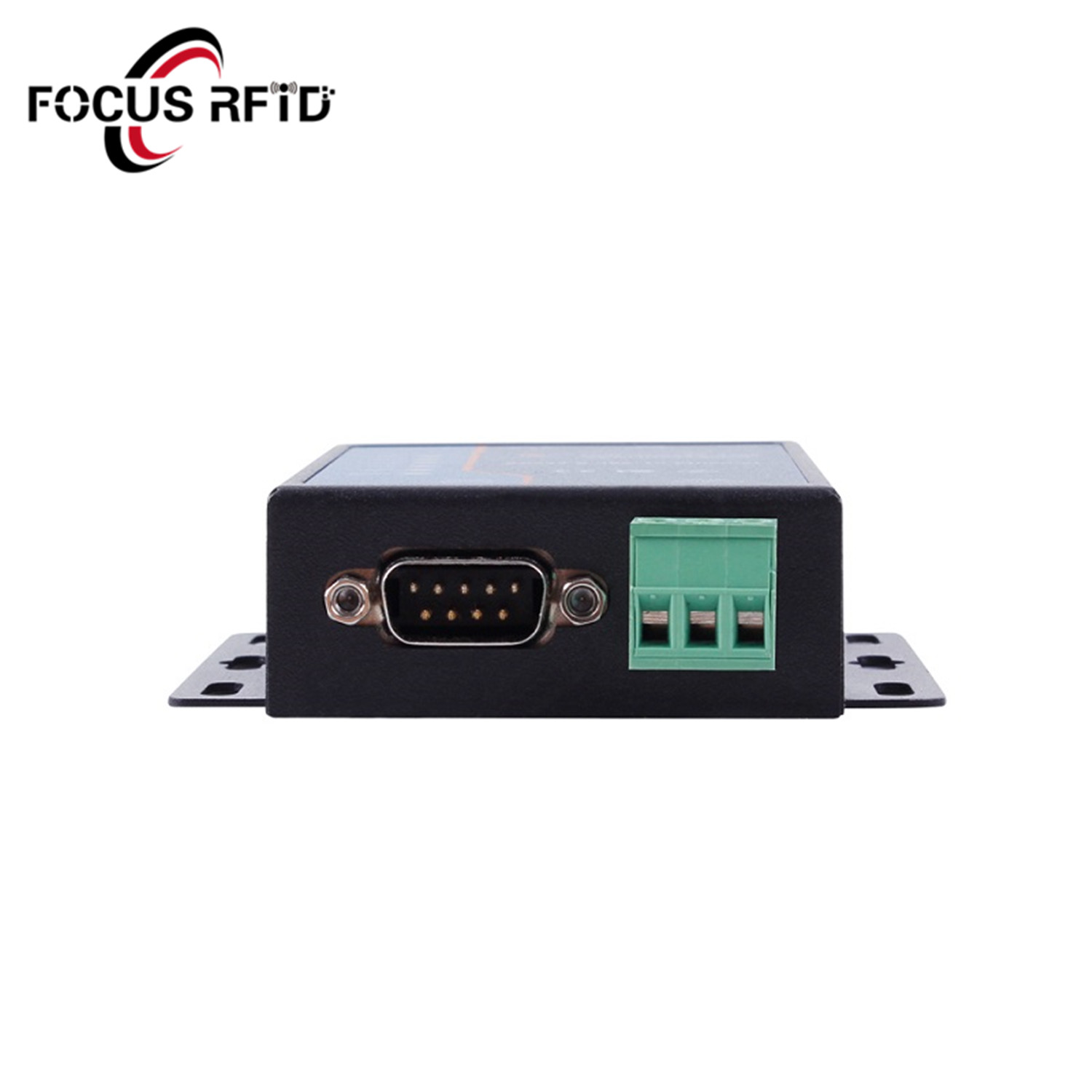

| Interface Standard | RS-232: DB9 pin type, RS-485: 3 wire (A+, B-, G) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Check Bit | None, Even, Odd, Space, Mark |
| Baud Rate | RS-232: 600 bps ~ 230K bps, RS-485: 600 bps ~ 1M bps |
| Flow Control | RTS/CTS |
| Buffer | Send and receive 2k bytes respectively |
| Protection | RS-485: anti-static 2KV, lightning protection |
| RS-485 Pull-up and Pull-Down Resistor | 2.2 KΩ |
| Software | |
| Virtual Serial | Windows 2000 or higher (32 bit/64 bit) |
| Configuration | Built-in webpage, computer set-up software, serial command |
| Basic Parameter | |
| Size | 80 x 62 x 24 mm |
| Operating Temp. | -40 ~ 85°C |
| Storage Temp. | -45 ~ 105°C, 5 ~ 95% RH |
| Input Voltage | DC 5 ~ 36V |
| Working Current | 86.5mA(aver)@ 5V 44.3mA(aver)@ 12V |
| Power | <1W |
| More | |
| Certificate | CE,FCC,ROHS |
| Warranty | 2 years |
| Accessory | 5V1A high-quality power supply, serial line, cable |
Basic Function

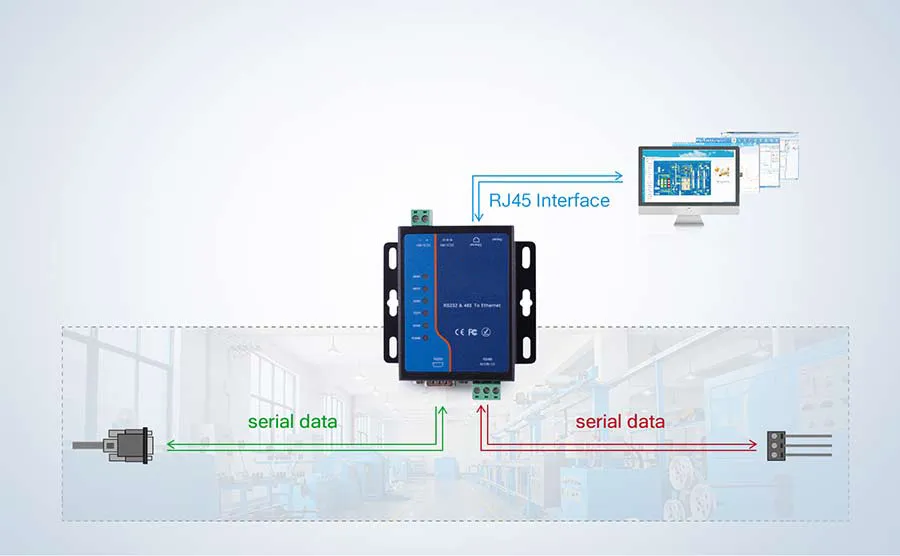

Modbus to Ethernet Converters ST-TCP410i can realize bi-directional transparent transmission between RS232/RS485 and Ethernet RS232/RS485 ports can work at same time, not affect each other.
Industrial Solution

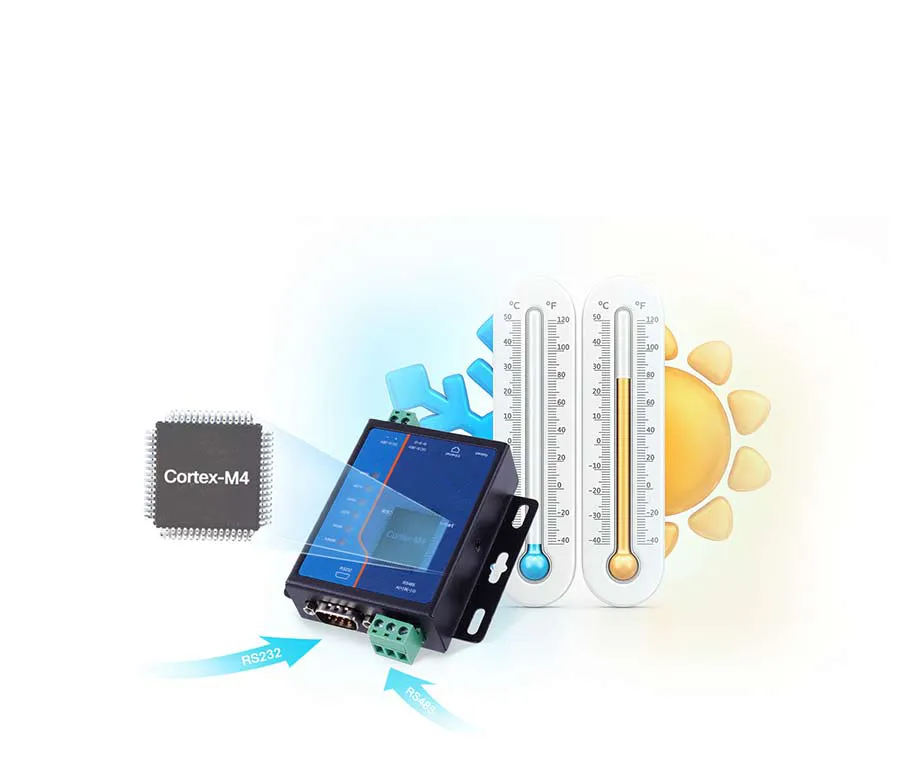

Based on TI Cortex M4 Solution, signal processing more efficient and reliable.Equipped with optimized TCP/IP protocol stack, stable and reliable, Modbus to Ethernet converters ST-TCP410I can realize bi-directional transparent transmission efficiency. Work Temp: -40 ~85C, supports hardware watchdog to keep it work stable.
Multiple Working Modes
Modbus to Ethernet converters ST-TCP410I support 5 work modes: TCP Server, TCP Client, UDP Client, UDP Server and httpsD Client. Configure simply and it can realize data transmission.

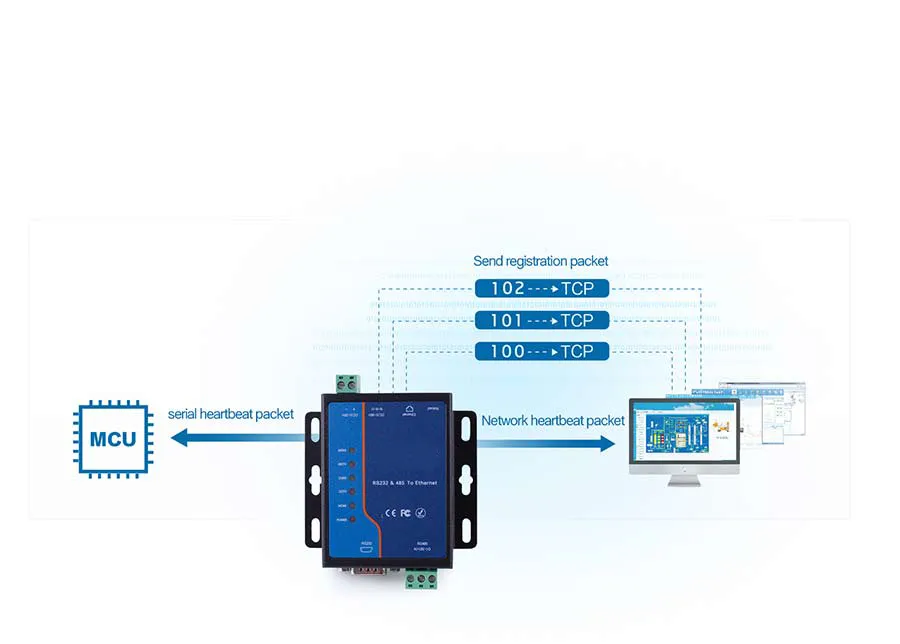

Registration Packet + Bi-directional Heartbeat Packet + Keep Alive
When ST-TCP410i works as a TCP Client, it will automatically send pre-registered packets for TCP Serverto identify this TCP. Network + Serial port heartbeat packet + Keep Alive,maintain heartbeat connection with device terminals and servers actively, ensure the stability of the system.
Characteristic Function Collection
Virtual COM
Solve the problem that PC software cannot communicate with network and equipment as a serial port.
Identification of broken network, automatically wired Solve the identification of dead links easily, automatic reconnection, prevent data loss due to power outages, disconnection.
Modbus gateway
Polling mechanism can solve the problem of sticky congestion effectively, which is caused by data concurrency.
Customize built-in webpage for users Web to Serial
Design built-in webpages according to project requirements and realize webpage control, web page data acquisitionand other functions.
Application
Electrical Fire Network Monitoring

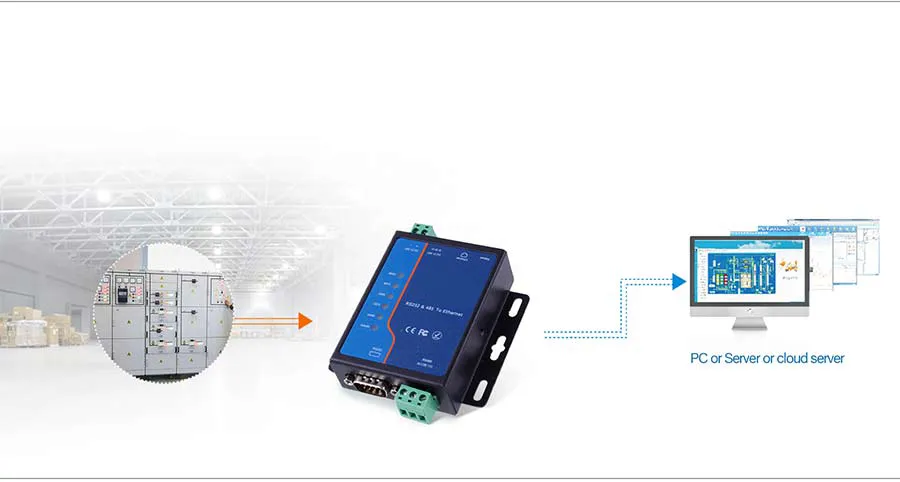

ST-TCP410I communicates with the RS232/485 serial port of the electric fire alarm, and transmits the alarm information to the cloud platform quickly to remind the staff to eliminate the fire.
Smart Lighting Facilities in Factories and Mines Monitoring

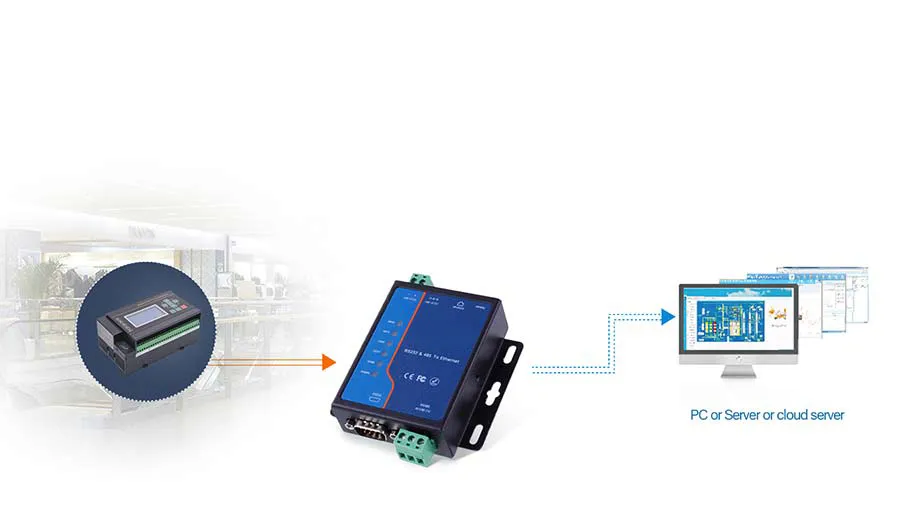

The traditional lighting facilities in factories and mines are mostly controlling by people, and cannot realization linkage between manufacture and monitoring, and lead to energy wasting. ST-TCP410I communicates with serial lighting equipment via network, it is convenient for lighting control and can initiative report the mistakes of the equipment.

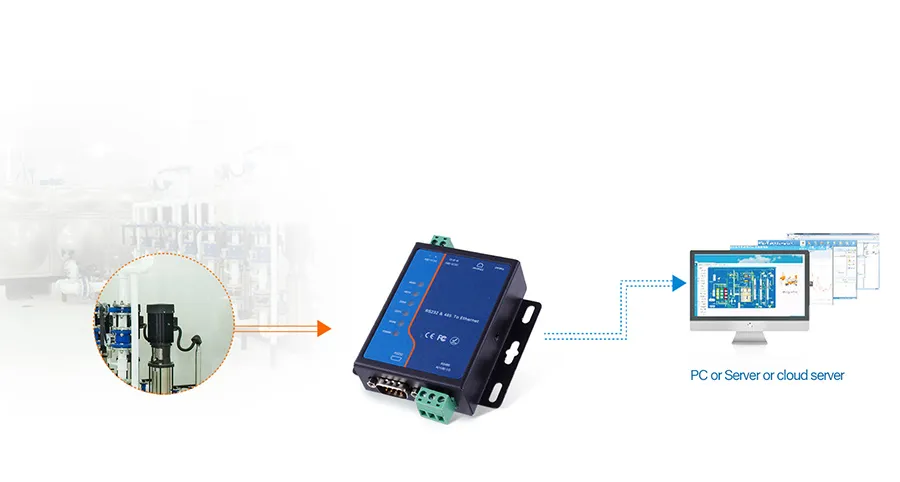

Water Supply System Monitoring
Recently the hoc communication of water supply system in waterworks is still based on serial, and it is only suitable for single-machine operation and limited transmission distance, system maintenance is difficult. ST-TCP410i supports serial port to network, monitor the work of the equipment via TCP Server mode at any time.
