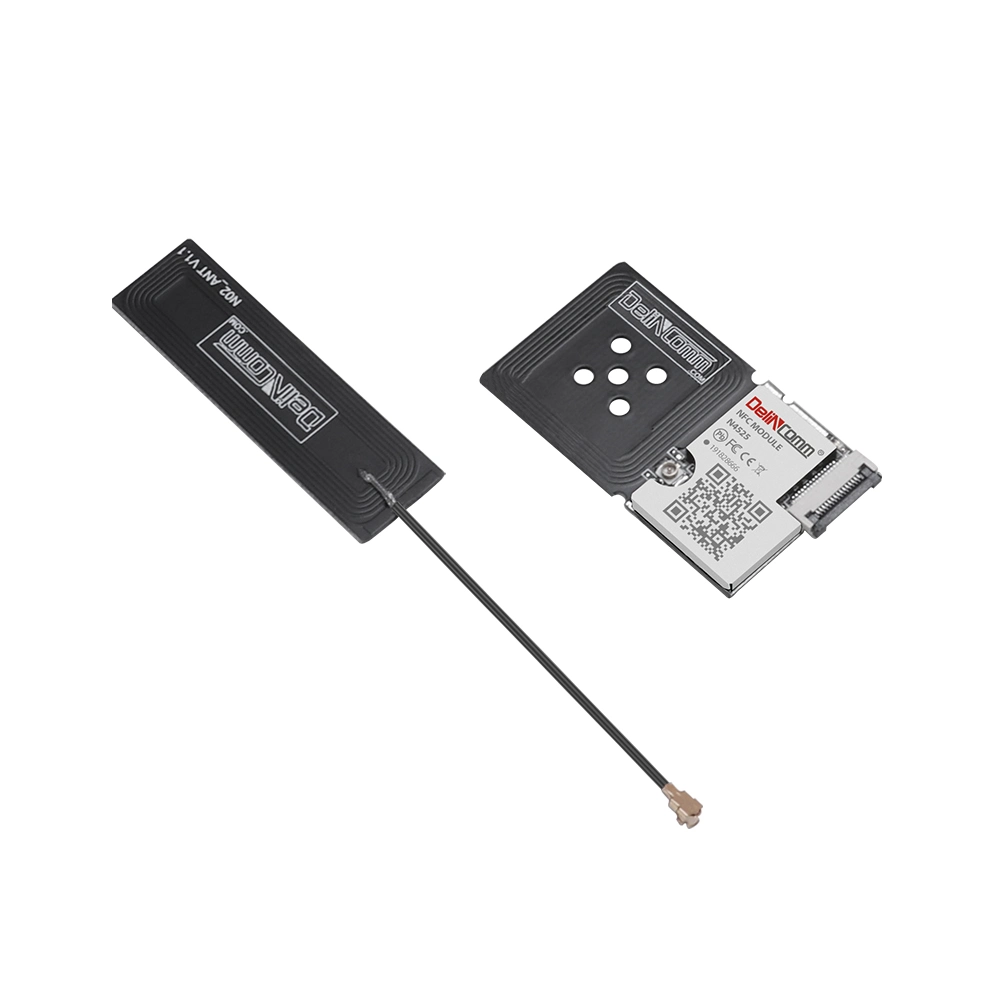

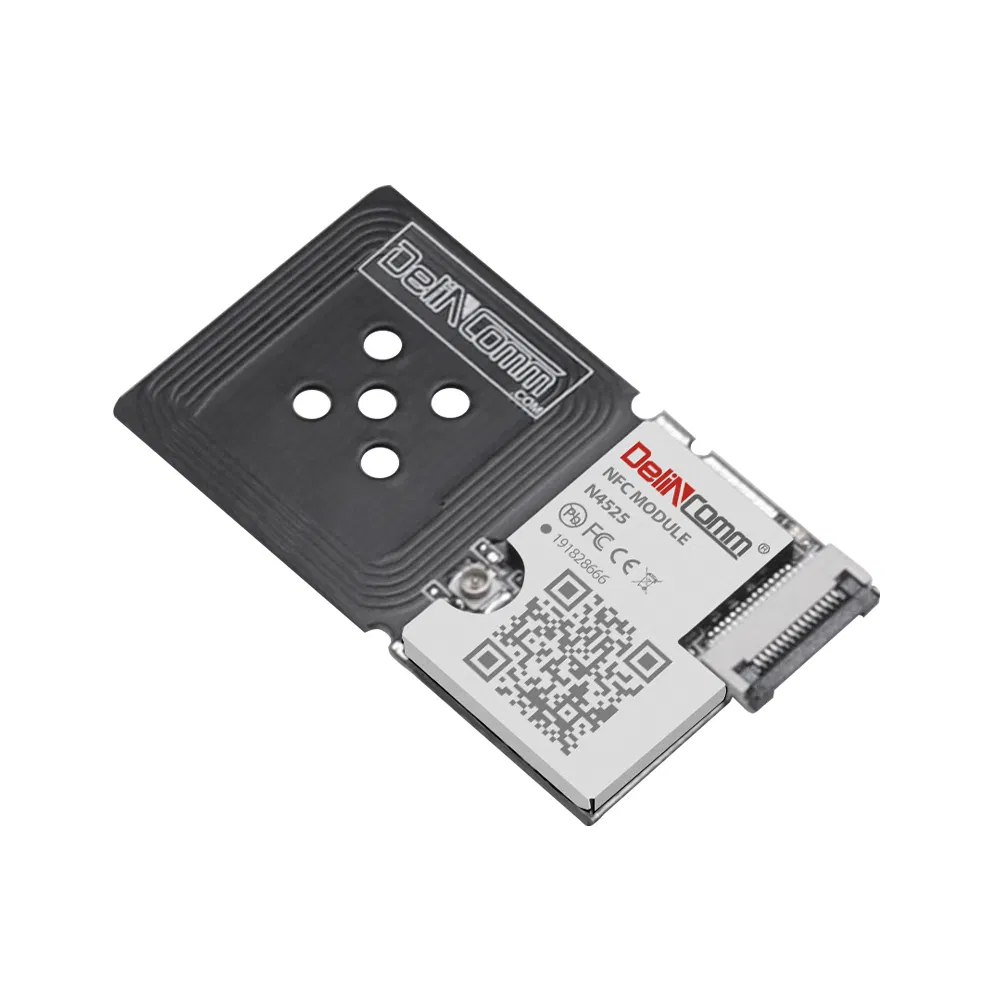

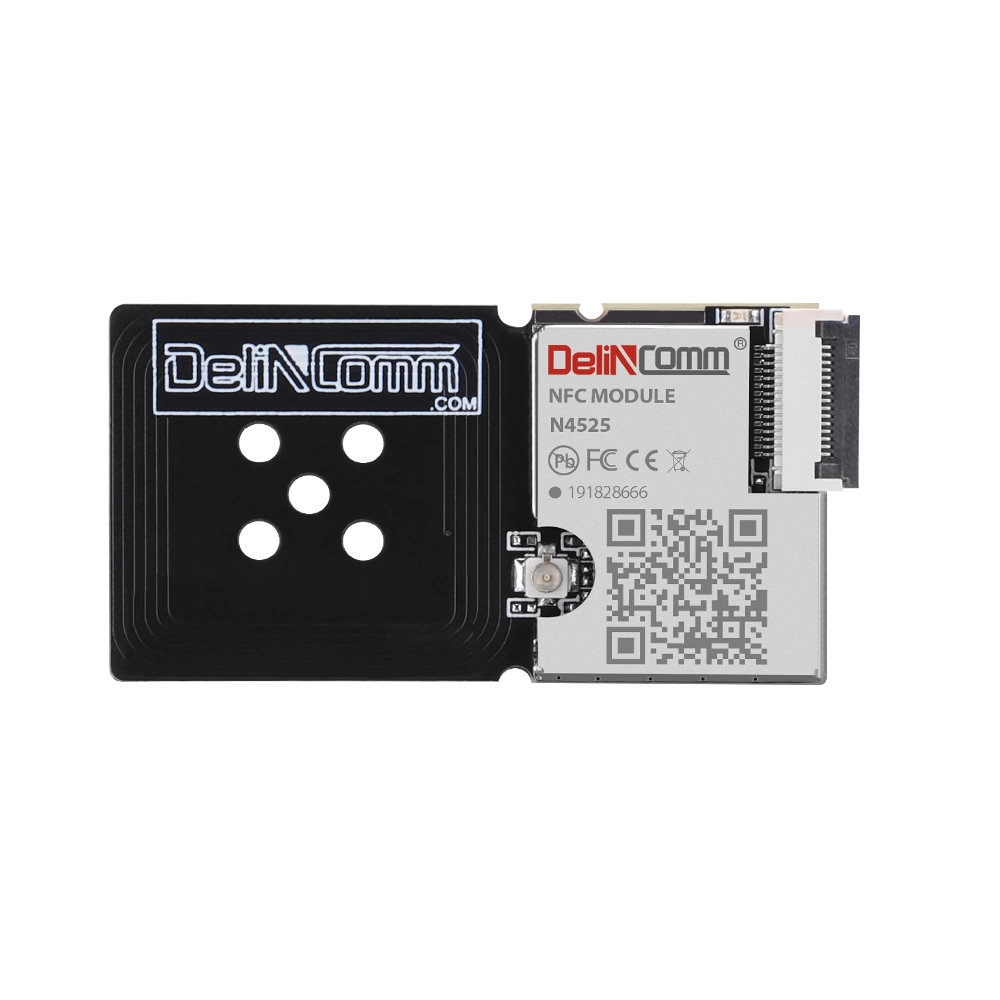

NFC Card Reader Module with Antenna
Product specifications ItemSpecificationsSupport CardMifare desfire, Calssic, Ultralight, NTAG, etcChipNXPCommunication InterfaceUART(TTL,9600)I2CSupport AgreementISO14443-A/Mifare Clasic, etc.Working VoltageDC 3.3V (Optional 5V)Working Current20mAModule size25*45*2.2mmReading Distance10~70 mmWorkin......
Send Inquiry
Product Description
Product specifications
| Item | Specifications |
| Support Card | Mifare desfire, Calssic, Ultralight, NTAG, etc |
| Chip | NXP |
| Communication Interface | UART(TTL,9600) I2C |
| Support Agreement | ISO14443-A/Mifare Clasic, etc. |
| Working Voltage | DC 3.3V (Optional 5V) |
| Working Current | 20mA |
| Module size | 25*45*2.2mm |
| Reading Distance | 10~70 mm |
| Working Temp. | -40ºC - +85ºC |
| Storing Temp. | -40ºC - +85ºC |
| Working Humidity | 5% - 95% |
| Pilot Lamp | Blue |
Company Profile
Delin comm Limited, is a professional enterprise with its own brand (DELINCOMM) and 27 years of experience in R&D, production and sales.
We focuses on the R&D and production of radar antenna, base station antenna, power antenna, GPS antenna,GLONASS antenna, 5G antenna, 4G antenna, 2.4G antenna, WiFi Antenna, BT antenna, GSM antenna, DVB-T antenna, WLAN antenna,GNSS antenna, various Combined antenna,GPS module, GNSS module, GPS antenna module, GNSS antenna module, MOUSE receiver, NFC module, 4G module and 5G module, etc.
