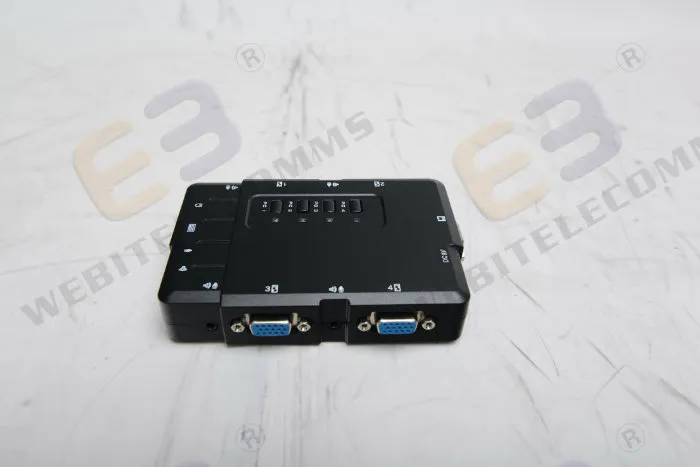

Mini Plastic Case 4 VGA Port Desktop Kvm Switch Console
Webitelecomms WB-CS-41CA can control 4 servers via a single console and allows users to switch between computers via the buttons on the front panel of the switch or the hotkey configuration on the keyboard. It is the simplest and most convenient solution for multi-computer management. The sturdy, du......
Send Inquiry
Product Description
Webitelecomms WB-CS-41CA can control 4 servers via a single console and allows users to switch between computers via the buttons on the front panel of the switch or the hotkey configuration on the keyboard. It is the simplest and most convenient solution for multi-computer management. The sturdy, durable and small enclosure design is its important feature.
Features:
One PS/2 console controls 4 computers/ servers; Keyboard and mouse simulation function built-in;
OS Compatibility: DOS, Windows series; Linux, Unix, etc.
Easy installation without any other additional software; connect with computer via cable directly,Auto Scan function to monitor computer operation
Superior video quality- up to 1920 x 1440; support VGA, SVGA, XGA with DDC2B function; Computer selection via front panel push buttons and hot keys.
Supports Microsoft Intelli Mouse, Logitech Mouse Man, First Mouse and IBM Scroll point Mouse.
Hot plug gable- to add or remove computers without powering down;
Features:
One PS/2 console controls 4 computers/ servers; Keyboard and mouse simulation function built-in;
OS Compatibility: DOS, Windows series; Linux, Unix, etc.
Easy installation without any other additional software; connect with computer via cable directly,Auto Scan function to monitor computer operation
Superior video quality- up to 1920 x 1440; support VGA, SVGA, XGA with DDC2B function; Computer selection via front panel push buttons and hot keys.
Supports Microsoft Intelli Mouse, Logitech Mouse Man, First Mouse and IBM Scroll point Mouse.
Hot plug gable- to add or remove computers without powering down;
| Type | WB-CS-41CA | |
| Computer connections | 4 | |
| CPU port selection | Front panel switches/Hot key | |
| Console connector | Keyboard | 1 x PS/2 female (purple) |
| Mouse | 1 x PS/2 female (green) | |
| Monitor | 1 x HDB-15 female | |
| Microphone | 3.5mm jack (pink) | |
| Audio | 3.5mm jack (green) | |
| CPU connection | Keyboard | 4 x HDB-15 male |
| Mouse | ||
| Monitor | ||
| Mic/Audio | 3.5mm jack (black) | |
| LEDs | Online (red) | 4 |
| Selected (orange) | 4 | |
| Video resolution | 1280 x 1024 | |
| Power | DC5V, 400mW | |
| Operating temperature | -10˚C~50˚C | |
| Storage temperature | -20˚C~60˚C | |
| Housing | Plastic | |
| Weight | 1.09 kg | |
| Dimensions(L x W x H ) | 125 x 86 x 26.5 mm | |
