Product Description

Industrialrs-232/485/422 Serial Port Into TCP/IP Serial to Ethernet Converter TCP, UDP, HTTP, DNS, DHCP, Snmp and Modbus Gateway
Oerview

FLU-601 Serial to Ethernet Converter is a serial port that can convert RS-232/485/422 serial port into TCP/IP network interface, realize the two-way transparent transmission of data between RS-232/485/422 serial port and TCP/IP network interface. The serial device can immediately have the TCP/IP network interface function, link the network for data communication, and greatly expand the communication distance of the serial device.
The Serial to Ethernet Converter that enables serial devices to have networking capabilities immediately can centrally manage scattered serial devices and hosts through the network, which is simple and convenient. It can be applied to power monitoring, telecommunications room monitoring, access control systems, attendance systems, sales systems, POS systems, self-service banking systems, etc.


Features

With 4*10/100M PoE downlink ports.
Provide RS485 and RS232 interfaces.
Support 1* 4G communication, include TD-LTE and FDD-LTE.
With 1* DC 48-57 V power supply.
6KV surge protection, 6KV contact / 8KV air ESD protection.

Specifications

Project	specification
Power input	Power adapter
Adapt to the voltage range	DC12V~60V
Power consumption	Self-consumption <5W
10/100 network port	1*10/100Base-TX
RS485	Standard RS485 interface
RS232	Standard RS232 interface
RS422	Standard RS422 interface
Transmission medium and distance	Use standard cat5e/6, up to 100 meters
Reset button	>5s long press: restore factory settings
ESD	6KV: contact / 8KV: air discharge, executive standard: IEC61000-4-2
Indicator light	3
Operating temperature	-40ºC~70ºC
storage temperature	-40ºC~85ºC
Humidity (non-condensing)	0~95%
Size (L×W×H)	101mm×65mm×36mm
Material	metal
Colour	black
Net weight	300g

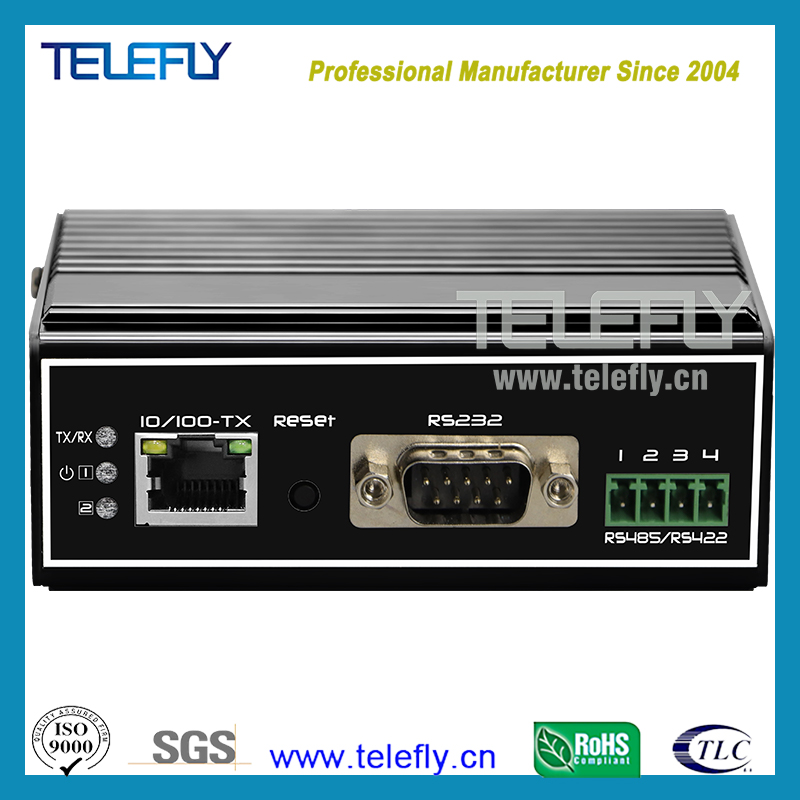

Panel diagram

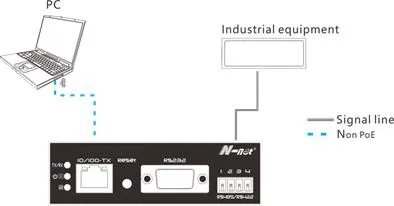

Application

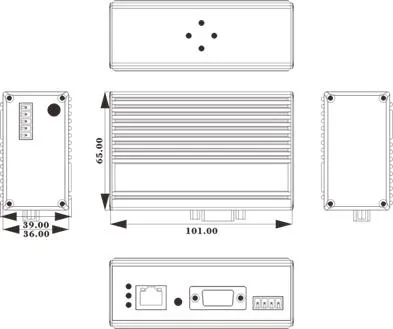

Dimensions

Industrialrs-232/485/422 Serial Port Into TCP/IP Serial to Ethernet Converter TCP, UDP, HTTP, DNS, DHCP, Snmp and Modbus Gateway

version

describe

FLU-601

Serial to Ethernet Converter

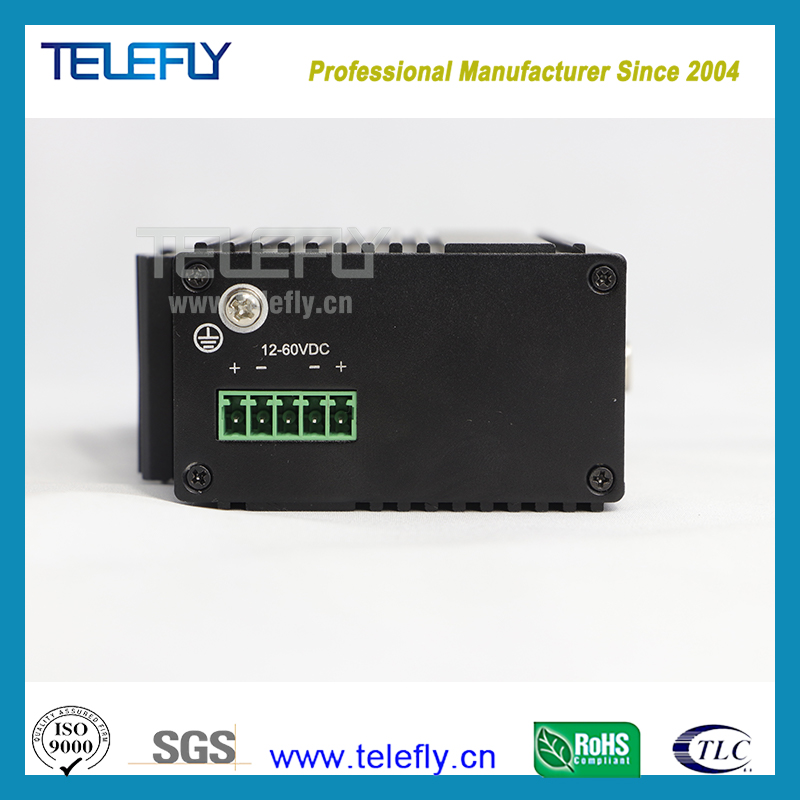

Power supply by power adapter (DC12V~60V);

Support RS-232/RS-485/RS-422 three serial forms;
TCP, UDP, HTTP, DNS, DHCP, SNMP and Modbus gateway functions;
1*10/100 RJ45;
Supports wall-mounted and Din-rail installation, reliable, sturdy and durable, and can be widely used in security network video surveillance, network engineering and other occasions.
