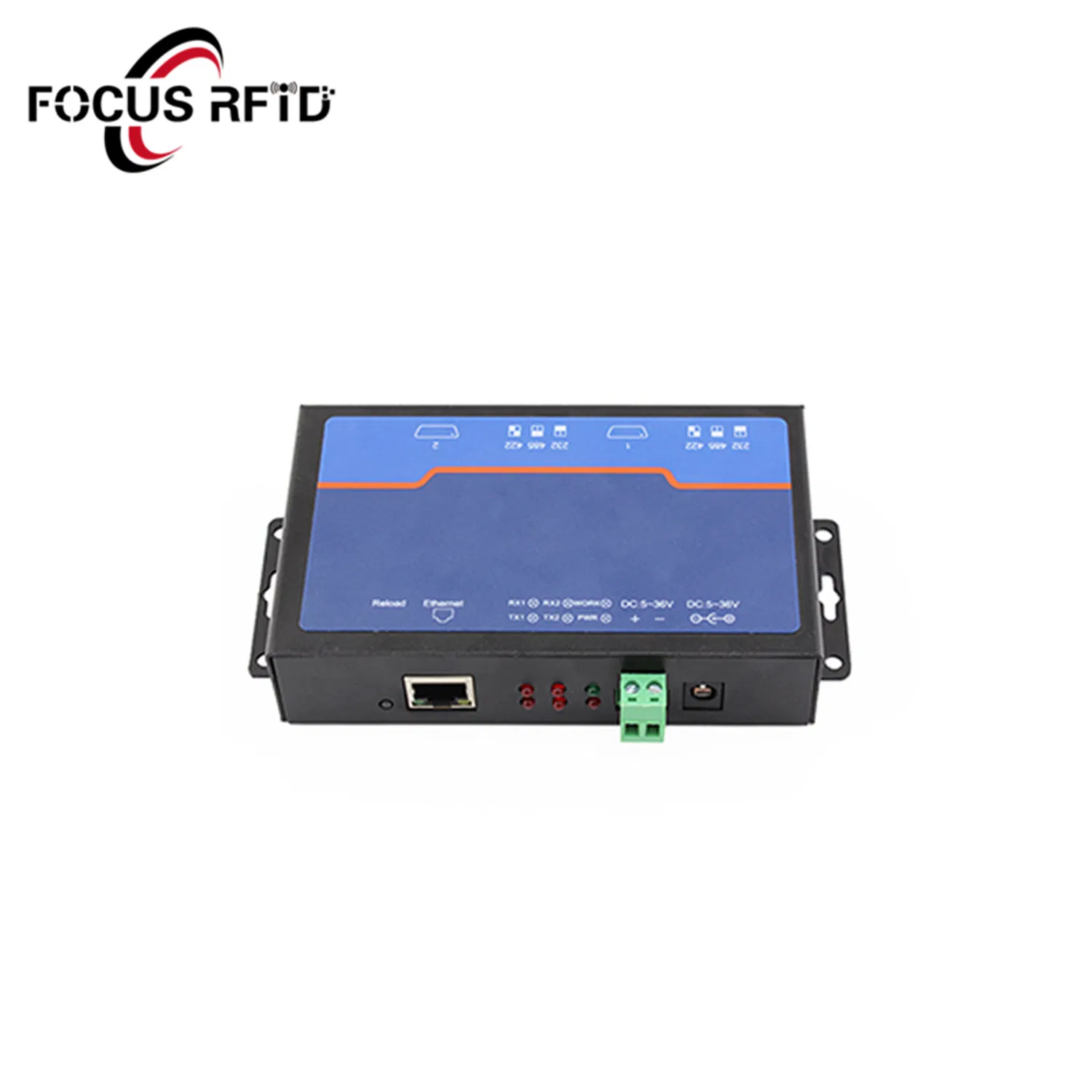

Industrial 2 Serial Ports RS232/485/422 to Ethernet Server Converter St-TCP510I
ST-TCP510i1 Port Ethernet Device Servers 1 port Ethernet device servers ST-TCP510I can realize bi-directional transparent transmission between RS232/RS485/RS422 and network.1-port RS-232/422/485 Ethernet device serversPower supply accepts wide voltage input range DC 5-36VSupport TCP server/client, U......
Send Inquiry
Product Description
ST-TCP510i
1 Port Ethernet Device Servers

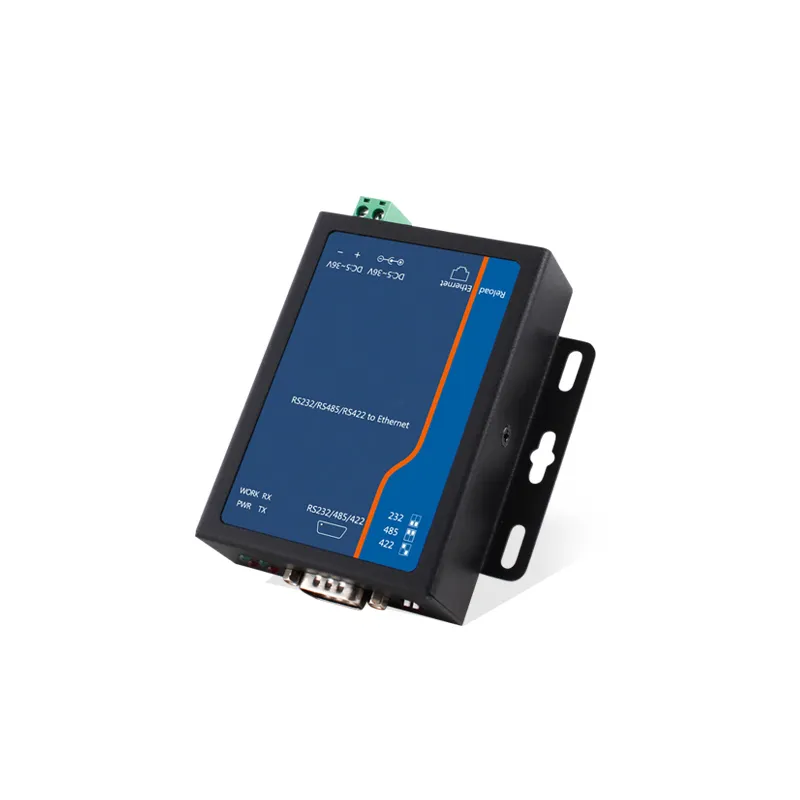

1 port Ethernet device servers ST-TCP510I can realize bi-directional transparent transmission between RS232/RS485/RS422 and network.
1-port RS-232/422/485 Ethernet device servers
Power supply accepts wide voltage input range DC 5-36V
Support TCP server/client, UDP server/client, https client, Virtual COM
Support Modbus RTU to Modbus TCP
Support flow control CTS/RTS, XON/XOFF
Support 1 RS-232, RS-485/422 3IN1 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
Configuration via Web Server page, AT commands, and Windows Utility
MQTT/SSL special firmware (contact sales)
Introduction of Ethernet device servers ST-TCP510I

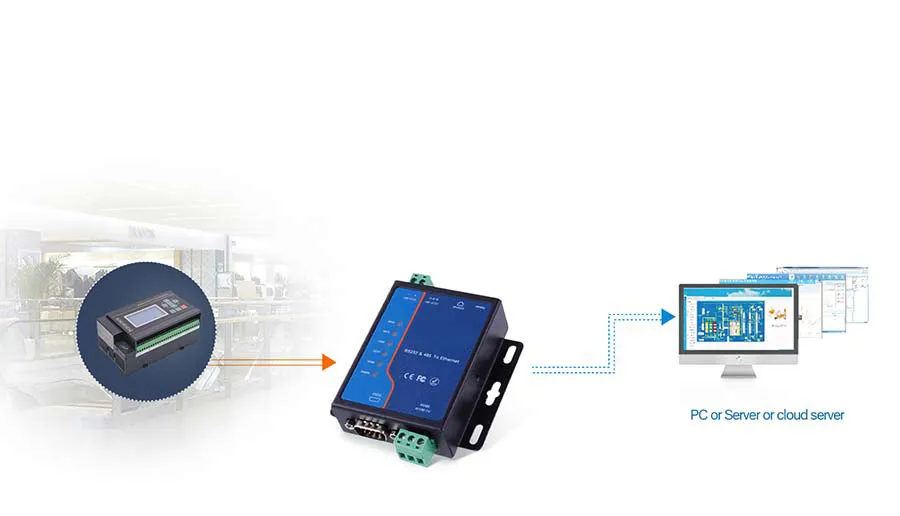

1 port Ethernet device servers ST-TCP510I can realize bi-directional transparent transmission between RS232/RS485/RS422 and network. Simple settings via webpage or setup software can assign working details.
Ethernet device servers ST-TCP510I are based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.
Character of 1-port RS232/422/485 Ethernet device servers ST-TCP510I
| Industrial Solution | TI Cortex M4 Solution, work temp at -40~85C |
| Power Supply | DC/Terminal type 5V~36V |
| Serial Port | RS232/RS485/RS422, 3-in-1 serial port |
| Serial Signal | RS232: TX/RX, CTS/RTS RS485:A/B/G |
| Flow Control | Software: XON/XOFF |
| Modbus Gateway | Modbus TCP to Modbus RTU in bi-directional Modbus Polling |
| Advanced Character | -Network Printing -Web socket: Serial to Webpage -Modify MAC -Hardware watchdog -ARP of server domain name |
| Certification | CE/FCC/RoHS/WEEE |
| Work Mode | TCP Server/ TCP client/ UDP Server/UDP Client/ httpsD Client |
| Built-in web page | Customized web page is acceptable |

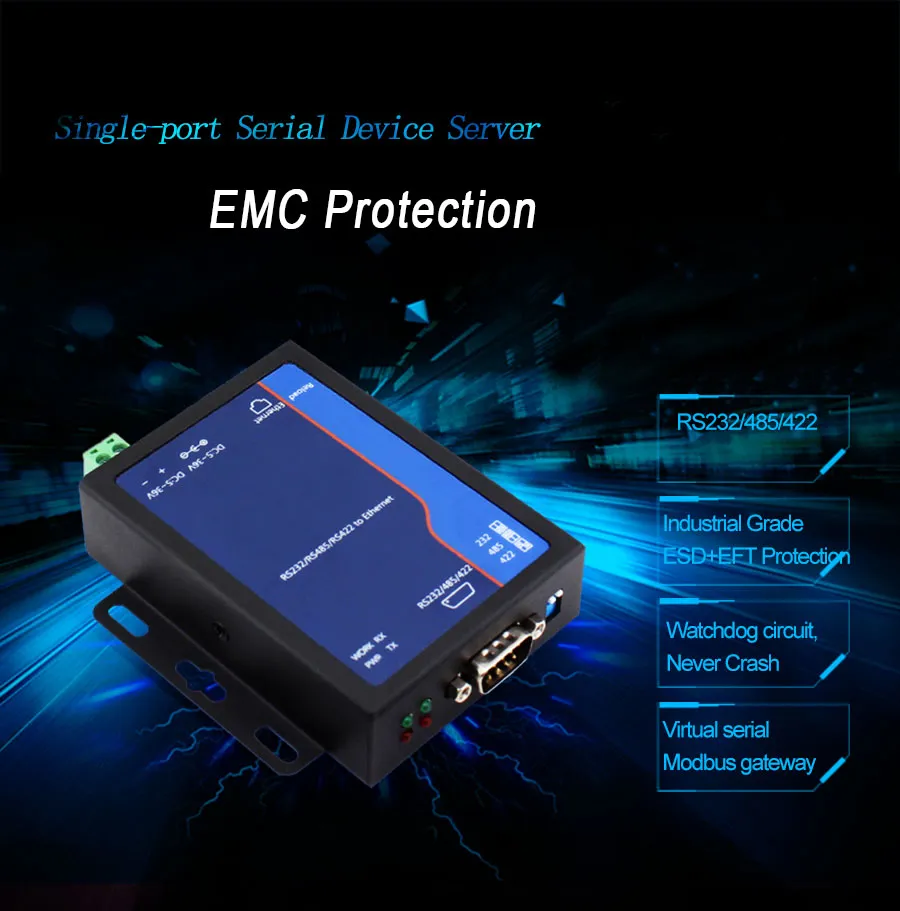

| Protect | Surge Protection, ESD 2KV, for more harsh industrial environment |
Technical Parameters
| System Information | |
| Processor | Cortex-M4 |
| Basic Frequency | 120MHz |
| Flash | 512K byte |
| Ethernet | |
| Port Number | 1 |
| Interface Standard | 8 pin RJ45 |
| Rate | 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection |
| Protection | 2KV electromagnetism isolation, shell insulation blocking |
| Network Protocol | IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client |
| Receive Buffer | Max 16k bytes buffer |
| Serial | |
| Port Number | 1 |

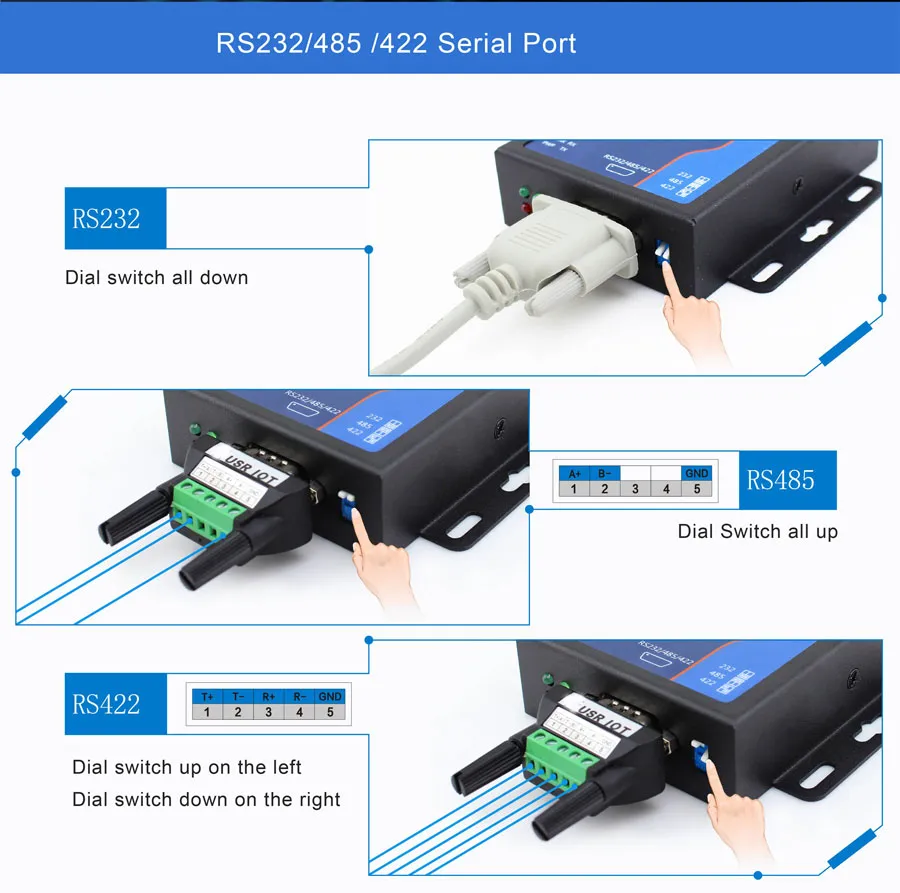

| Interface Standard | RS-232: DB9 pin type, RS-485: 2 wire (A+,B-), RS-422 (A,B,Y,Z) |
| Data Bits | 5,6,7,8 |
| Stop Bit | 1,2 |
| Check Bit | None,Even,Odd,Space,Mark |
| Baud Rate | 600bps ~ 230.4Kbps |
| Flow Control | RTS/CTS |
| Buffer | Send and receive 2k bytes respectively |
| Protection | RS-485: anti-static 2KV,lightning protection |
| RS-485 Pull-up and Pull-Down Resistor | 2.2 KΩ |
| Software | |
| Virtual Serial | Windows 2000 or higher(32 bit/64 bit) |
| Configuration | Built-in webpage, computer set-up software, serial command |
| Basic Parameter | |
| Size | 88 x 81 x 24 mm |
| Operating Temp. | -40 ~ 85°C (industry) |
| Storage Temp. | -40 ~ 85°C, 5 ~ 95% RH (no condensation) |
| Input Voltage | DC 5 ~ 36V |
| Working Current | 53mA @ 12V |
| Power | <1W |
| More | |
| Certificate | CE,FCC,ROHS |
| Warranty | 2 years |
Application
- Industrial data transmission, industrial automation
- security and protection monitoring, public security
- Smart home, power control, environmental monitoring, intelligent agriculture
- Door check on work attendance system, POS system, rice selling system
- Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

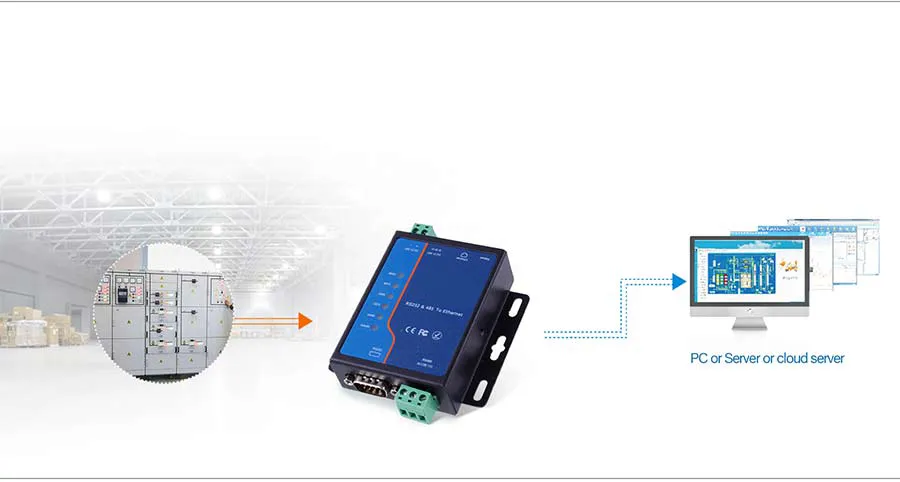

Electrical Fire Network Monitoring
ST-TCP510I communicates with the RS232/485 serial port of the electric fire alarm, and transmits the alarm information to the cloud platform quickly to remind the staff to eliminate the fire.
Smart Lighting Facilities in Factories and Mines Monitoring
The traditional lighting facilities in factories and mines are mostly controlling by people, and cannot realization linkage between manufacture and monitoring, and lead to energy wasting. ST-TCP510I communicates with serial lighting equipment via network, it is convenient for lighting control and can initiative report the mistakes of the equipment.

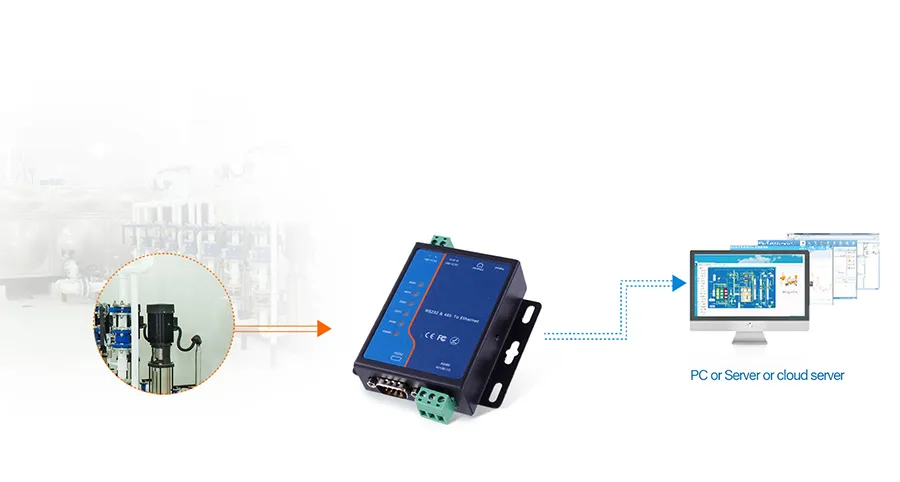

Water Supply System Monitoring
Recently the hoc communication of water supply system in waterworks is still based on serial, and it is only suitable for single-machine operation and limited transmission distance, system maintenance is difficult. ST-TCP510i supports serial port to network, monitor the work of the equipment via TCP Server mode at any time.
