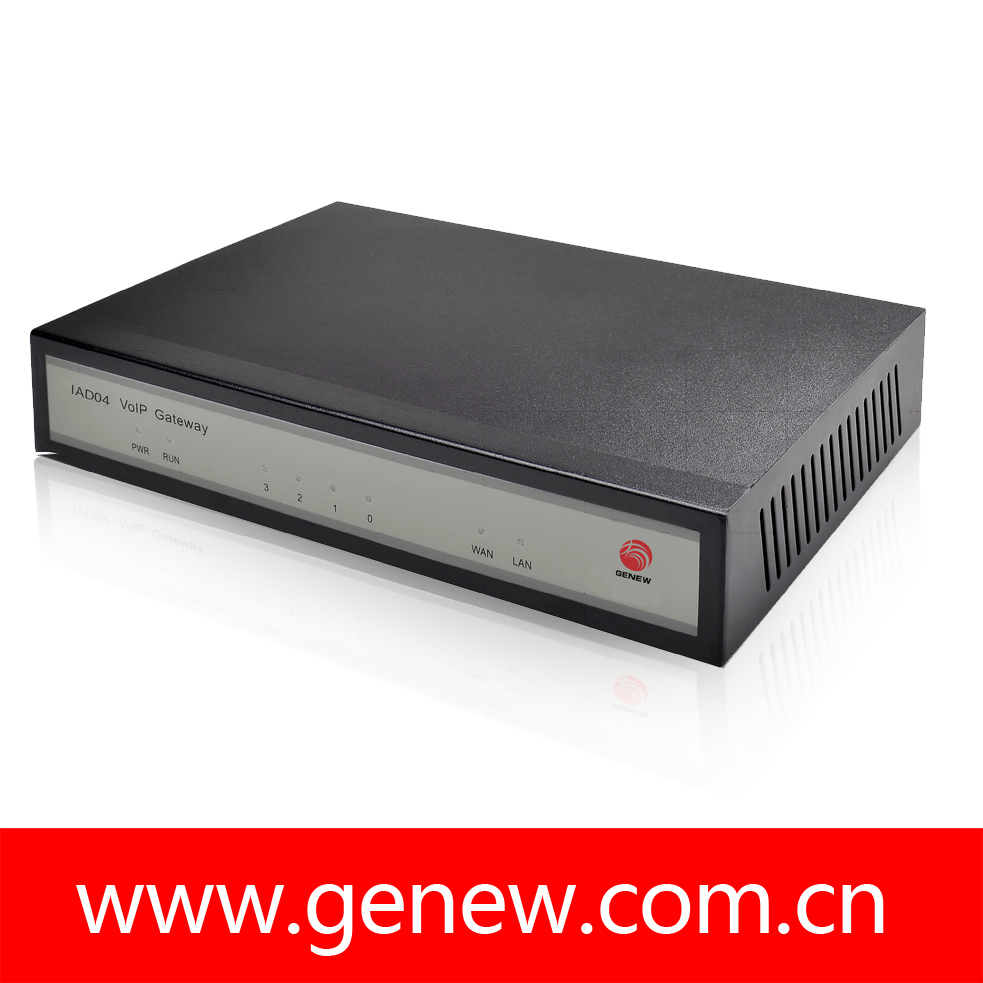

IAD 04
IAD 04(4FXO or 4FXS) is a versatile IP-based voice and fax gateway, it is highly integrated router, NAT, DHCP server, phone gateway functionality. Market-leading voice quality, rich functionality, and lightweigh......
Send Inquiry
Product Description
IAD 04(4FXO or 4FXS) is a versatile IP-based voice and fax gateway, it is highly integrated router, NAT, DHCP server, phone gateway functionality. Market-leading voice quality, rich functionality, and lightweight, compact design. IAD 04 is fully compatible with SIP industry standard, can be achieved with many other SIP compliant devices and software interoperability. In addition, it supports including G. 711A / U, G. 723.1 and G. 729AB voice codec.
Carrier and enterprise-class devices, both low-cost VoIP service while preserving the traditional PSTN network. Especially for new VoIP and traditional PSTN operators to seize market operators.
IAD 04 can be with the mainstream SIP proxy server(such as Asterisk, SIP registration server, etc. ) to implement docking. In this kind of environment, SIP server processing SIP registration and call control, IAD 04 access gateway can realize flow media conversion between the IP and PSTN.
SPECIFICATIONS
Carrier and enterprise-class devices, both low-cost VoIP service while preserving the traditional PSTN network. Especially for new VoIP and traditional PSTN operators to seize market operators.
IAD 04 can be with the mainstream SIP proxy server(such as Asterisk, SIP registration server, etc. ) to implement docking. In this kind of environment, SIP server processing SIP registration and call control, IAD 04 access gateway can realize flow media conversion between the IP and PSTN.
SPECIFICATIONS
| Item | IAD04 |
| PHYSICAL INTERFACES | |
| VoIP Interface | 4* FXS or FXO ports |
| Network Interface | 1WAN 1LAN, 10/100M Base-T RJ-45 |
| SIGNALLING & PROTOCOLS | |
| SIP | RFC3261 - Session Initiation Protocol |
| MGCP | MGCP V1.0, RFC3435 |
| VOICE & FAX | |
| Voice over Packet Capabilities | G. 168-2002 compliant Echo Cancellation, Voice Activity Detection(VAD), Comfort Noise Generation(CNG), Dynamic Jitter Buffer(DJB), Packet Loss Concealment(PLC). |
| Voice Codec | G. 711 a-law/μ -law, G. 723.1, G. 729A/B |
| DTMF Mode | RFC2833, SIP INFO, INBAND |
| FAX over IP | T. 38. Up to 14.4 kbps |
| IP CONNECTIVITY | |
| IPTransport | TCP/UDP, ARP/RARP, NTP, TFTP, HTTP, TELNET, ICMP, STUN, NAT, DHCP client/server, PPPoEclient, DNS, DNS SRV |
| Voice Transport | RTP/RTCP, Real-Time Transfer Protocol / Real-Time Transport Control Protocol |
| QoS | IP ToS& DSCP Diffserv Tagging, RFC2474 |
| VLAN |
VLAN Tagging(802.1 p/q) Voice/Data/Management VLANs |
| MANAGEMENT | |
| Firmware Update | TFTP, FTP, WEB |
| Configuration & Monitoring | Configuration & Monitoring via WEB, TELNET, BMS/NMS |
| Configuration backup & upload | Configuration update & backup via WEB browser |
| Central Managed | SNMP V1/V2, TR-069 & TR-104 |
| Syslog Protocol | RFC5424. Sysloglevel: DEBUG, NOTICE, WARNING, ERROR |
| SERVICE CAPABILITIES | |
| Voice Routing | Number Manipulation, Dial Plan |
| IVR, CRBT | IVR ( FXO only ). Color Ring Back Tone Customizable |
| Standard Services | Caller ID, Call Transfer, Call Hold, Call Forward, Call Waiting, Change Caller ID, Three-way conference, Do-Not-Disturb( DND) |
| Supplementary Services | Calling Card, Call Shop, Call Center, Fax over IP, etc. |
| White List/Black List | White list and black list access control |
| Voice Routing | Number Manipulation, Dial Plan |
| PHYSICAL | |
| Power | Adapter Input: 100-240VAC, 50-60Hz, Output: 12V DC |
| Environmental |
Operational: 32-104F / 0-40° C Storage: -4-176F /-20-80° C Humidity: 10%-90% non-condensing |
| REGULATORY COMPLIANCE | |
| Certification | CE, FCC |
| Safety and EMC |
CE LVD EN60950-1: 2006 FCC part 15 Class B CE Mark (EN55022 Class B, EN60950, EN55024, EN300 386) |
| DIAGRAM | |
| IAD04-4S | 1 WAN, 1 LAN, 4FXS ports, SIP V2.0 (RFC3261) or MGCP V1.0 (RFC3435) |
| IAD04-4O | 1 WAN, 1 LAN, 4FXO ports, SIP V2.0 (RFC3261) or MGCP V1.0 (RFC3435) |
