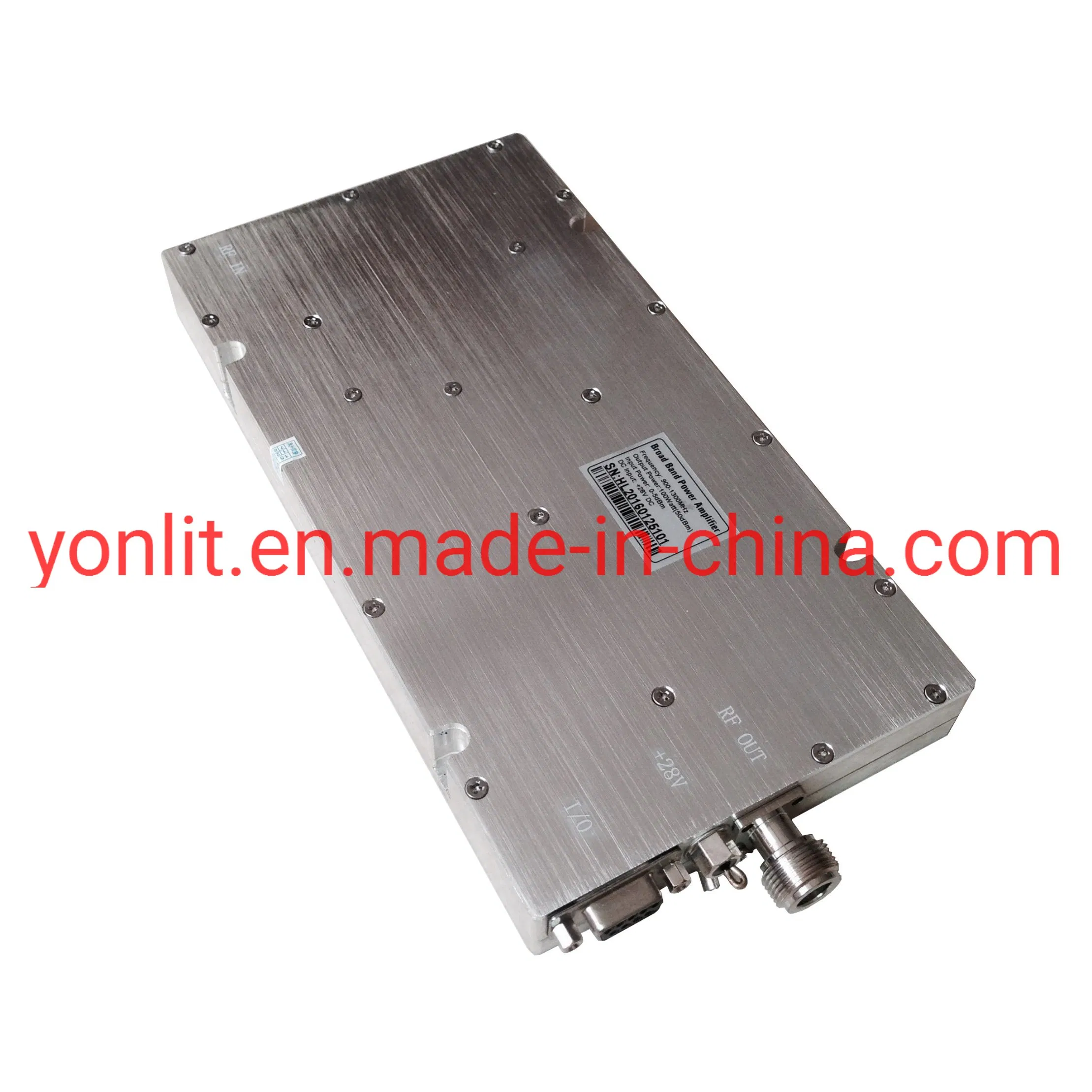

              Gsp L1 1550 -1620MHz 50W High Power Amplifier for Drone Jammer
              • Gsp L1 1550 -1620MHz 50W High Power Amplifier for Drone JammerGsp L1 1550 -1620MHz 50W High Power Amplifier for Drone Jammer
              • Gsp L1 1550 -1620MHz 50W High Power Amplifier for Drone JammerGsp L1 1550 -1620MHz 50W High Power Amplifier for Drone Jammer

              Gsp L1 1550 -1620MHz 50W High Power Amplifier for Drone Jammer

              GPS L1 50W RF PA for Drone Jammer No.ItemRequirements1 Frequency Range1550-1620MHz 2Output Power47dBm3 Input Power5-10dB4Working Current<6A5PA Gain>47dB6PA Gain Adjust31dB,1dB Step7In-Band Ripple2dB8IN/OUT VSWR&le;1.59Working Voltage28VDC10RF IN/OUT PortsSMA - Female11Dimension180*90*25mm ......

              Send Inquiry

              Product Description

              GPS L1 50W RF PA for Drone Jammer

              No.ItemRequirements
              1 Frequency Range1550-1620MHz
              2Output Power47dBm
              3 Input Power5-10dB
              4Working Current<6A
              5PA Gain>47dB
              6PA Gain Adjust31dB,1dB Step
              7In-Band Ripple2dB
              8IN/OUT VSWR1.5
              9Working Voltage28VDC
              10RF IN/OUT PortsSMA - Female
              11Dimension180*90*25mm (Exclusive Connector)
              12Power Supply PortPull-core Capacitance
              13Working Temperature- 25ºC to ..65ºC
              14ProtectionShutdown more than 75ºC, auto-restart less than 50ºC
              Shutdown over High-VSWR, auto-restart after 30s
              15 I/O PortDB15 Female
              (Parall)
              PIN1: 1dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT)
              PIN2: 2dB (Hang in air or add 5V: No ATT; Grounding:  Enable ATT)
              PIN3: 4dB (Hang in air or add 5V: No ATT; Grounding:  Enable ATT)
              PIN4: 8dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT)
              PIN5:16dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT)
              PIN7: VSWR (Reflected RF Power Indicator; Max voltage:4V)
              PIN10: P/L (Output RF Power Indicator; Max voltage:4V)
              PIN11: LE /EN (5V: PA OFF; Hang in air or grounding: PA ON)
              PIN14: T/L(Temperature Indicator :0.01V/1Celsius)
              PIN1: GND
              PIN6, PIN8,PIN9,PIN12,PIN13: NC
              DB9 Female
              RS485(option)
              PIN1,PIN2:  RS485A;   PIN3,PIN4: RS485B;      PIN5: GND
              Data Protocol: China Mobile Standard, Baud Speed: 19200
              Remarks: Items with (Option) are not standard items
