Product Description

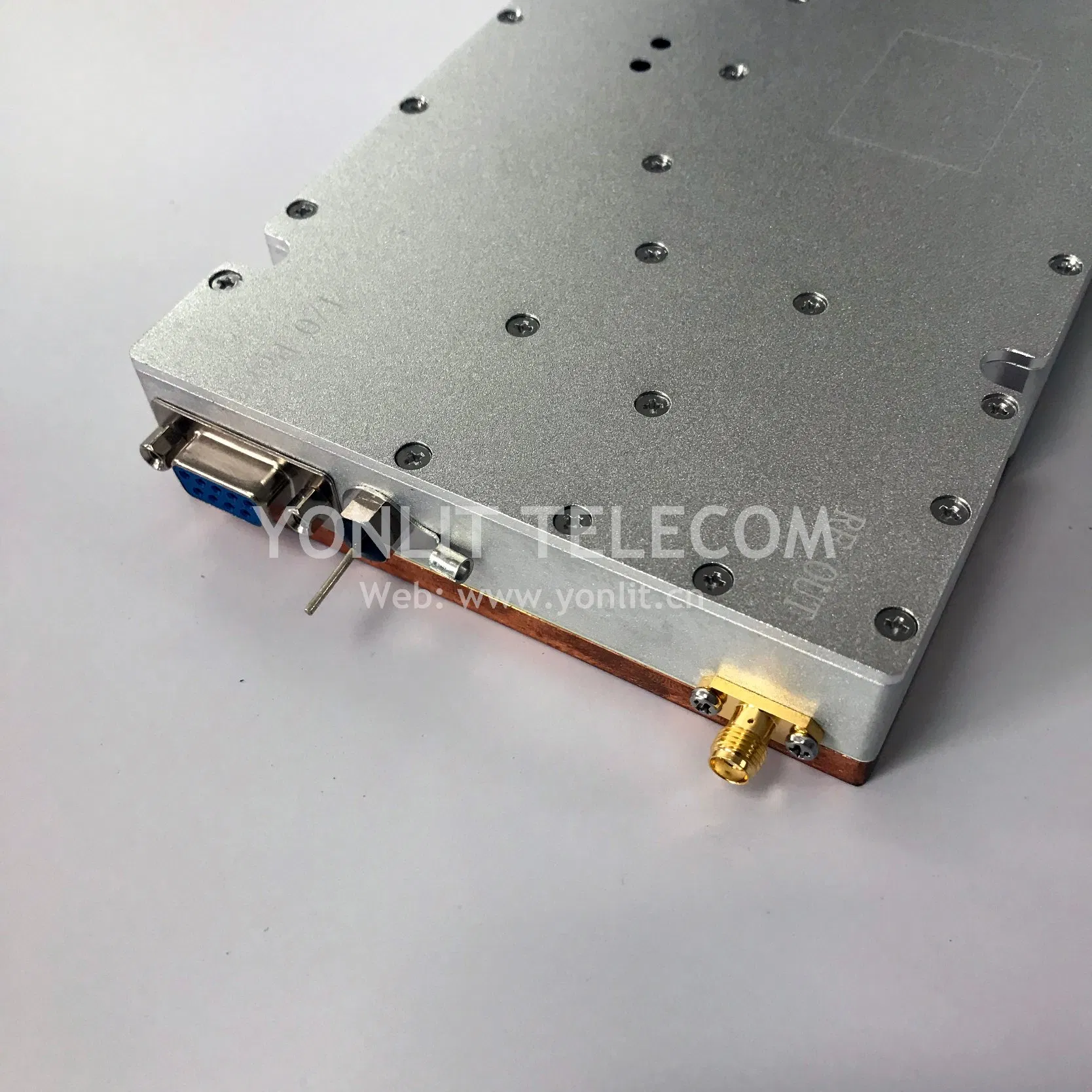

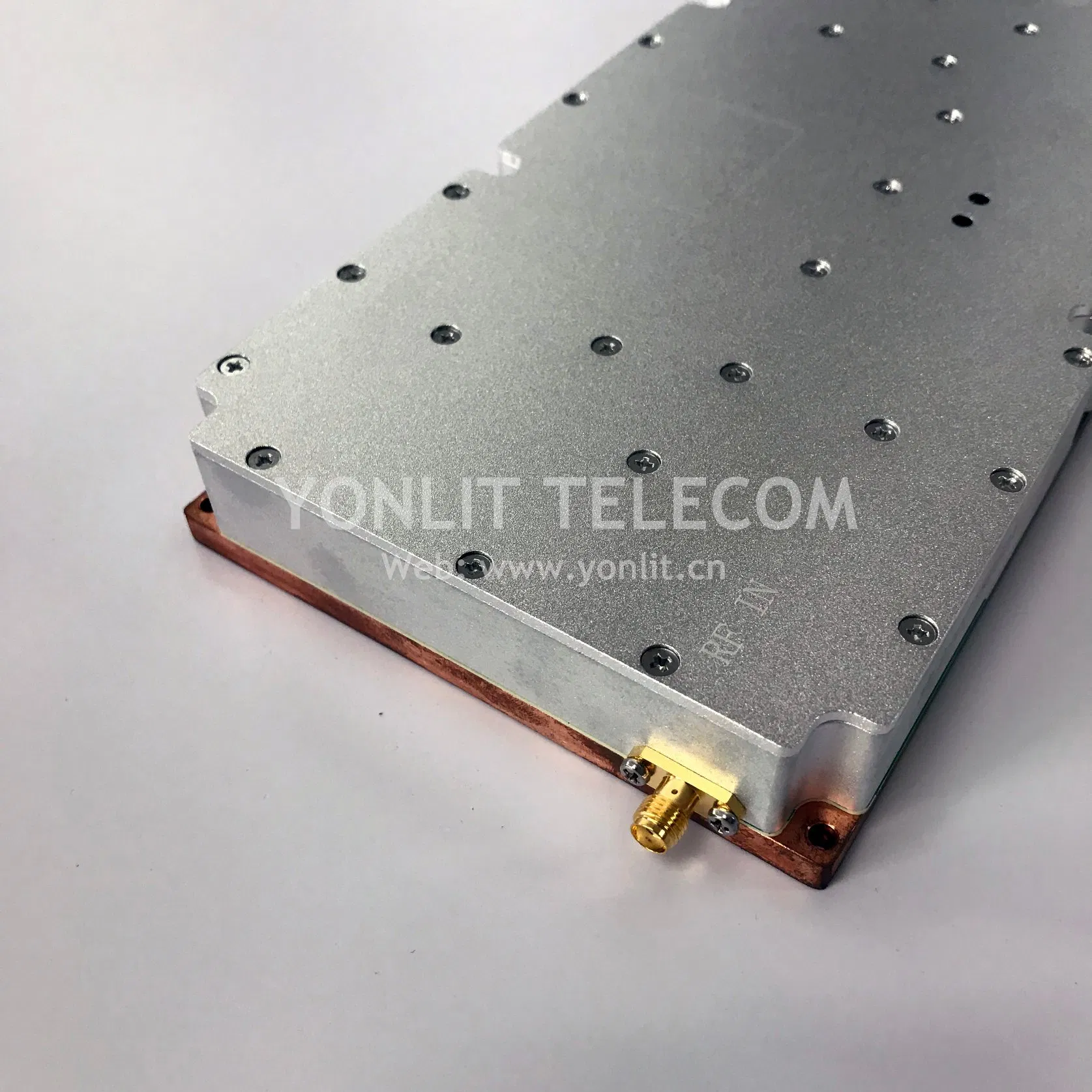

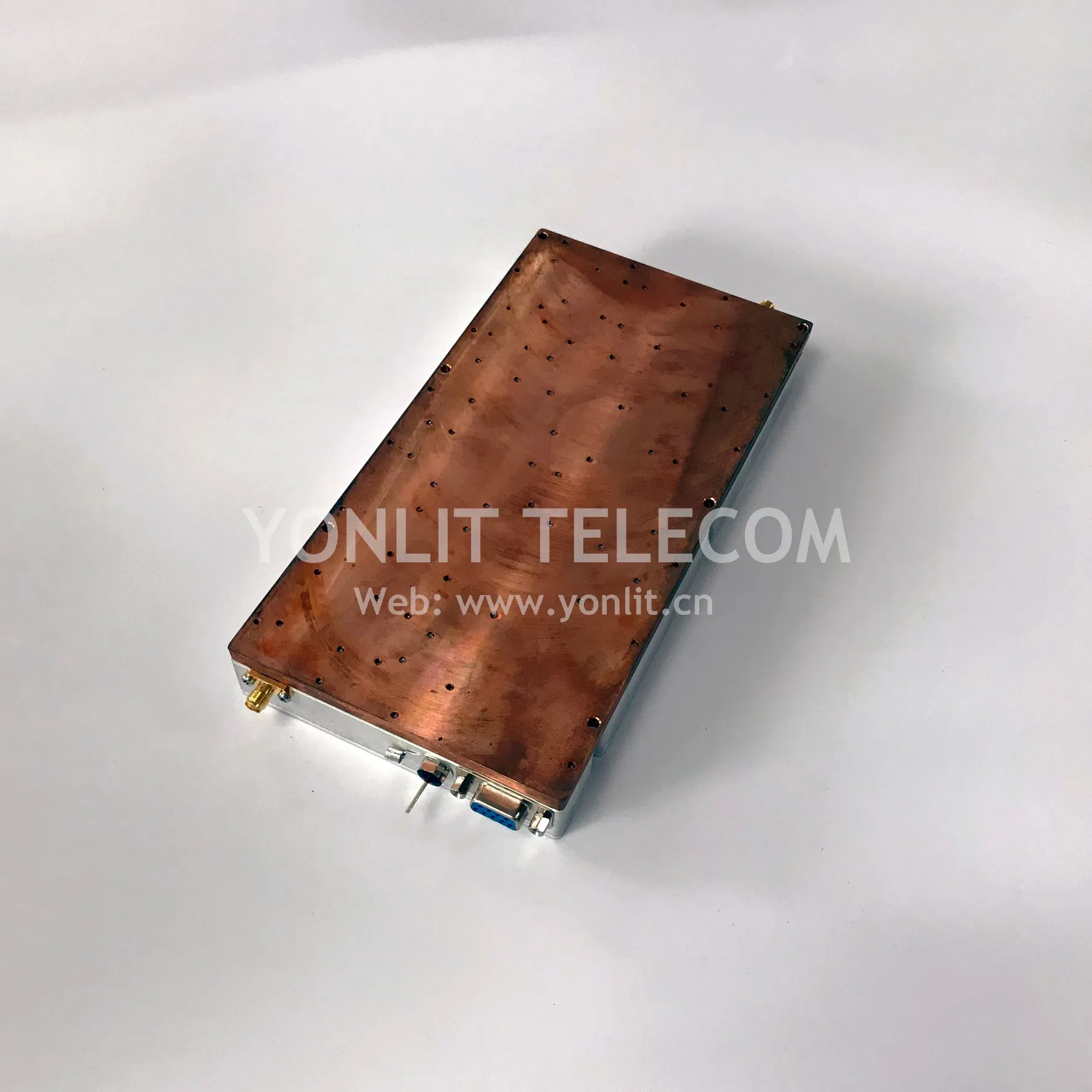

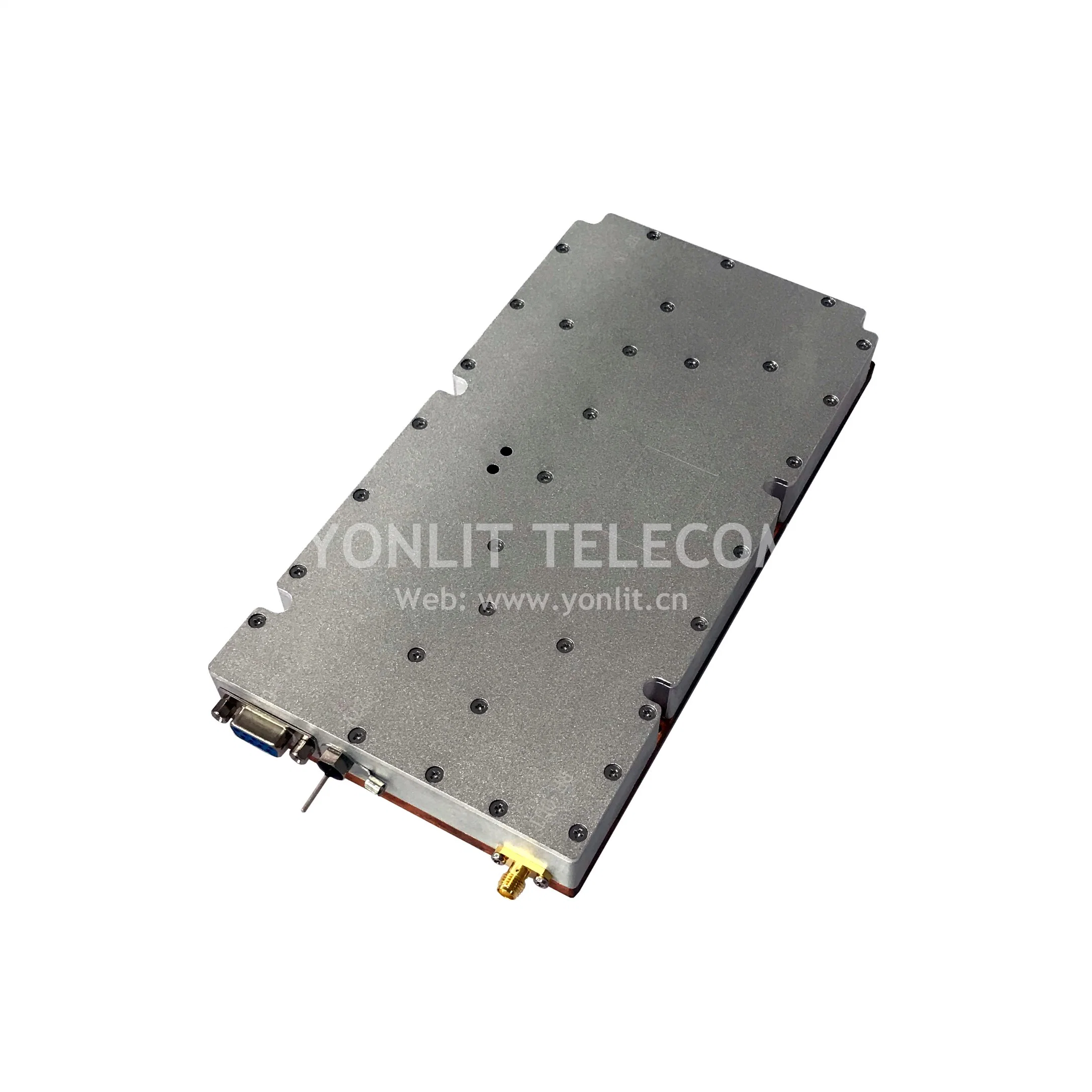

GPS L1 L2 1100-1600MHz BroadBand 100W RF PA for Drone Jammer

No.	Item		Requirements
1	Frequency Range		1100-1600MHz
2	Output Power		50dBm
3	Input Power		5-10dB
4	Working Current		<11A
5	PA Gain		>50dB
6	PA Gain Adjust		31dB,1dB Step
7	In-Band Ripple		2dB
8	IN/OUT VSWR		≤1.5
9	Working Voltage		28VDC
10	RF IN/OUT Ports		SMA - Female
11	Dimension		21011025mm (Exclusive Connector)
12	Power Supply Port		Pull-core Capacitance
13	Working Temperature		- 25ºC to ..65ºC
14	Protection		Shutdown more than 75ºC, auto-restart less than 50ºC
			Shutdown over High-VSWR, auto-restart after 30s
15	I/O Port	DB15 Female (Parall)	PIN1: 1dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT)
			PIN2: 2dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT)
			PIN3: 4dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT)
			PIN4: 8dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT)
			PIN5:16dB (Hang in air or add 5V: No ATT; Grounding: Enable ATT)
			PIN7: VSWR (Reflected RF Power Indicator; Max voltage:4V)
			PIN10: P/L (Output RF Power Indicator; Max voltage:4V)
			PIN11: LE /EN (5V: PA OFF; Hang in air or grounding: PA ON)
			PIN14: T/L(Temperature Indicator :0.01V/1Celsius)
			PIN1: GND
			PIN6, PIN8,PIN9,PIN12,PIN13: NC
		DB9 Female RS485(option)	PIN1,PIN2: RS485A; PIN3,PIN4: RS485B; PIN5: GND Data Protocol: China Mobile Standard, Baud Speed: 19200
Remarks: Items with (Option) are not standard items
