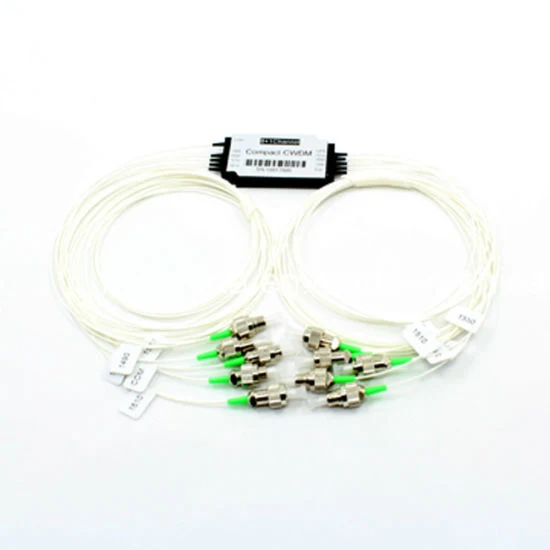

Fiber Optical Mini CWDM Module
Varied customized CWDM Multiplier.Features:Widely Operating Wavelength RangeLow Insertion LossHigh Channel IsolationHigh Stability and ReliabilityUltra Flat Wide Pass bandEpoxy Free Optical PathApplications:System MonitoringWDM SystemTransmitters and Fiber lasersFiber Optical AmplifierFiber optic in......
Send Inquiry
Product Description

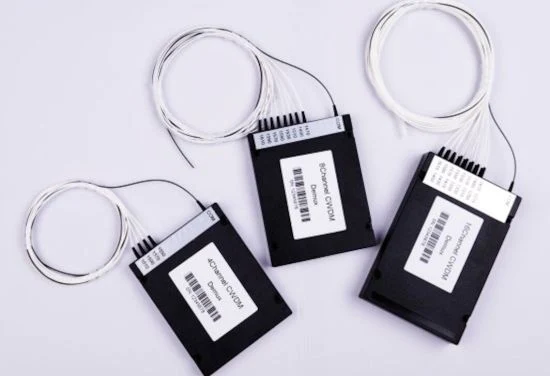

Varied customized CWDM Multiplier.
Features:
Widely Operating Wavelength Range
Low Insertion Loss
High Channel Isolation
High Stability and Reliability
Ultra Flat Wide Pass band
Epoxy Free Optical Path
Applications:
System Monitoring
WDM System
Transmitters and Fiber lasers
Fiber Optical Amplifier
Fiber optic instruments
SPECIFICATIONS
1. All specifications include the effect of operating temperature and all states of polarization.
2. Values referenced without connectors and insertion loss for a connector-pair is 0.20dB (typ.) and 0.30dB (max.).
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows:
Basic Components: Connector kits, Adapter kits, Attenuator kits.Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC.
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
note:the price is for FWDM only.
Features:
Widely Operating Wavelength Range
Low Insertion Loss
High Channel Isolation
High Stability and Reliability
Ultra Flat Wide Pass band
Epoxy Free Optical Path
Applications:
System Monitoring
WDM System
Transmitters and Fiber lasers
Fiber Optical Amplifier
Fiber optic instruments
SPECIFICATIONS
| Parameters | Unit | 8 Channel Mux | 8 Channel Demux |
| Wavelength Range | nm | 1260 ~ 1620 | |
| Channel Center Wavelength | nm | 1470, 1490, 1510, 1530,1550,1570, 1590,1610 | |
| Channel Spacing | nm | 20 | |
| Channel Passband | nm | λc ± 6.5 | |
| Channel No. | λ | 8 | |
| Insertion Loss | dB | ≤1.5 | |
| Adjacent Channel Isolation | dB | ≥ 30 | |
| Non-adjacent Channel Isolation | dB | ≥ 40 | |
| PDL | dB | ≤ 0.2 | |
| Polarization mode dispersion | ps | ≤ 0.2 | |
| Directivity | dB | ≥ 50 | |
| Return loss | dB | ≥ 45 | |
| Optical Power | mW | ≤ 500 | |
| Operating Temperature | ºC | -10 ~ +70 | |
| Storage Temperature | ºC | -40 ~ +85 | |
| Dimension | mm | 53.8*28.0*8.0 | |
1. All specifications include the effect of operating temperature and all states of polarization.
2. Values referenced without connectors and insertion loss for a connector-pair is 0.20dB (typ.) and 0.30dB (max.).
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows:
Basic Components: Connector kits, Adapter kits, Attenuator kits.Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC.
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
note:the price is for FWDM only.
