Eoc Mixer with 2in- 2out Cldo-0201
Product DescriptionCLDO-0201 is an EOC Mixer with 2in and 2out.Operation EnvironmentTemperature:Operating: -40°C to +70°CStorage: -40°C to +70°CHumidity: 0%-100% non-condensingApplication & StandardsApplication: Ethernet Over Coaxial cableComply with: GY/T 137-199......
Send Inquiry
Product Description
Product Description
CLDO-0201 is an EOC Mixer with 2in and 2out.
Operation Environment
Temperature:
Operating: -40°C to +70°C
Storage: -40°C to +70°C
Humidity: 0%-100% non-condensing
Application & Standards
Application: Ethernet Over Coaxial cable
Comply with: GY/T 137-1999
GY T106-1999
GY-T 235-2008
GB 13837-2003
IEEE 802.3-2000

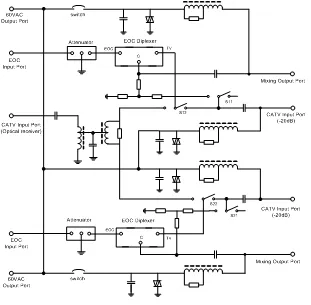

Circuit Diagram
Operation Environment
Temperature:
Operating: -40°C to +70°C
Storage: -40°C to +70°C
Humidity: 0%-100% non-condensing
Application & Standards
Application: Ethernet Over Coaxial cable
Comply with: GY/T 137-1999
GY T106-1999
GY-T 235-2008
GB 13837-2003
IEEE 802.3-2000
Circuit Diagram

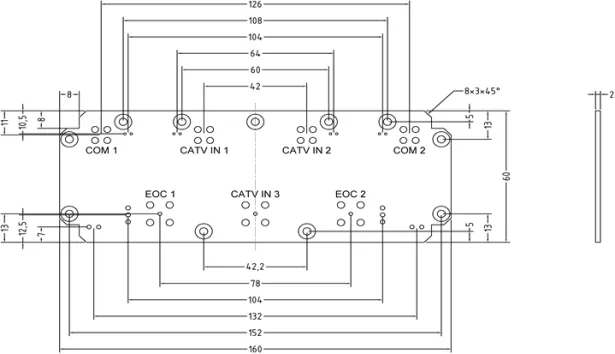

Outline Dimensions
| Test item | Condition/Requirement |
| Impedance | 75Ω |
| Power Pass | 63VAC 10A |
| Mixer Band Pass | 2-65MHz(DATA)&87-1000MHz(TV) |
| Insertion loss | ≤1.5dB |
| Return loss | ≥16.0dB |
| Out of Band Suppression | ≥50.0dB |
| In-band Flatness | ≤2.0dB |
