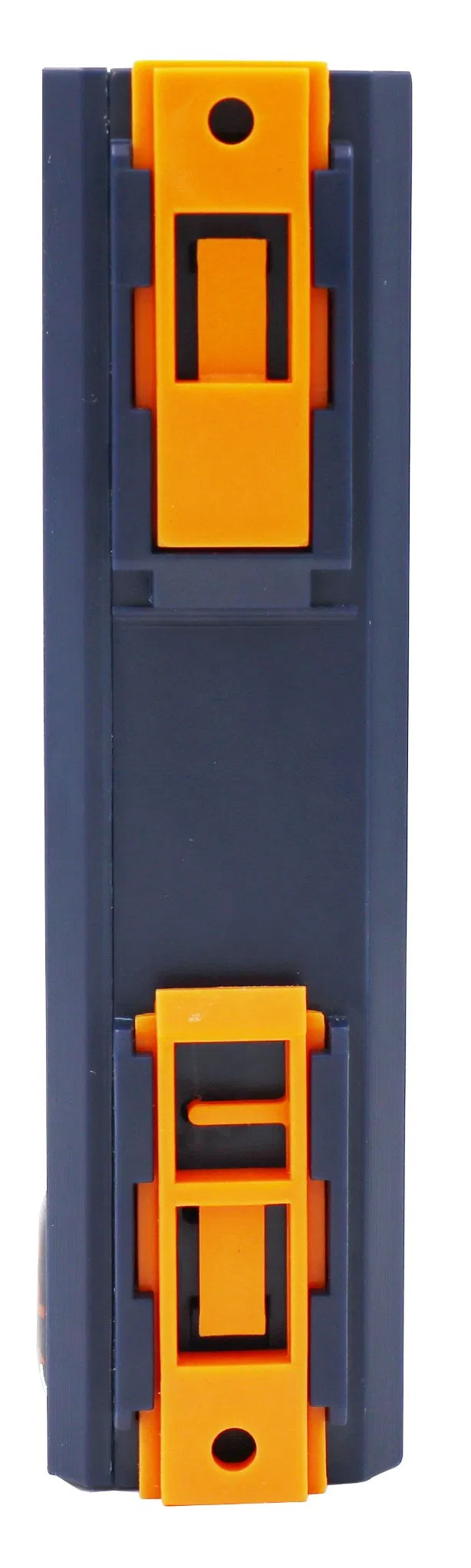

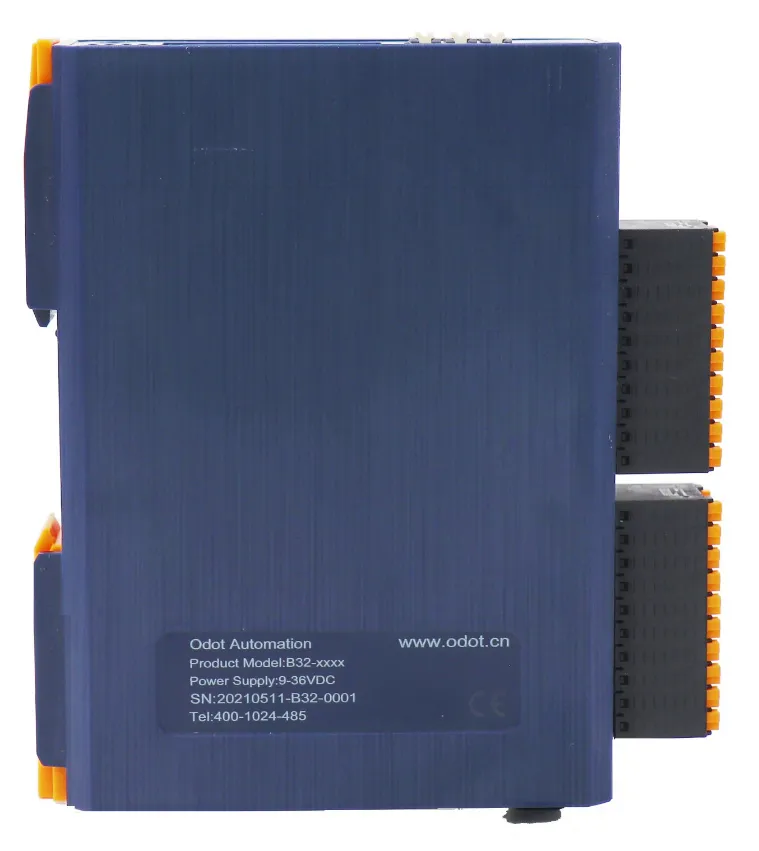

Bn-8032 Profinet Slave Io Module for Small Data Acquisition
Product DescriptionODOT B series is integrated I/O module with modular combinations inside.The power supply and COMM board are at the bottom, and the IO module communicates with the COMM board through the backplane(the green module as below).It could support expansion max of 4 IO slots (only 2 IO sl......
Send Inquiry
Product Description

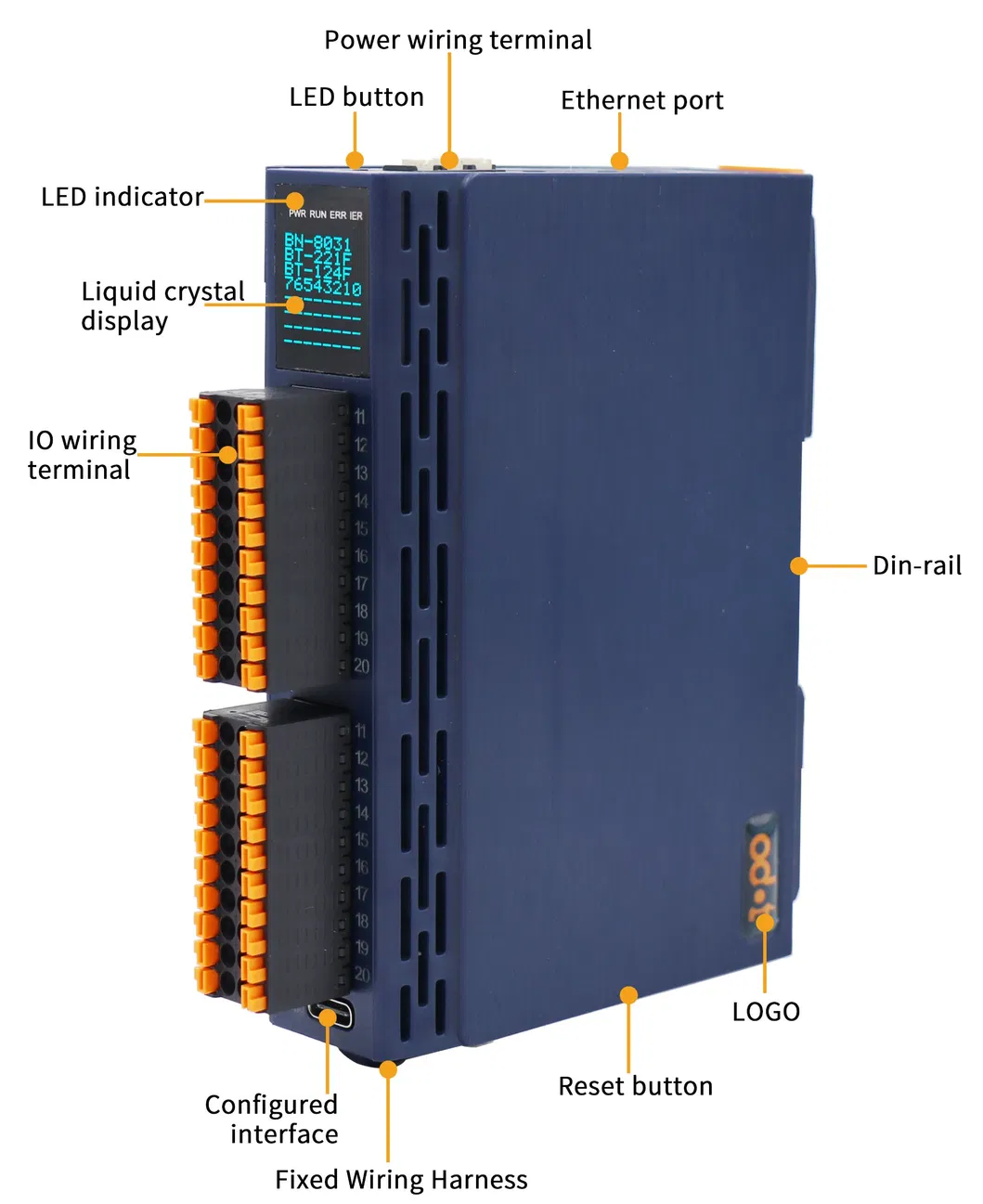

ODOT B series is integrated I/O module with modular combinations inside.

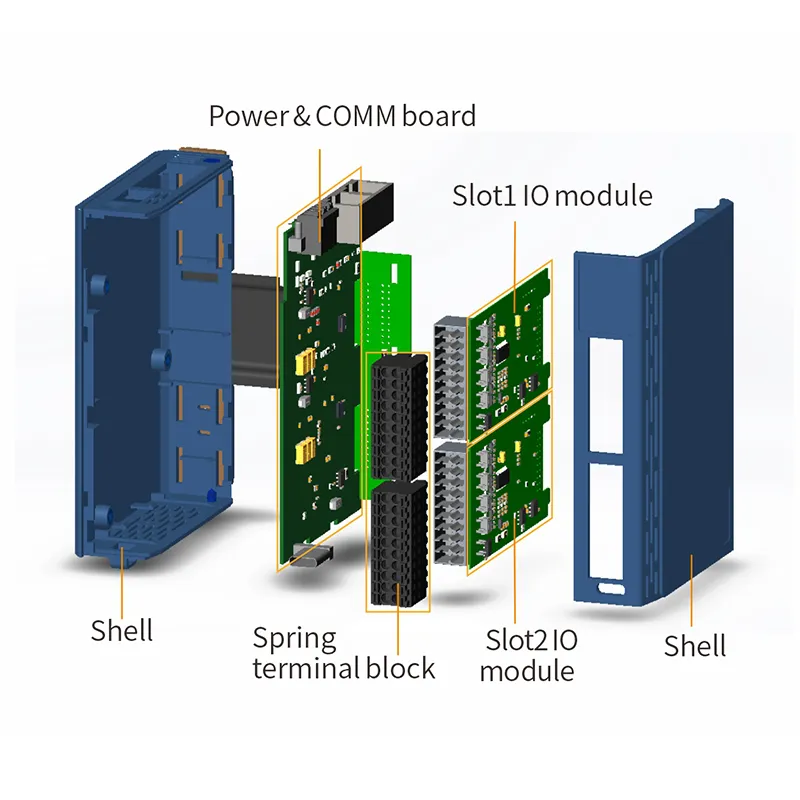

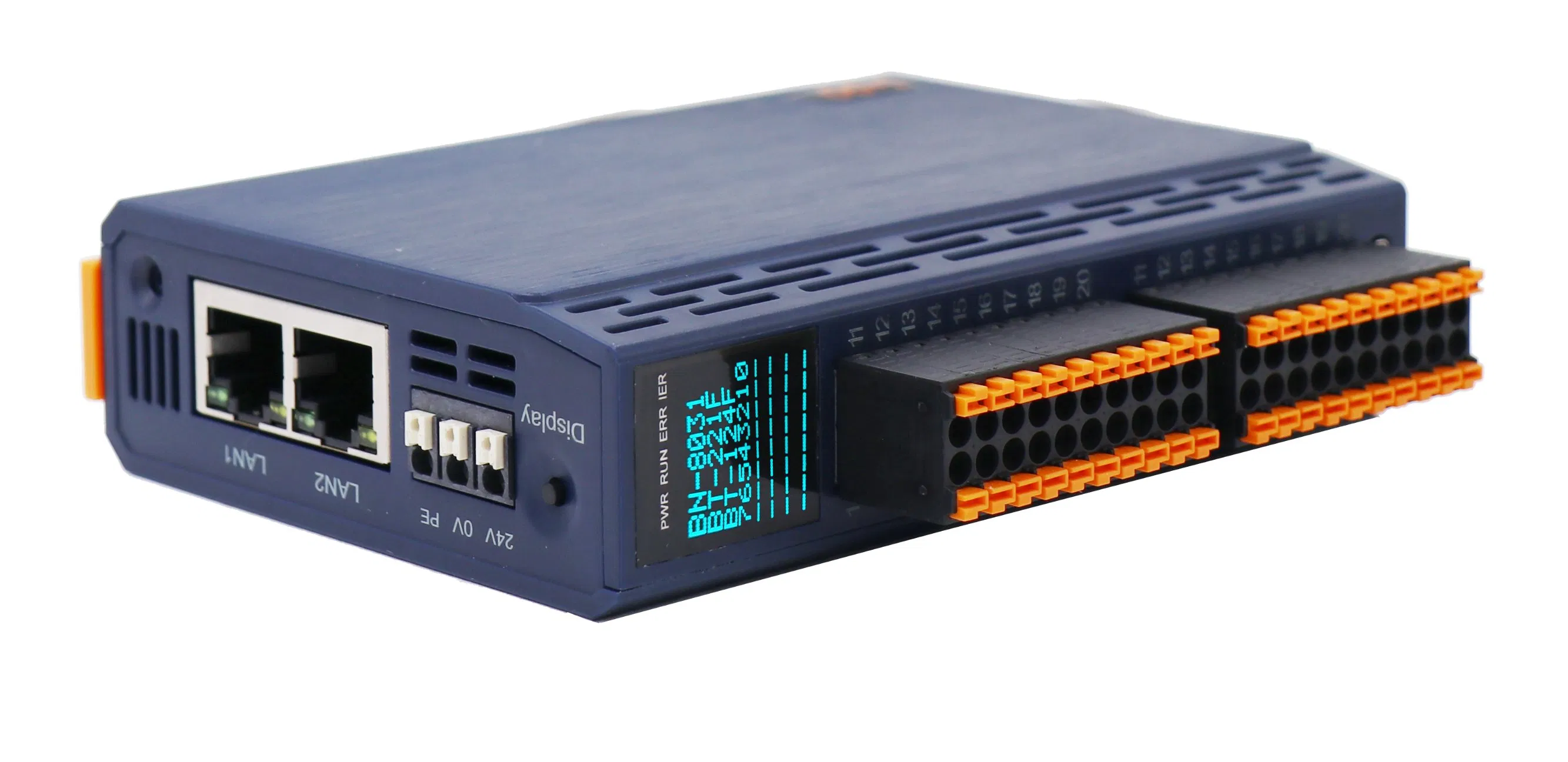

The power supply and COMM board are at the bottom, and the IO module communicates with the COMM board through the backplane
(the green module as below).
It could support expansion max of 4 IO slots (only 2 IO slots are installed in below diagram).

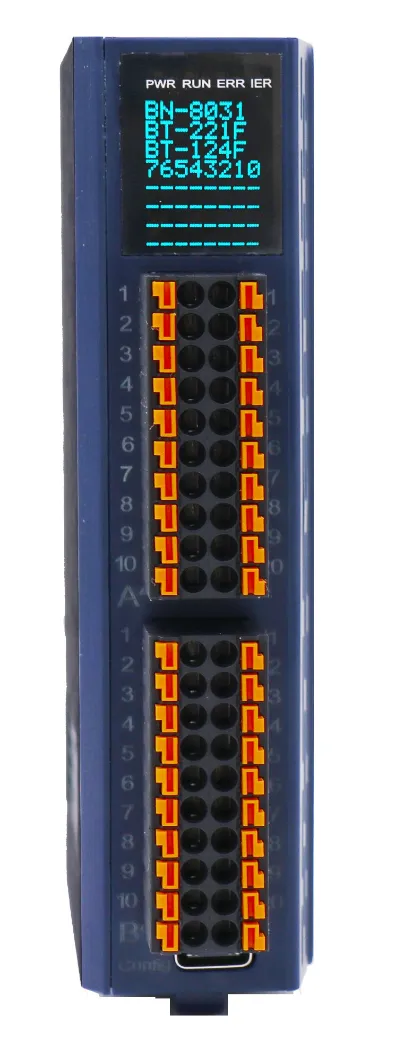

Function:
*B32 BOX-32,32 channel sets 3 slots, slot 0 is adapter slot, slot 1/2 is I/O module slot.
*B64 BOX-64 ,32 channel sets 5 slots, slot 0 is adapter slot, slot 1/2/3/4 is IO module slot.
*Slot 0 can be optionally configured with Modbus TCP/Modbus RTU communication module,
Profinet *communication module, EtherCAT communication module.
*Slot Slot 1/2/3/4 can be freely selected according to customer I/O requirements.
*Support up to 32 channels I/O.
*Working Temperature: -40~85ºC.
Feature:
*Industrial lightning protection, normal working during thunderstorms.
*Wide temperature range, adapt to harsher environments.
*Firm and compact construction, save space.
*Wide voltage range, adapt to any country voltage.
*IP 40, suitable for all kinds of harsh environments.
*DIN-Rail Mounting, easy to install and devices is free to move.
| AIOBOX-16: | AIOBOX-32: | |
| Power supply: Nominal voltage:24v DC | Power supply: Nominal voltage:24 v DC | |
| Input range:9-36v DC | Input range:9-36 v DC | |
| Power:Max.250mA@24 v DC | Power:Max.400mA@24 v DC | |
| I/O wiring:Max.1.5mm² (AWG 16) | I/O wiring:Max.1.5mm² (AWG 16) | |
| System power interface:3.81mm plug-in screw terminal | System power interface:3.81mm plug-in screw terminal | |
| Field power interface:3.5mmplug-in screw terminal | Field power interface:3.5mm plug-in screw terminal | |
| Number of slots:3 | Number of slots:5 | |
| Size:25*140*110mm | Size:37*140*110mm | |
| AIO-X8031(MODBUS ): | AIO-X8032(Profinet): | |
| Number of network ports:2 RJ45,Support switch function | Adapter type:Profnet IO Device | |
| Adapter support 1:Modbus TCP Server | Number of network ports:2,Support switch function | |
| Rate:10/100Mbps self-adaptation MDI/MDIX | Rate:10/100Mbps self-adaptation MDI/MDIX | |
| Transmission distance:maximum 100m | Transmission distance:maximum 100m | |
| Clients:Support 2 clients at the same time | Data length:input max.512 Bytes | |
| Function code:01/02/03/04/05/06/15/16 | output max.512 Bytes | |
| Isolation protection:Electromagnetic isolation | Isolation protection:Electromagnetic isolation | |
| Number of serial ports:1 RS485 | ||
| Adapter support2:Modbus RTU Slave | AIO-X8012(Profibus DP): | |
| Connection Type:3.81mm plug-in screw terminal | Adapter type:Profibus DP Slave | |
| ESD protection:±16KV | Protocol:Profibus-DP/V0 | |
| Data bits:7,8 | Number of ports:1 DB9 | |
| Stop bit:1,2 | Rate:9.6K-12Mbps, self-adaptation | |
| Check Digit:No parity, odd parity, even parity | Data length:input max.244 Byte | |
| Baud rate:2400~115200bps | output max.244 Byte | |
| Function code:01/02/03/04/05/06/15/16 | Address setting:8 8-bit dial switch | |
| Serial mode:support RTU and ASCII | ||
| AIO-X8033(EtherCAT): | ||
| Adapter type:EtherCAT Slave | ||
| Number of network ports:2 | ||
| Rate:10/100Mbps self-adaptation MDI/MDIX | ||
| Transmission distance:maximum 100m | ||
| Data length:input max.256 Byte | ||
| output max.256 Byte | ||
| IO module: | ||
| AIO-X1248:8 channel / digital input / 24 v DC /Source type or sink type | ||
| AIO-X2228:8 channel / digital input / 24 v DC / source type | ||
| AIO-X3318:8-channel/analog single-ended input / 0-20mA or 4-20mA, 16-bit | ||
| AIO-X3424:4-channel/analog differential input / (0-20mA or 4-20mA, ±20mA, 16-bit | ||
| AIO-X3713:3 channels/analog input/RTD-PT100 | ||
| AIO-X3804:4-channel/analog input/TC thermocouple | ||
| AIO-X6227:7 channels / 24 v DC / digital composite module 4DI+3DO | ||
| Mechanical properties: | ||
| Shell:metal shell | ||
| weight: | ||
| AIOBOX-16: | ||
| AIOBOX-32: | ||
| Working environment | ||
| Working temperature:-40~85ºC | ||
| Storage temperature:-55~125ºC | ||
| Relative humidity:5~95%(non-condensing) | ||
| Power requirement | ||
| Input voltage:9~36 v DC | ||
| Certification | ||
| EMC:CE | ||
| Warranty period: | ||
| Shelf life:3 years | ||
| Software | ||
| Configuration/Testing software AIO-Box Config | ||
