50W 6- 18GHz C X Ultra Broad Band GaN Solid State Power Amplifier
HLPA 6-18GHz 50W This is a complete solid state microwave power amplifier module that features high efficiency, high output power and wide dynamic range. It is based on advanced microwave device technology and provides long-term reliability and high ruggedness.FEATURE6-18 GHz ultra-broadbandPsat:50W......
Send Inquiry
Product Description

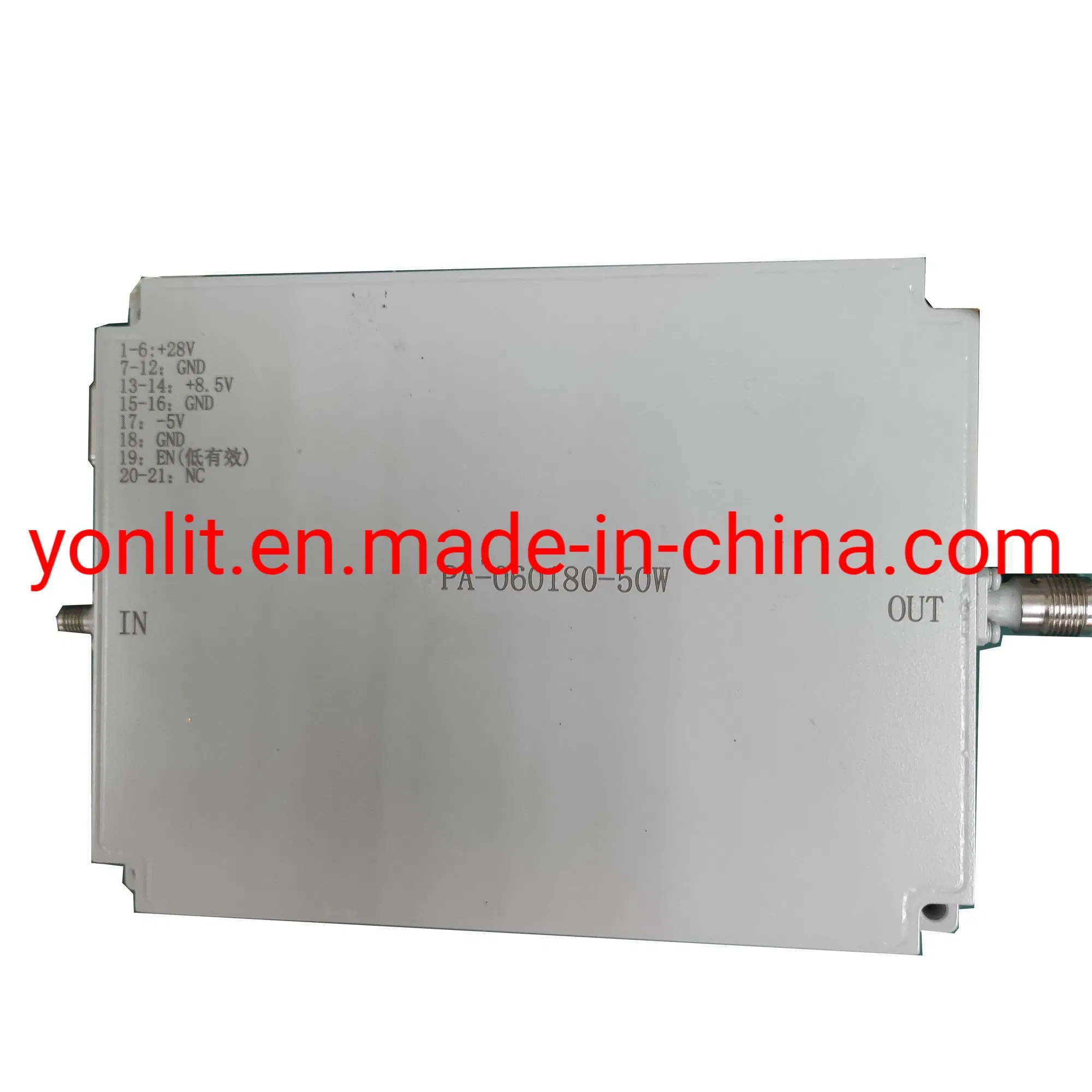

HLPA 6-18GHz 50W
This is a complete solid state microwave power amplifier module that features high efficiency, high output power and wide dynamic range. It is based on advanced microwave device technology and provides long-term reliability and high ruggedness.
FEATURE
6-18 GHz ultra-broadband
Psat:50W
High efficiency, High reliability and ruggedness
Good linearity, Low distortion
Applications: Test& Measurement, Broadcasting, Communication etc.
| Item | A | B |
| Frequency Range | 6-12GHz | 6-18GHz |
| Power Gain @ Psat | 43dB | 43dB |
| Gain Flatness @ Psat | ±1dB | ±1.5 dB |
| Max Out Power | 50dBm | 47dBm |
| Input Return Loss | 10 | 10 |
| Input Power | 5-10dBm | 5-10dBm |
| Harmonic @Pout | <6dBC | <6dBC |
| Spur @Pout | <-60dBC | <-60dBC |
| In Out Impedance | 50 Ohms | 50 Ohms |
| Operating Temperature | 0-45 ºC | 0-45 ºC |
| Power Supply | +28V | +28V |
| Current | <10A | <6A |
| RF Connector | SMA Female | SMA Female |
| Dimension | 140x80x20mm | 140x80x20mm |
