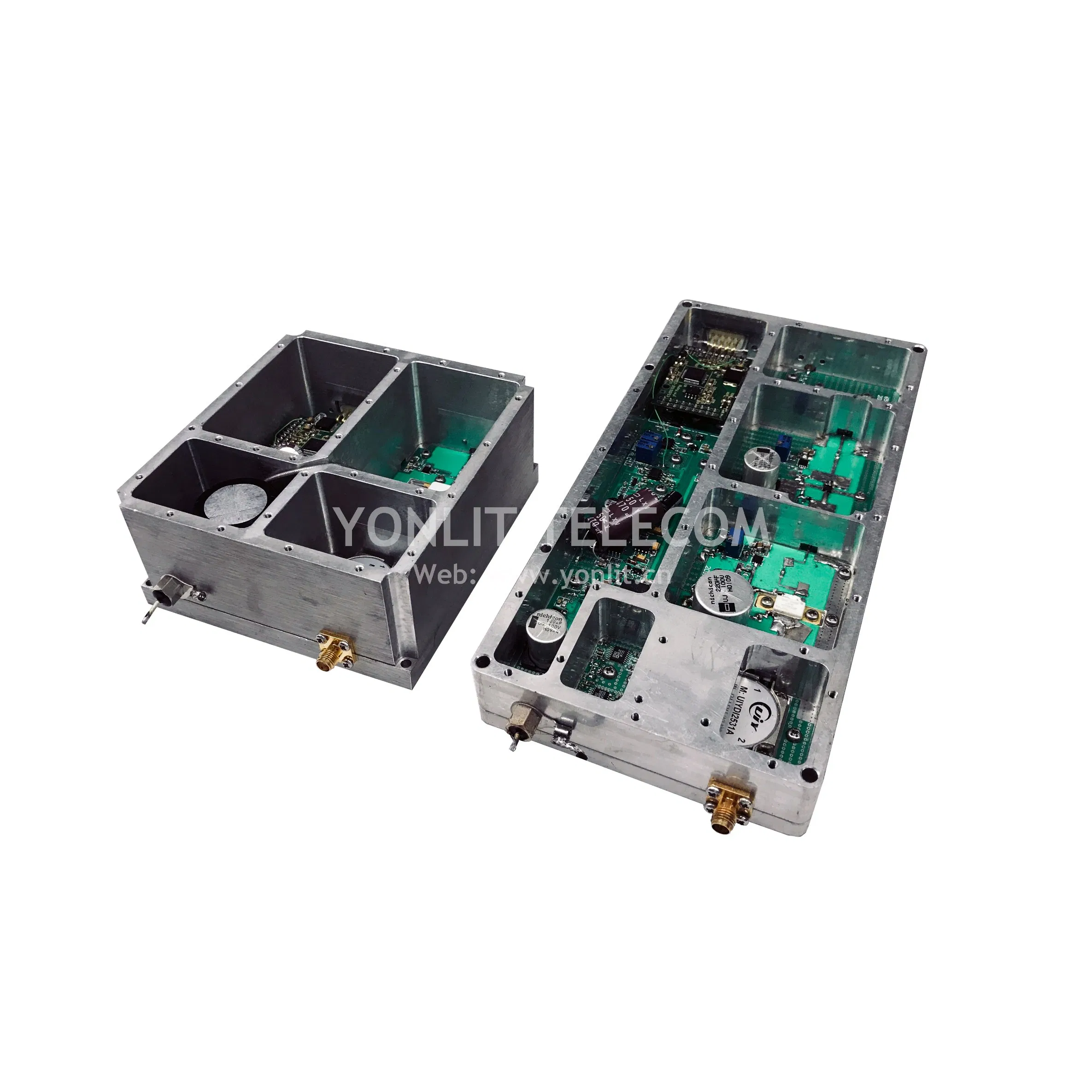

200W 300W 1000W GaN Sspa Pulse PA
ItemParametersFrequency Range2.6 GHz to 3.1GHz ,5.4-5.6GHz, 9.3-9.5GHz Band width200MHzPeak Transmit Power1000 WattPower Gain>50dBInput Signal Level15-20dBmGain Flatness at Psat<3dBDuty Cycle<10%Pulse Width1 to 100 µsecRise Time<100 nsecFall Time<100 nsecPulse Droop0.5 dB @......
Send Inquiry
Product Description
| Item | Parameters |
| Frequency Range | 2.6 GHz to 3.1GHz ,5.4-5.6GHz, 9.3-9.5GHz |
| Band width | 200MHz |
| Peak Transmit Power | 1000 Watt |
| Power Gain | >50dB |
| Input Signal Level | 15-20dBm |
| Gain Flatness at Psat | <3dB |
| Duty Cycle | <10% |
| Pulse Width | 1 to 100 µsec |
| Rise Time | <100 nsec |
| Fall Time | <100 nsec |
| Pulse Droop | 0.5 dB @ 100 µsec |
| Harmonic Suppression | >50 dBc |
| Amplitude Variation | <0.5dB |
| Phase Variation | <±50 |
| Spurious Suppression | >50 dBc |
| IN & OUT VSWR | 2:01 |
| Control Port(Optional) | GPIB IEEE 488/LAN/RS-232/RS485 or Customized |
| Function (Optional) | Monitoring: VSWR, RF Power, Temperature, Current, Input RF Level |
| Protection: Shutdown over High-VSWR, shutdown over High-Temperature and auto-restart | |
| PA Enable \ Disable (TTL) | |
| Operating Temperature | -20ºC to 65ºC |
| Quality Standard (Optional) | MIL-STD-480 (Design), MIL-STD-810(Temperatur), MIL-STD-167(Vibration), MIL-STD-810(Impact), MIL-STD-461(EMI) |
| RF Connectors | SMA-Female (RF Input ) & N-Female (RF Out) |

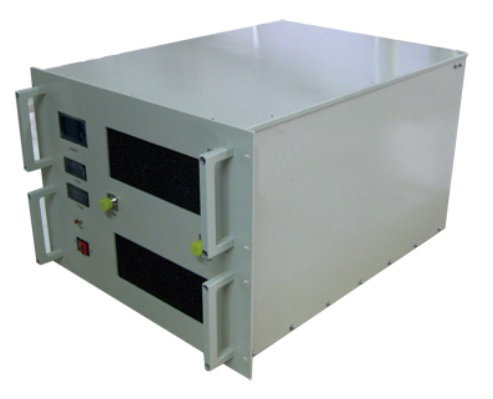

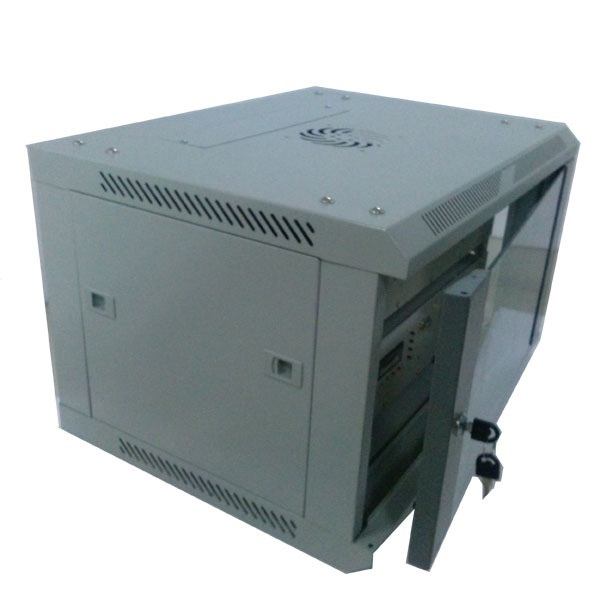

| Dimension | 19'Standard Rack,8UHeight |
| Weight | 20-80KG (Typical) |
| Power Supply | AC220V/50Hz |

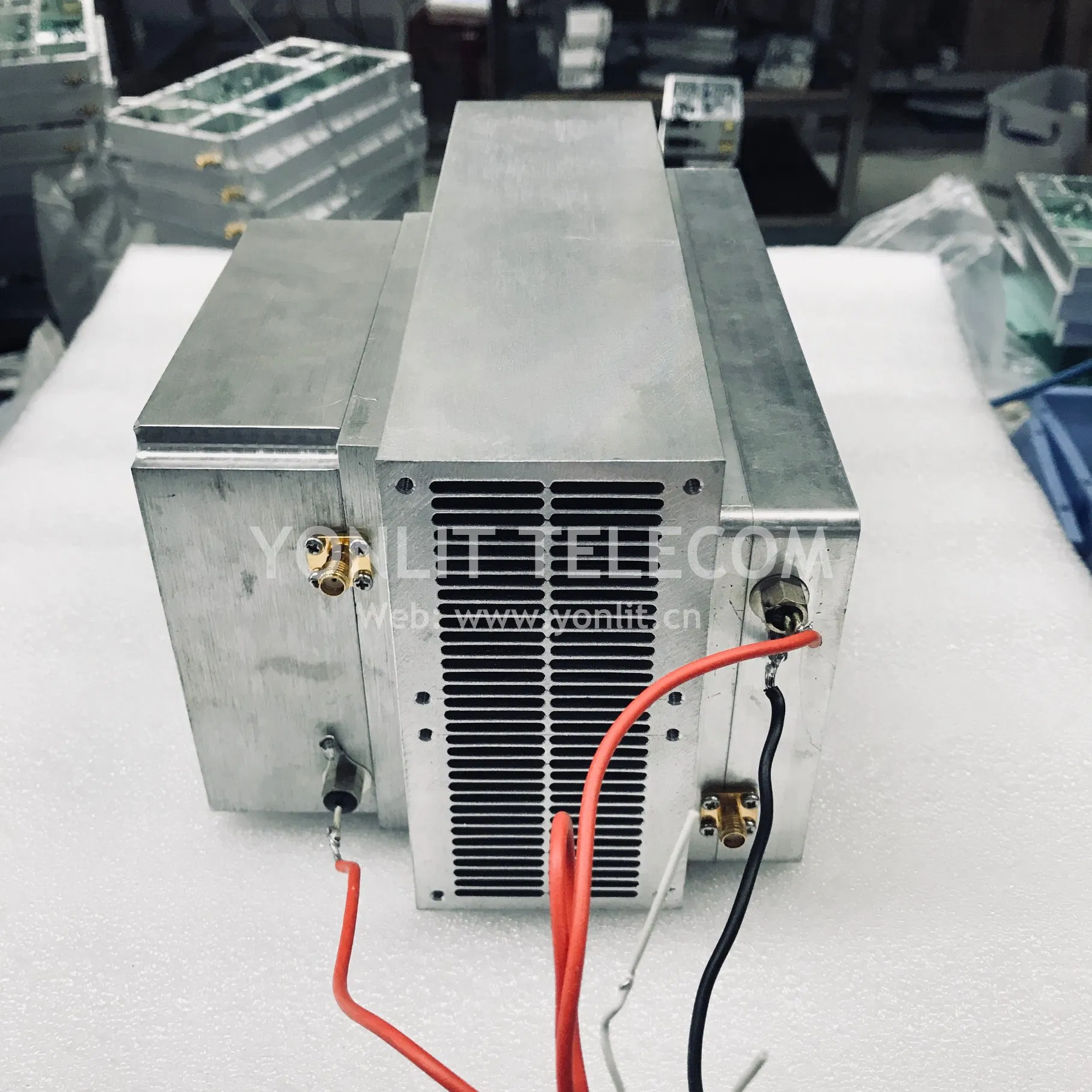

| Cool Type | Auto-Fans cool + Radiator(heat sink) |
