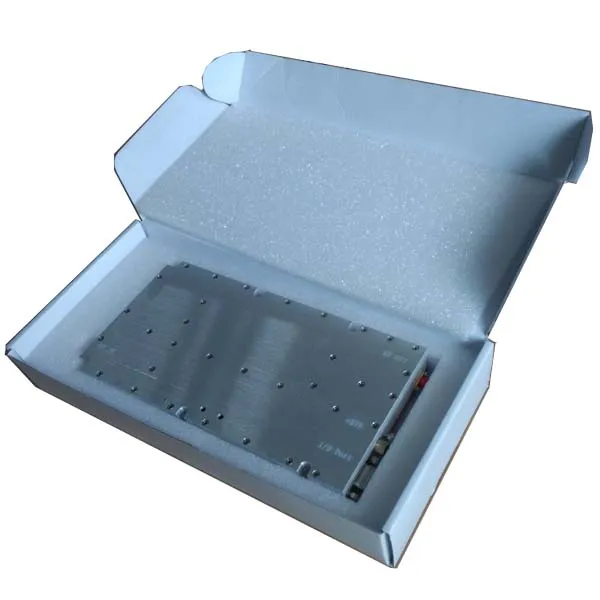

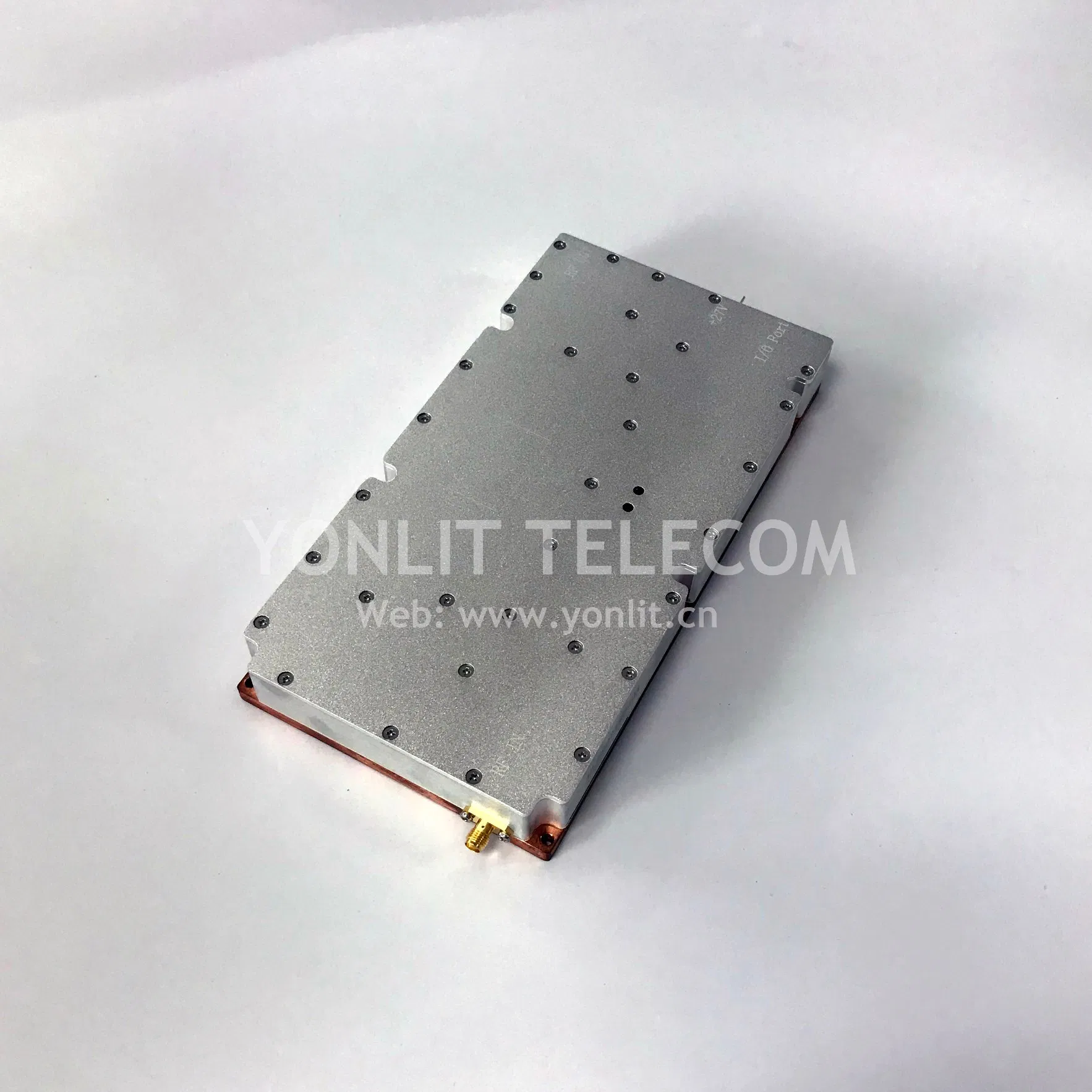

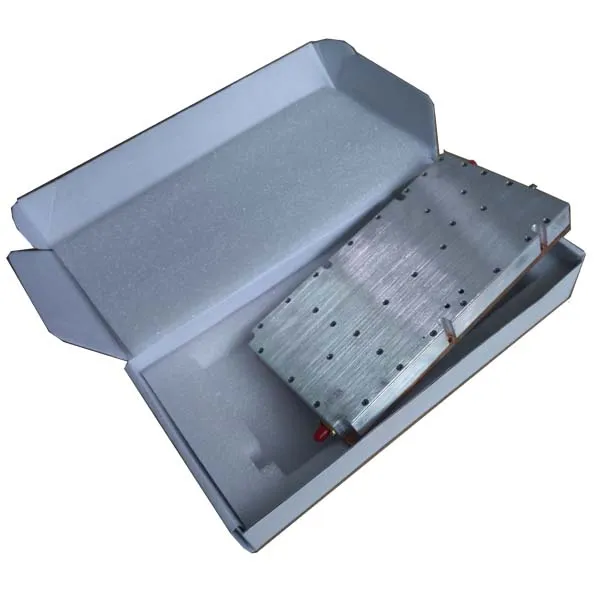

1550 -1620MHz Satellite Power Amplifier 100W 50W Customize
Main Specification: ItemSpecificationFrequency Range1550-1620MHz (Or customized frequency)Max RF Output Power50dBmInput SignalBetter less than 5dBm Gain50±2 dBGain Adjustble Range31dBInter-modulation/In-Band Ripple2dBIn/Out VSWR1.3Working Voltage27VDCWorking Current11Amps (Full Power)Siz......
Send Inquiry
Product Description
Main Specification:
Remark: We are available to provide customized similar Power Amplifier module.
| Item | Specification | |
| Frequency Range | 1550-1620MHz (Or customized frequency) | |
| Max RF Output Power | 50dBm | |
| Input Signal | Better less than 5dBm | |
| Gain | 50±2 dB | |
| Gain Adjustble Range | 31dB | |
| Inter-modulation | / | |
| In-Band Ripple | 2dB | |
| In/Out VSWR | 1.3 | |
| Working Voltage | 27VDC | |
| Working Current | 11Amps (Full Power) | |
| Size&Weight | 180mm*120mm*26mm / 0.8KG | |
| RF Power Connector | SMA-Female | |
| Power Supply Connector | Pull-core Capacitance | |
| Monitoring Interface (DB9,Female) | RS485 Interface: Pin1, Pin2 RS485-A; Pin3, Pin4 RS485-B; | |
| Baud speed: 19200 | ||
| Monitoring Content via RS485 | PA Switch | |
| Gain adjustable 31dB | ||
| RF Power | ||
| Temperature | ||
| Alarm | ||
Remark: We are available to provide customized similar Power Amplifier module.
