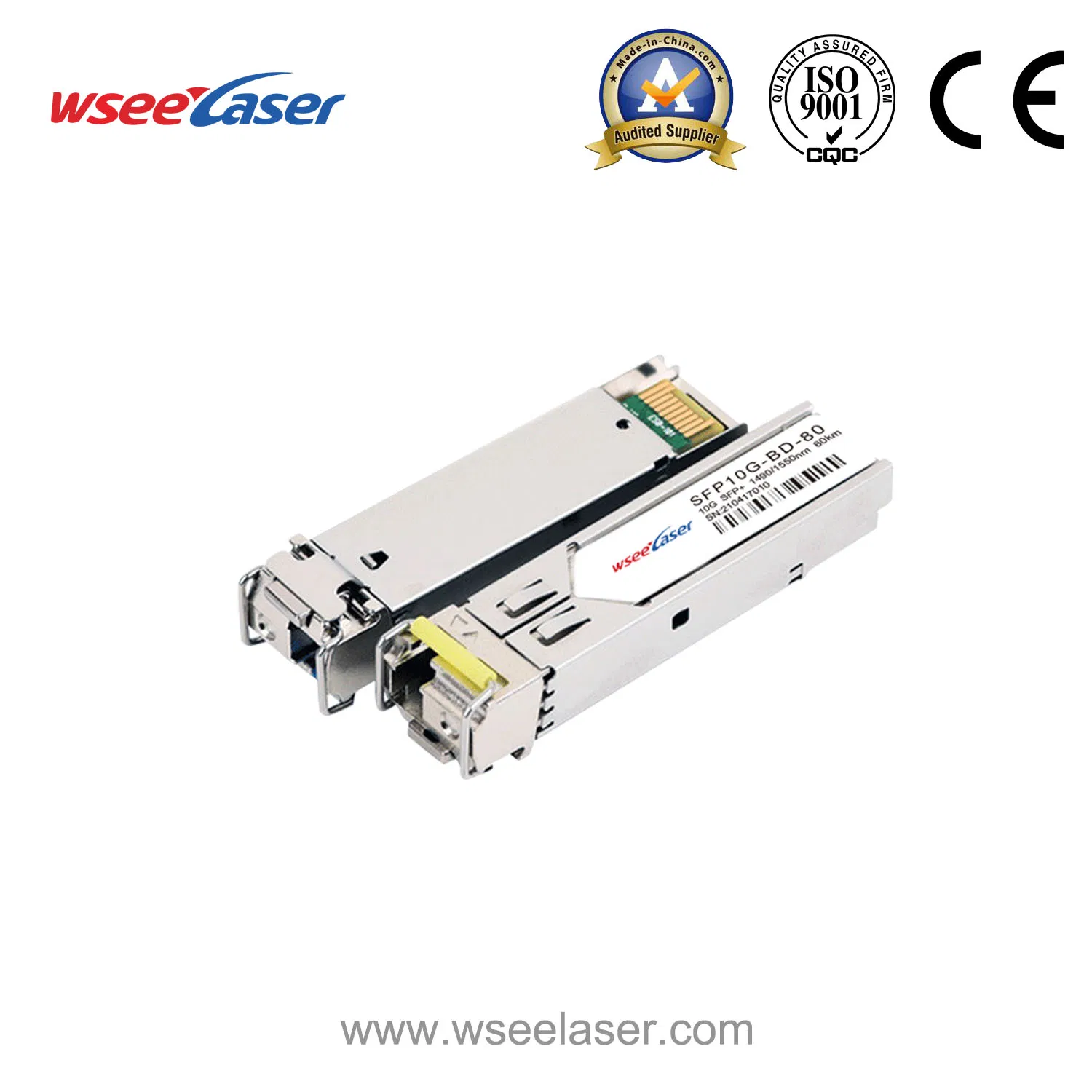

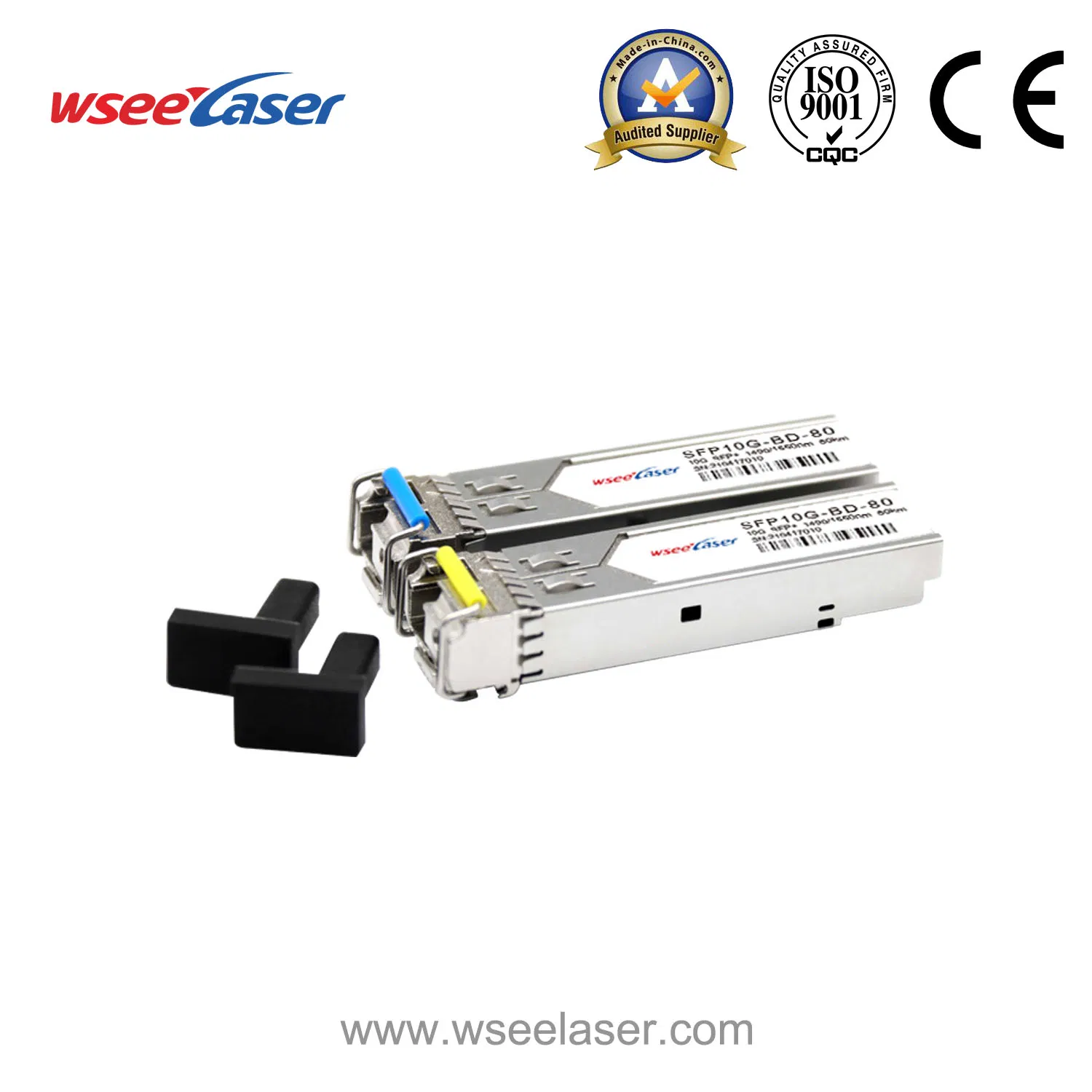

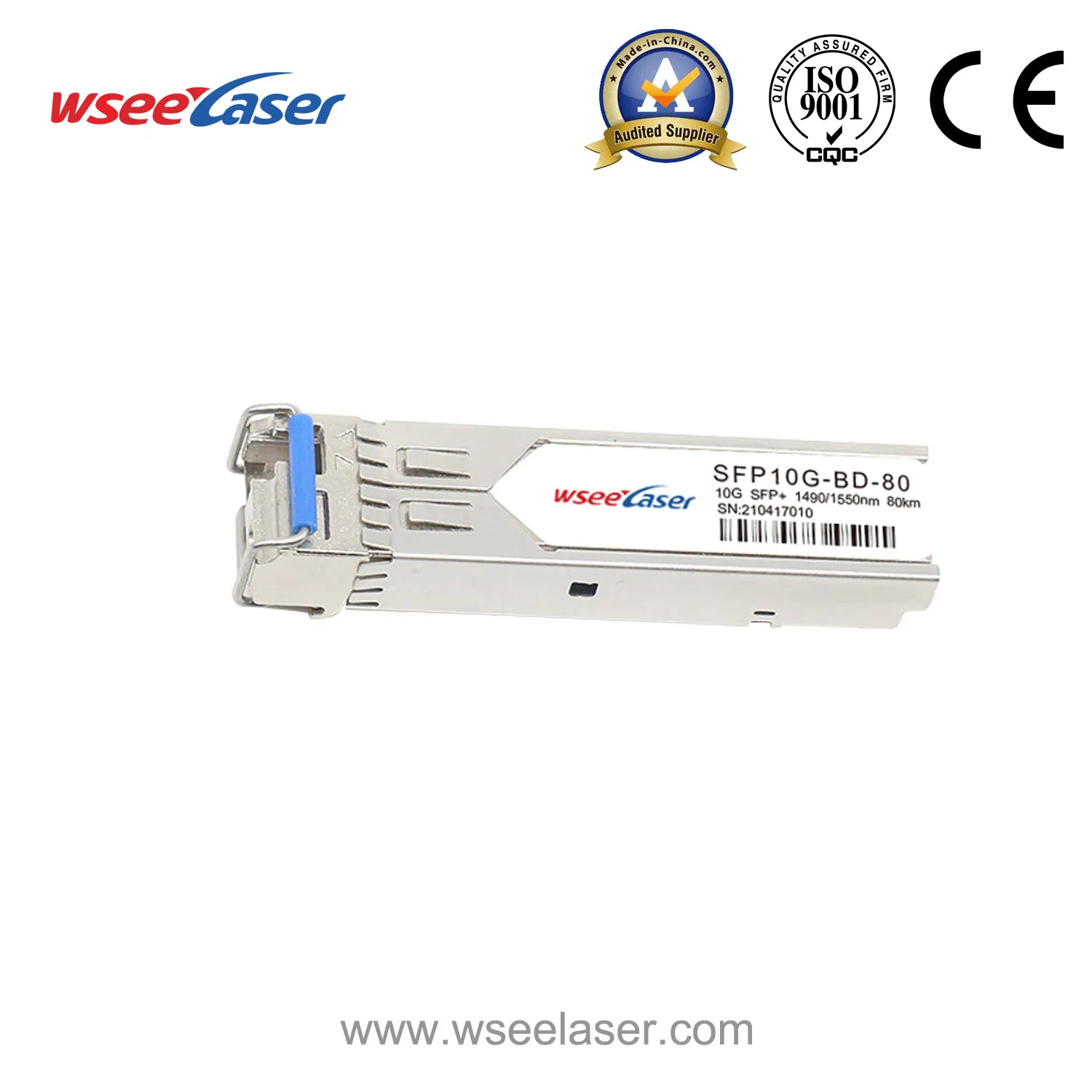

1310/1490/1550nm Bidi SFP Optical Transceiver 80km

Product Description

This series single mode transceiver is small form factor pluggable module for optical data communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The optical module is designed for single mode fiber and operates at a nominal wavelength of 1490nm or 1550nm; The transmitter section uses a EML laser, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.
SFP+ transceiver offer commercial and industrial operating temperature options.
1310/1490/1550nm Bidi SFP Optical Transceiver 80km

Transmitter Operating Characteristic-Optical, Electrical
Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Centre Wavelength	λ_C	1470	1490	1510	nm
Spectral Width	Pm	-	-	1	nm
Laser Off Power	Poff	-	-	-35	dBm	Note1
Average Optical Power	Pavg	0	-	5	dBm	Note1
Extinction Ratio	ER	9	-	-	dB	Note2
Relative Intensity Noise	RIN₁₂OMA	-	-	-128	dB/Hz
Side Mode Suppression Ratio	SMSR	30	-	-	dB
Operating Data Rate	Gb/s	2.4576	-	11.3	Gbps
Optical Eye Mask	%	5	-	-	%	Note2
Eye Diagram	IEEE Std 802.3-2005 10Gb Ethernet 10GBASE-LR compatible

Notes:
[1] The optical power is launched into 9/125µm SMF.
[2] Measured with a PRBS 2³¹ -1 test pattern @10.3125Gbps.

Receiver Operating Characteristic-Optical, Electrical
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Center Wavelength	λr	1530	1550	1565	nm
Receive Sensitivity In Average Power	Psen	-	-	-22	dBm	Note1
Los Assert	LosA	-35	-	-	dBm
Los Dessert	LosD	-	-	-23	dBm
Los Hysteresis	LosH	0.5	-	-	dB
Receiver Overload (P avg )	POL	-	-	-7	dBm	Note1
