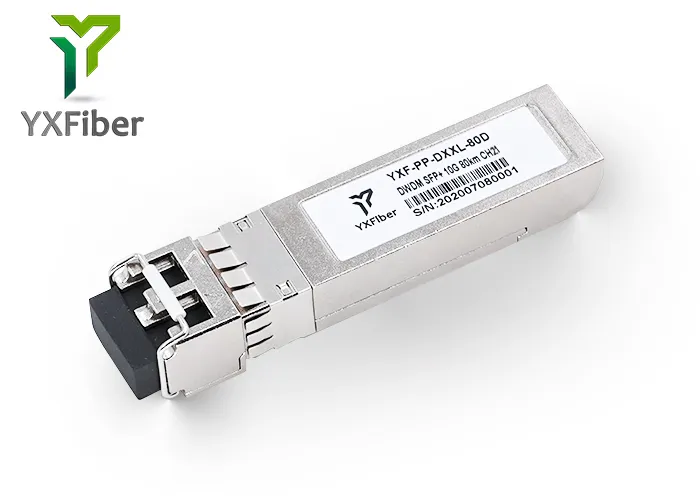

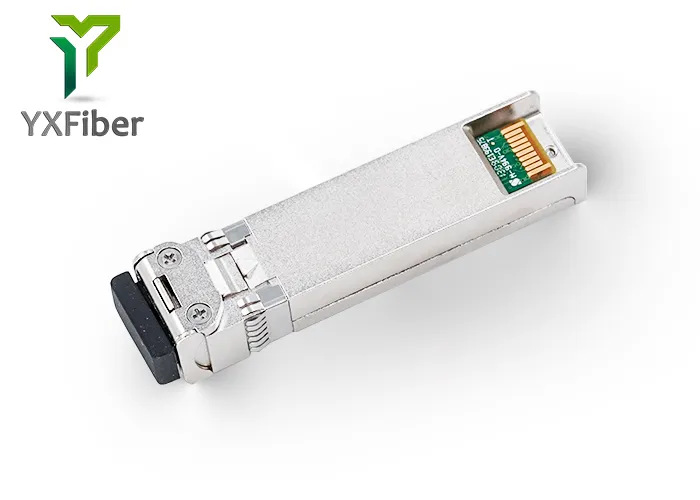

10gbps DWDM SFP+ 10g 80km C22 1559.79nm SFP+ Fiber Module DWDM Factory
10G DWDM C22 1559.79nm 80km SFP+ Module Duplex LC Features: DWDM PON networkITU-T DWDM grid wavelengthsData rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit ratesTemperature Stabilized DWDM DFB TransmitterdMulti channels optionalLow Power Dissipation 1.5W MaximumExcellent ESD protection......
Send Inquiry
Product Description
Features:
DWDM PON network
ITU-T DWDM grid wavelengths
Data rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit rates
Temperature Stabilized DWDM DFB Transmitterd
Multi channels optional
Low Power Dissipation 1.5W Maximum
Excellent ESD protection
-5ºC to 70ºC Operating Case Temperature
Single 3.3V power supply
Diagnostic Performance Monitoring of module temperature,
Supply Voltages, laser bias current, transmit optical power,
receive optical power
RoHS compliant and lead free
Applications:
DWDM optical links
DWDM PON network
Specification 10G DWDM SFP+
| Product type | Data Rate | Wavelength | Reach | LD | TX Power | PD | Rx Sens |
| DWDM SFP+ | 10G | 15xx.xx nm | 40Km | EML | -1~3dbm | PIN | <-20dbm |
| DWDM SFP+ | 10G | 15xx.xx nm | 80Km | EML | 0~4dbm | APD | <-24dbm |
| DWDM XFP | 10G | 15xx.xx nm | 40Km | EML | -1~3dbm | PIN | <-16dbm |
| DWDM XFP | 10G | 15xx.xx nm | 80Km | EML | 0~4dbm | APD | <-24dbm |
