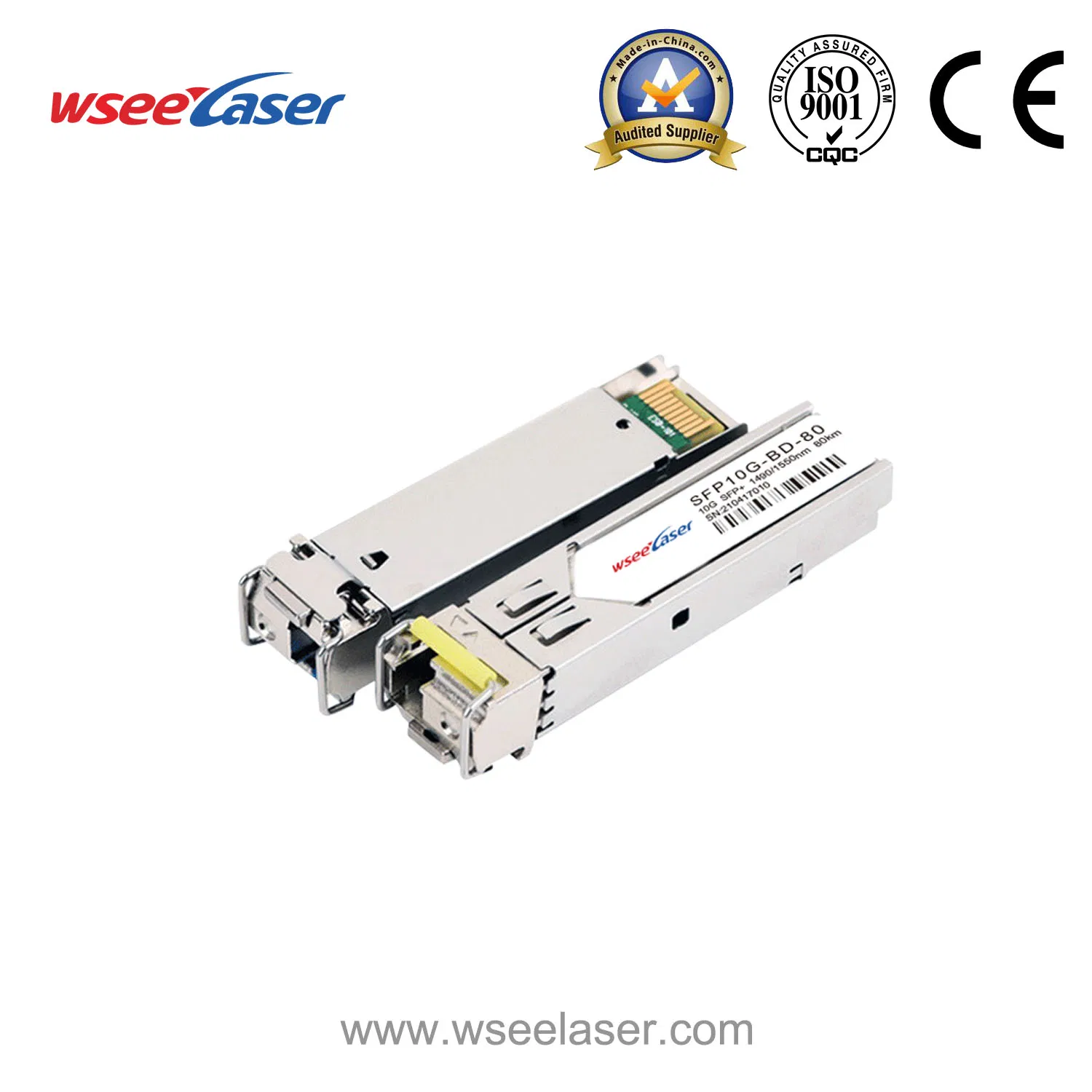

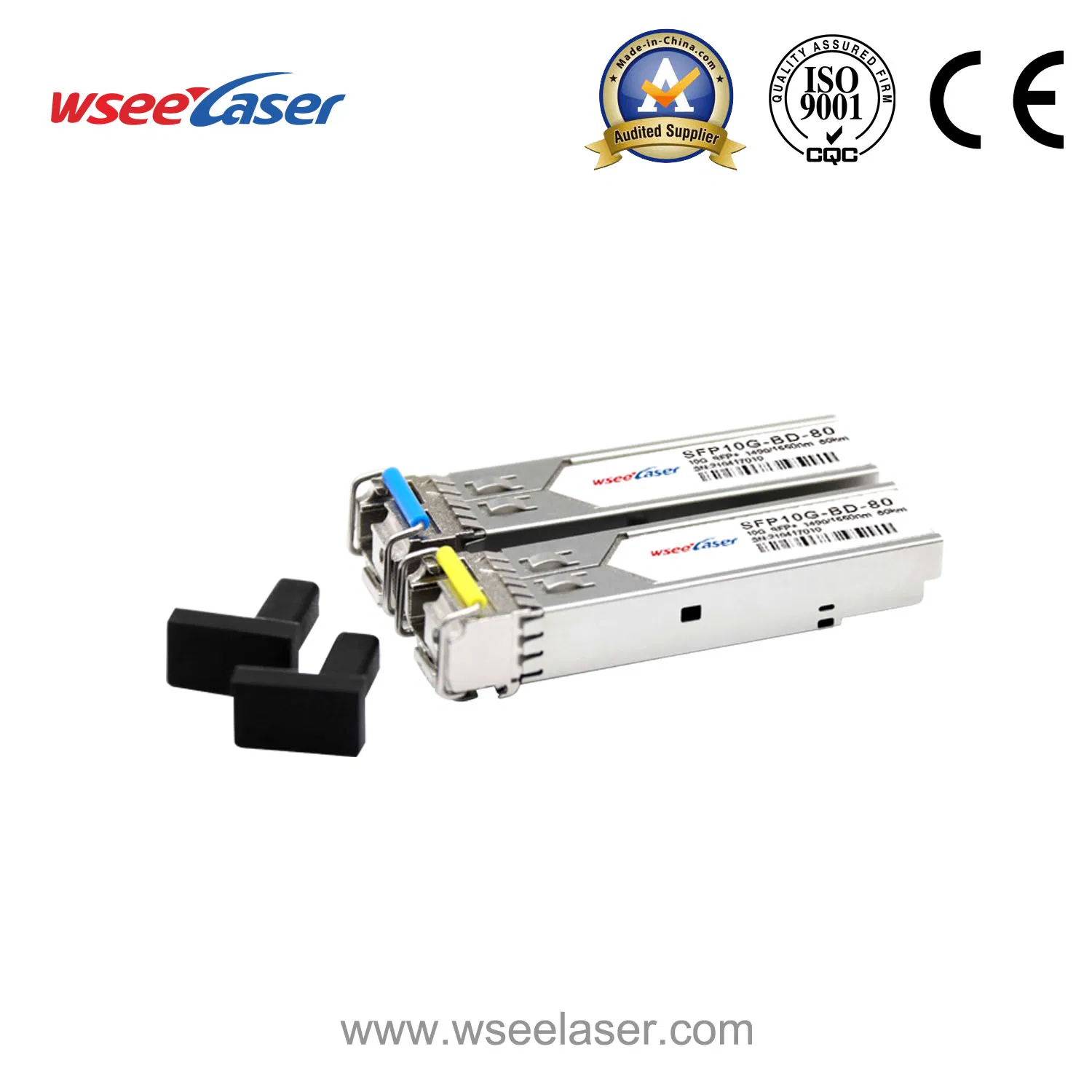

10GB/S Bidi 1490/1550nm SFP+ Zr 80km Optical Transceiver

Product Description

This series single mode transceiver is small form factor pluggable module for optical data communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The optical module is designed for single mode fiber and operates at a nominal wavelength of 1490nm or 1550nm; The transmitter section uses a EML laser, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.
SFP+ transceiver offer commercial and industrial operating temperature options.
10GB/S Bidi 1490/1550nm SFP+ Zr 80km Optical Transceiver

Transmitter Operating Characteristic-Optical, Electrical
Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Centre Wavelength	λ_C	1470	1490	1510	nm
Spectral Width	Pm	-	-	1	nm
Laser Off Power	Poff	-	-	-35	dBm	Note1
Average Optical Power	Pavg	0	-	5	dBm	Note1
Extinction Ratio	ER	9	-	-	dB	Note2
Relative Intensity Noise	RIN₁₂OMA	-	-	-128	dB/Hz
Side Mode Suppression Ratio	SMSR	30	-	-	dB
Operating Data Rate	Gb/s	2.4576	-	11.3	Gbps
Optical Eye Mask	%	5	-	-	%	Note2
Eye Diagram	IEEE Std 802.3-2005 10Gb Ethernet 10GBASE-LR compatible

Notes:
[1] The optical power is launched into 9/125µm SMF.
[2] Measured with a PRBS 2³¹ -1 test pattern @10.3125Gbps.

Receiver Operating Characteristic-Optical, Electrical
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Center Wavelength	λr	1530	1550	1565	nm
Receive Sensitivity In Average Power	Psen	-	-	-22	dBm	Note1
Los Assert	LosA	-35	-	-	dBm
Los Dessert	LosD	-	-	-23	dBm
Los Hysteresis	LosH	0.5	-	-	dB
Receiver Overload (P avg )	POL	-	-	-7	dBm	Note1
